| Mfr. #: | 3STR1630 |
|---|---|
| 製造商: | STMicroelectronics |
| 描述: | Bipolar Transistors - BJT Low Volt High Perf NPN Power Trans |
| 生命週期: | 製造商新產品 |
| 數據表: | 3STR1630 數據表 |
Product belongs to the - series. Digi-ReelR Alternate Packaging is the packaging method for this product TO-236-3, SC-59, SOT-23-3 Surface Mount mounting type Supplier device package: SOT-23-3 Transistor type: NPN Maximum current collector Ic is 6A . Maximum collector-emitter breakdown voltage of 30V DC current gain minimum (hFE) of Ic/Vce at 180 @ 500mA, 2V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 300mV @ 500mA, 5A
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

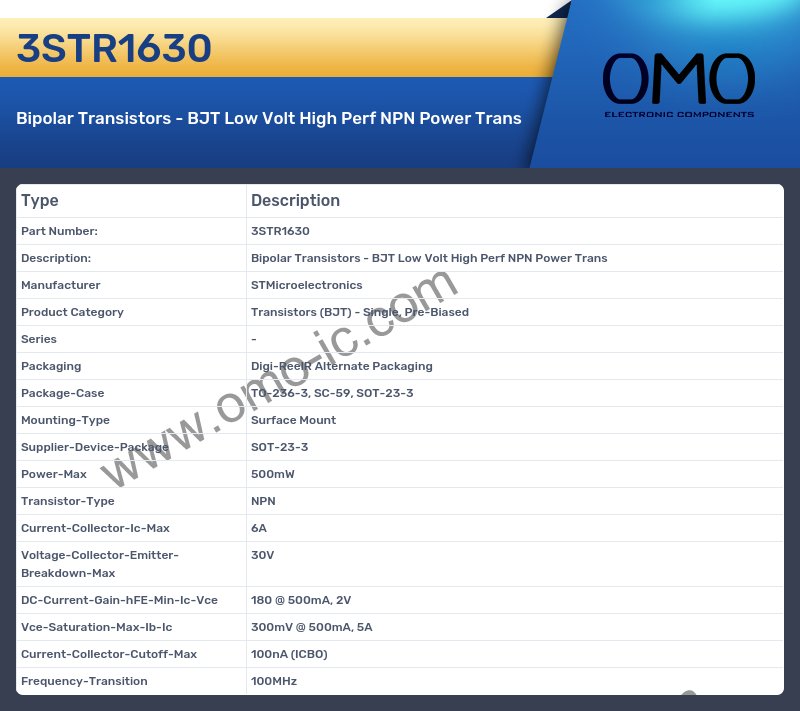

3STR1630 Specifications
A: What is the Series of the product?
Q: The Series of the product is -.
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-236-3, SC-59, SOT-23-3.
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is SOT-23-3.
A: Is the cutoff frequency of the product Transistor-Type?
Q: Yes, the product's Transistor-Type is indeed NPN
A: Is the cutoff frequency of the product Current-Collector-Ic-Max?
Q: Yes, the product's Current-Collector-Ic-Max is indeed 6A
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 30V
A: What is the DC-Current-Gain-hFE-Min-Ic-Vce of the product?
Q: The DC-Current-Gain-hFE-Min-Ic-Vce of the product is 180 @ 500mA, 2V.
A: Is the cutoff frequency of the product Vce-Saturation-Max-Ib-Ic?
Q: Yes, the product's Vce-Saturation-Max-Ib-Ic is indeed 300mV @ 500mA, 5A
