74ACT16623DL

74ACT16623DL Overview

Product belongs to the 74ACT series. This product is categorized as Standard Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 600300 mg SMD/SMT Mounting-Style 48-BSSOP (0.295", 7.50mm Width) Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Product function is Bus Transceiver. Number of channels: 16 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 48-SSOP 2 is 8. 2 element Transceiver, Non-Inverting logic type 8 bits per element Power-off control: 1.2 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting 80 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ACT logic type 7.3 ns at 5 V is 23 microseconds. CMOS is the output level. This product has an TTL for easy integration with other devices. High-Level-Output-Current of - 24 mA 24 mA low-level output current

74ACT16623DL Image

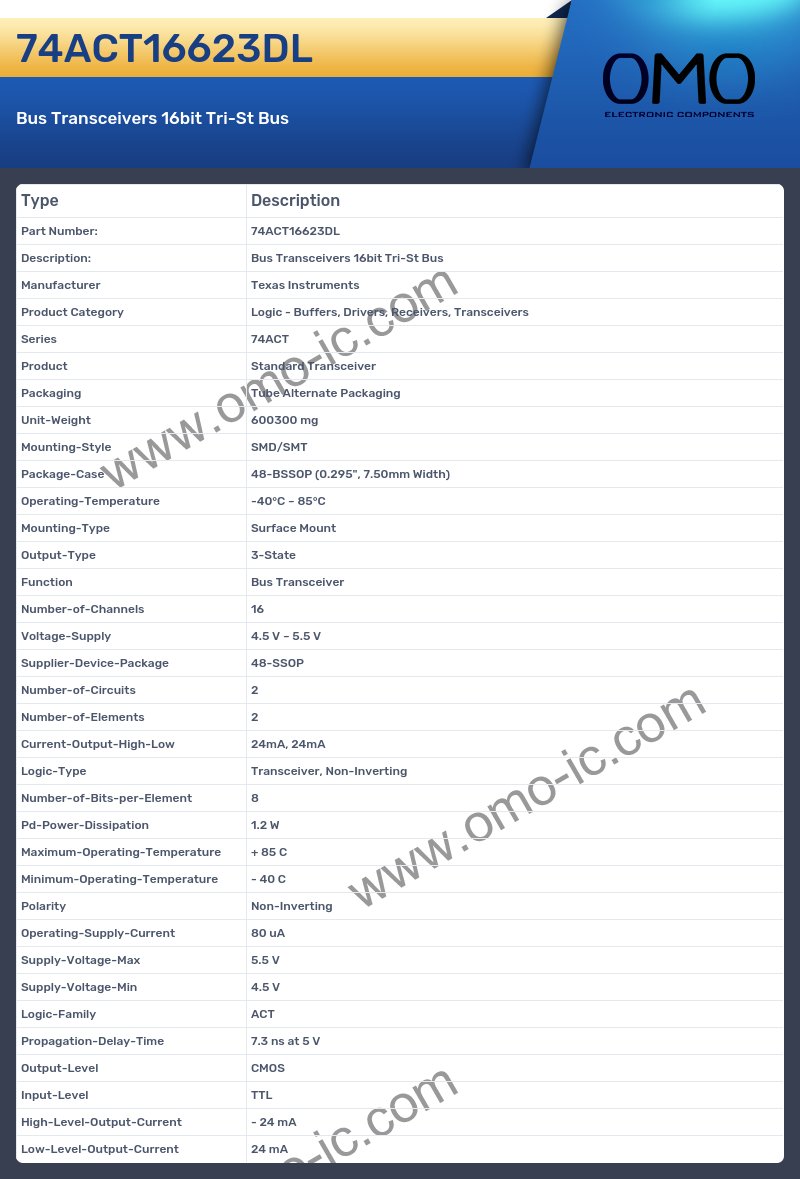

74ACT16623DL Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74ACT
• Product Standard Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 600300 mg
• Mounting-Style SMD/SMT
• Package-Case 48-BSSOP (0.295", 7.50mm Width)
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Function Bus Transceiver
• Number-of-Channels 16
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 48-SSOP
• Number-of-Circuits 2
• Number-of-Elements 2
• Current-Output-High-Low 24mA, 24mA
• Logic-Type Transceiver, Non-Inverting
• Number-of-Bits-per-Element 8
• Pd-Power-Dissipation 1.2 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Operating-Supply-Current 80 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family ACT
• Propagation-Delay-Time 7.3 ns at 5 V
• Output-Level CMOS
• Input-Level TTL
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
