74LCX00TTR

74LCX00TTR Overview

Product belongs to the 74LCX series. Digi-ReelR is the packaging method for this product 14-TSSOP (0.173", 4.40mm Width) Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 2 V ~ 3.6 V Supplier device package: 14-TSSOP 4 is 8. 10μA maximum quiescent current. NAND Gate logic type 0.8V is a Logic-Level-Low; 2V is the Logic-Level-High

74LCX00TTR Image

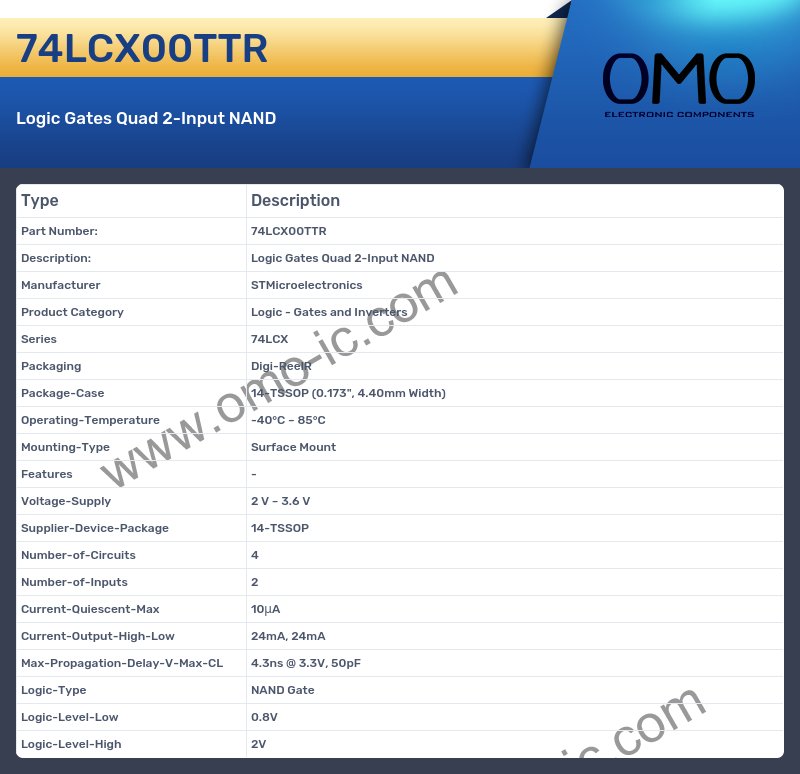

74LCX00TTR Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Gates and Inverters
• Series 74LCX
• Packaging Digi-ReelR
• Package-Case 14-TSSOP (0.173", 4.40mm Width)
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 2 V ~ 3.6 V
• Supplier-Device-Package 14-TSSOP
• Number-of-Circuits 4
• Number-of-Inputs 2
• Current-Quiescent-Max 10μA
• Current-Output-High-Low 24mA, 24mA
• Max-Propagation-Delay-V-Max-CL 4.3ns @ 3.3V, 50pF
• Logic-Type NAND Gate
• Logic-Level-Low 0.8V
• Logic-Level-High 2V
