| Mfr. #: | 74LCX244TTR |
|---|---|
| 製造商: | STMicroelectronics |
| 描述: | IC BUF NON-INVERT 3.6V 20TSSOP |
| 生命週期: | 製造商新產品 |
| 數據表: | 74LCX244TTR 數據表 |
Product belongs to the 74LCX series. Digi-ReelR is the packaging method for this product Weight of 0.006737 oz SMD/SMT Mounting-Style TSSOP-20 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Output-Type: 3-State Number of channels: 8 Voltage Supply Range: 2 V ~ 3.6 V Supplier device package: 20-TSSOP 2 element Buffer/Line Driver, Non-Inverting logic type 4 bits per element Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Polarity: Non-Inverting Maximum supply voltage of 3.6 V Minimum supply voltage is 2 V LCX logic type 8.2 ns at 2.7 V 7.1 ns at 3 V to 3.6 V is 23 microseconds. High-Level-Output-Current of - 24 mA 24 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 3 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

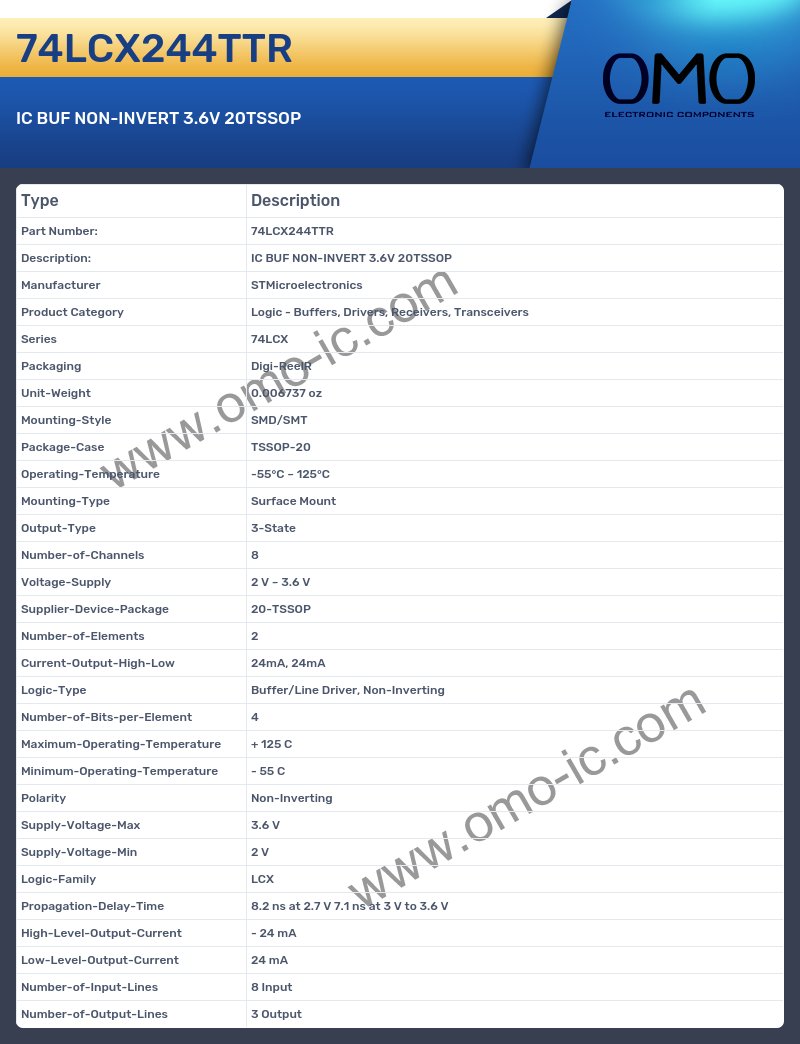

74LCX244TTR Specifications
