AD629BNZ

AD629BNZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. This product has a 86 dB of 50 dB, ensuring reliable signal acquisition. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 3.3 mm. 9.27 mm long Differential Amplifiers Supply Type: Dual Analog Devices is a trusted brand for quality electronics Maximum input voltage range of 18 V EVAL-CN0240-SDPZ is a versatile development platform for hardware and software Gain ratio is 1 V/V. 1. The maximum dual supply voltage is +/- 18 V. +/- 2.5 V minimum dual supply voltage 2.5 V to 18 V operating supply voltage range Differential Amplifiers product type This product has a 110 dB of 50 dB, providing reliable power supply noise rejection. 15 us settling time 50 of 100 Amplifier ICs as subcategory 1. 0.032805 oz of Unit Weight

AD629BNZ Image

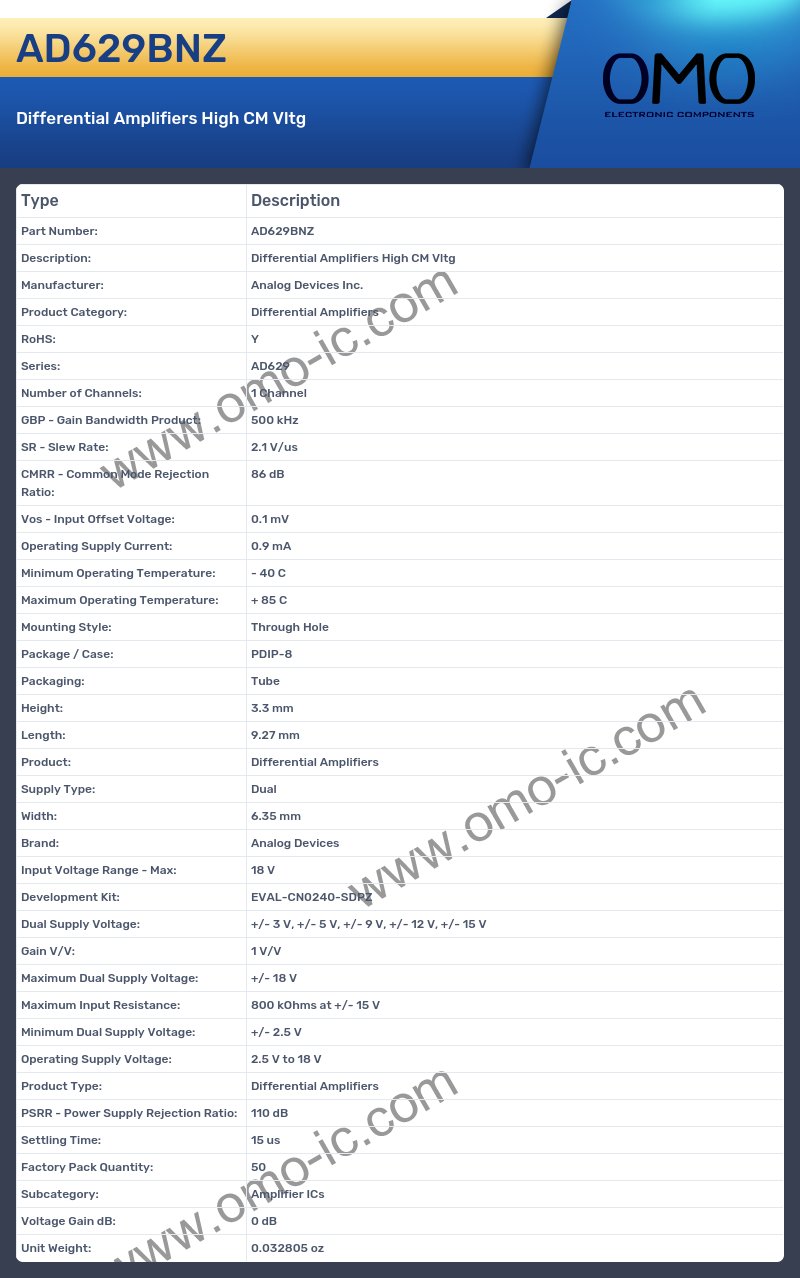

AD629BNZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Differential Amplifiers
• RoHS: Y
• Series: AD629
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 500 kHz
• SR - Slew Rate: 2.1 V/us
• CMRR - Common Mode Rejection Ratio: 86 dB
• Vos - Input Offset Voltage: 0.1 mV
• Operating Supply Current: 0.9 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Packaging: Tube
• Height: 3.3 mm
• Length: 9.27 mm
• Product: Differential Amplifiers
• Supply Type: Dual
• Width: 6.35 mm
• Brand: Analog Devices
• Input Voltage Range - Max: 18 V
• Development Kit: EVAL-CN0240-SDPZ
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
• Gain V/V: 1 V/V
• Maximum Dual Supply Voltage: +/- 18 V
• Maximum Input Resistance: 800 kOhms at +/- 15 V
• Minimum Dual Supply Voltage: +/- 2.5 V
• Operating Supply Voltage: 2.5 V to 18 V
• Product Type: Differential Amplifiers
• PSRR - Power Supply Rejection Ratio: 110 dB
• Settling Time: 15 us
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Voltage Gain dB: 0 dB
• Unit Weight: 0.032805 oz
