AD7224LN

AD7224LN Overview

This product is manufactured by Analog Devices Inc.. The sampling rate of this product is 143 kS/s. This product is equipped with 1 Channel for efficient performance. 7 us settling time Interface Type: Parallel External is the reference type. Supply Voltage - Max: 15.75 V, 16.5 V Supply Voltage - Min: 14.25 V, 11.4 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. PDIP-18 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 3.56 mm. 23.12 mm long The output type is Voltage. This device belongs to the General Purpose type. R-2R architecture Analog Devices is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 0.5 LSB 14.25 V to 15.75 V, 11.4 V to 16.5 V operating supply voltage range 450 mW DACs - Digital to Analog Converters product type 20 of 100 Data Converter ICs as subcategory 1. 0.044801 oz of Unit Weight

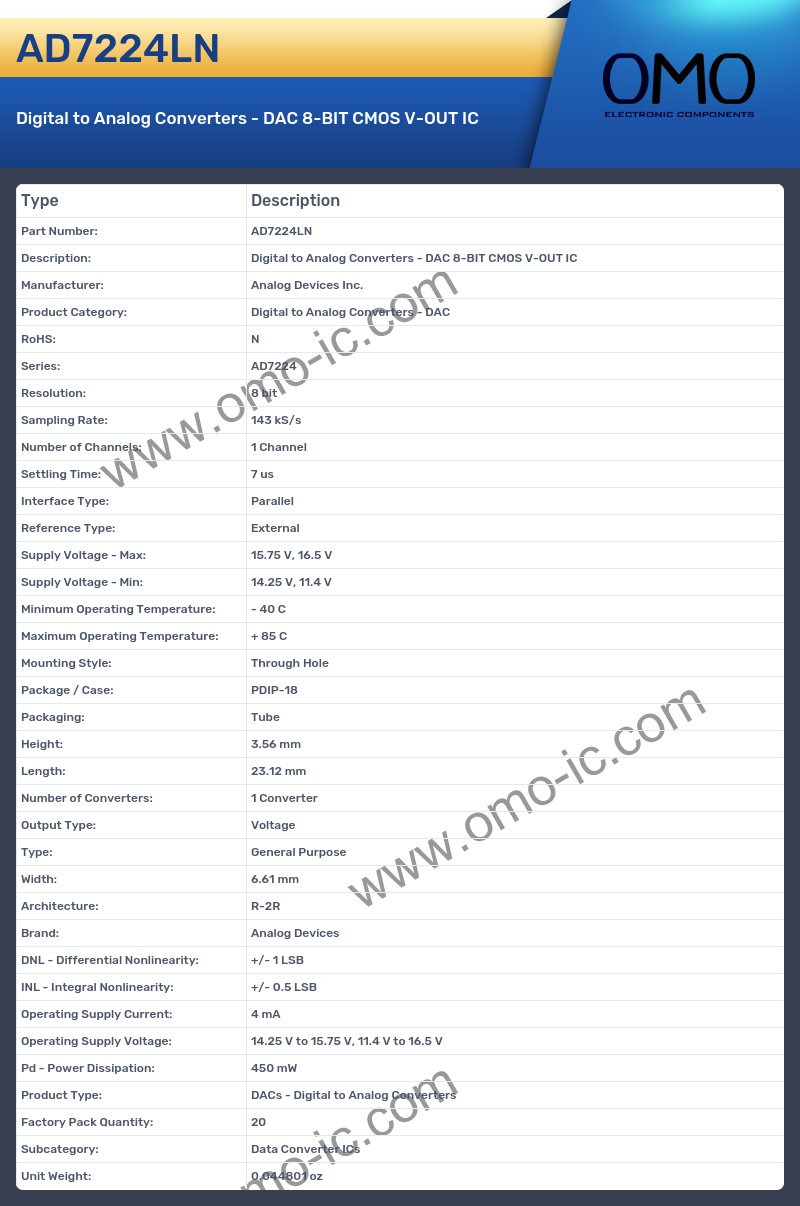

AD7224LN Image

AD7224LN Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: N
• Series: AD7224
• Resolution: 8 bit
• Sampling Rate: 143 kS/s
• Number of Channels: 1 Channel
• Settling Time: 7 us
• Interface Type: Parallel
• Reference Type: External
• Supply Voltage - Max: 15.75 V, 16.5 V
• Supply Voltage - Min: 14.25 V, 11.4 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: PDIP-18
• Packaging: Tube
• Height: 3.56 mm
• Length: 23.12 mm
• Number of Converters: 1 Converter
• Output Type: Voltage
• Type: General Purpose
• Width: 6.61 mm
• Architecture: R-2R
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 1 LSB
• INL - Integral Nonlinearity: +/- 0.5 LSB
• Operating Supply Current: 4 mA
• Operating Supply Voltage: 14.25 V to 15.75 V, 11.4 V to 16.5 V
• Pd - Power Dissipation: 450 mW
• Product Type: DACs - Digital to Analog Converters
• Factory Pack Quantity: 20
• Subcategory: Data Converter ICs
• Unit Weight: 0.044801 oz
