AD7291TCPZ-EP

AD7291TCPZ-EP Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. LQFP-32 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 10 MS/s. Differential input type Interface Type: Parallel Pipeline architecture External is the reference type. This product requires an 4.75 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tray packaging for easy dispensing The height of the product is 1.4 mm. 4 V Input Voltage 7 mm long This device belongs to the S/H ADC type. Texas Instruments is a trusted brand for quality electronics The +/- 0.3 LSB, ensuring accurate and precise analog-to-digital conversion. 2.9 % FSR is 0.2%. INL is within 1.5 LSB Yes regarding Moisture Sensitivity 5 V operating supply voltage range ADCs - Analog to Digital Converters product type 250 of 100 Data Converter ICs as subcategory 1. 0.027302 oz of Unit Weight

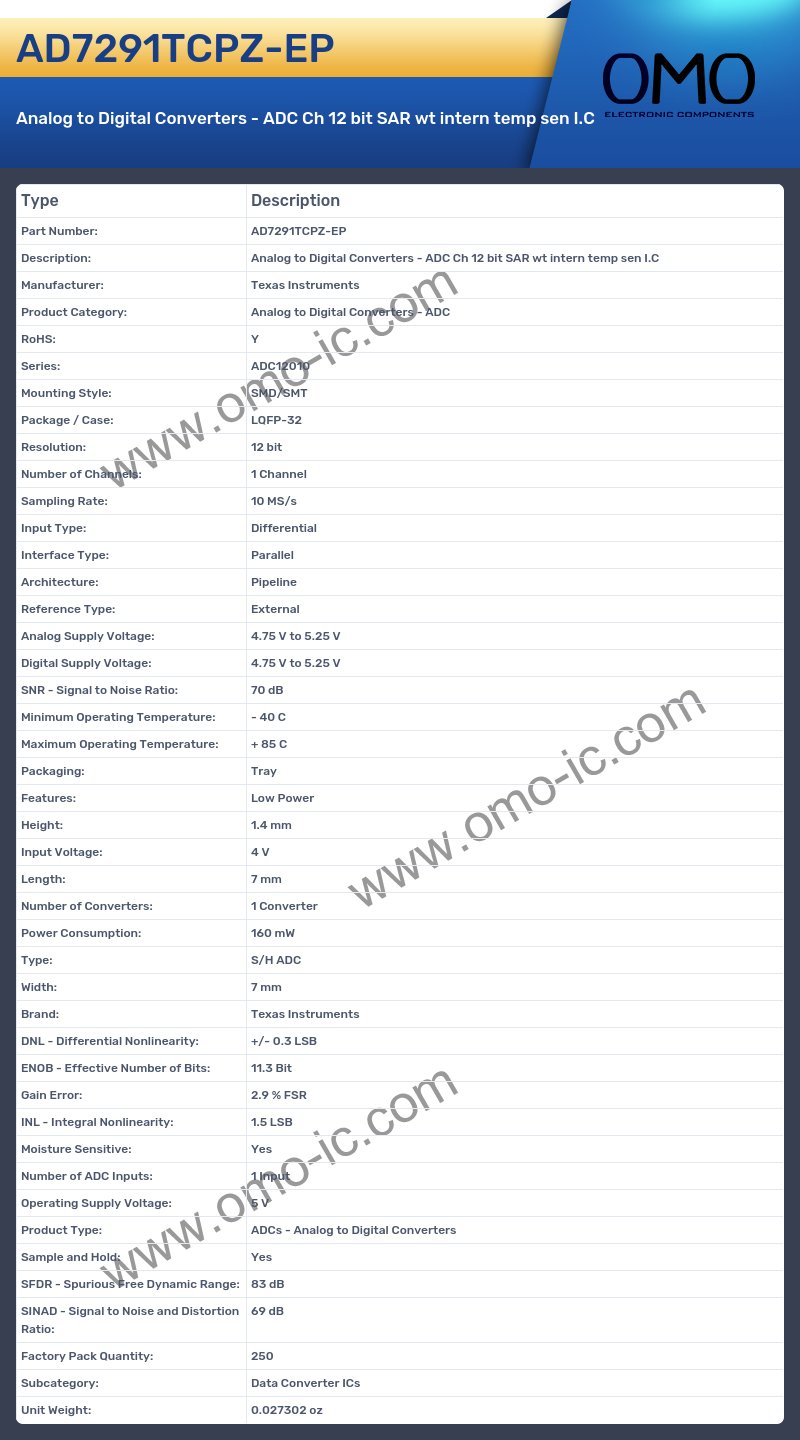

AD7291TCPZ-EP Image

AD7291TCPZ-EP Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADC12010
• Mounting Style: SMD/SMT
• Package / Case: LQFP-32
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 10 MS/s
• Input Type: Differential
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External
• Analog Supply Voltage: 4.75 V to 5.25 V
• Digital Supply Voltage: 4.75 V to 5.25 V
• SNR - Signal to Noise Ratio: 70 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tray
• Features: Low Power
• Height: 1.4 mm
• Input Voltage: 4 V
• Length: 7 mm
• Number of Converters: 1 Converter
• Power Consumption: 160 mW
• Type: S/H ADC
• Width: 7 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: +/- 0.3 LSB
• ENOB - Effective Number of Bits: 11.3 Bit
• Gain Error: 2.9 % FSR
• INL - Integral Nonlinearity: 1.5 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 5 V
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• SFDR - Spurious Free Dynamic Range: 83 dB
• SINAD - Signal to Noise and Distortion Ratio: 69 dB
• Factory Pack Quantity: 250
• Subcategory: Data Converter ICs
• Unit Weight: 0.027302 oz
