AD7305BRU

AD7305BRU Overview

This product is manufactured by Analog Devices Inc.. The sampling rate of this product is 1 MS/s. This product is equipped with 4 Channel for efficient performance. 1 us settling time Interface Type: Parallel External is the reference type. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-20 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.05 mm. 6.5 mm long The output type is Voltage. This device belongs to the General Purpose type. R-2R architecture Analog Devices is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 1 LSB 2.7 V to 5.5 V operating supply voltage range 60 mW DACs - Digital to Analog Converters product type 75 of 100 Data Converter ICs as subcategory 1. 0.006737 oz of Unit Weight

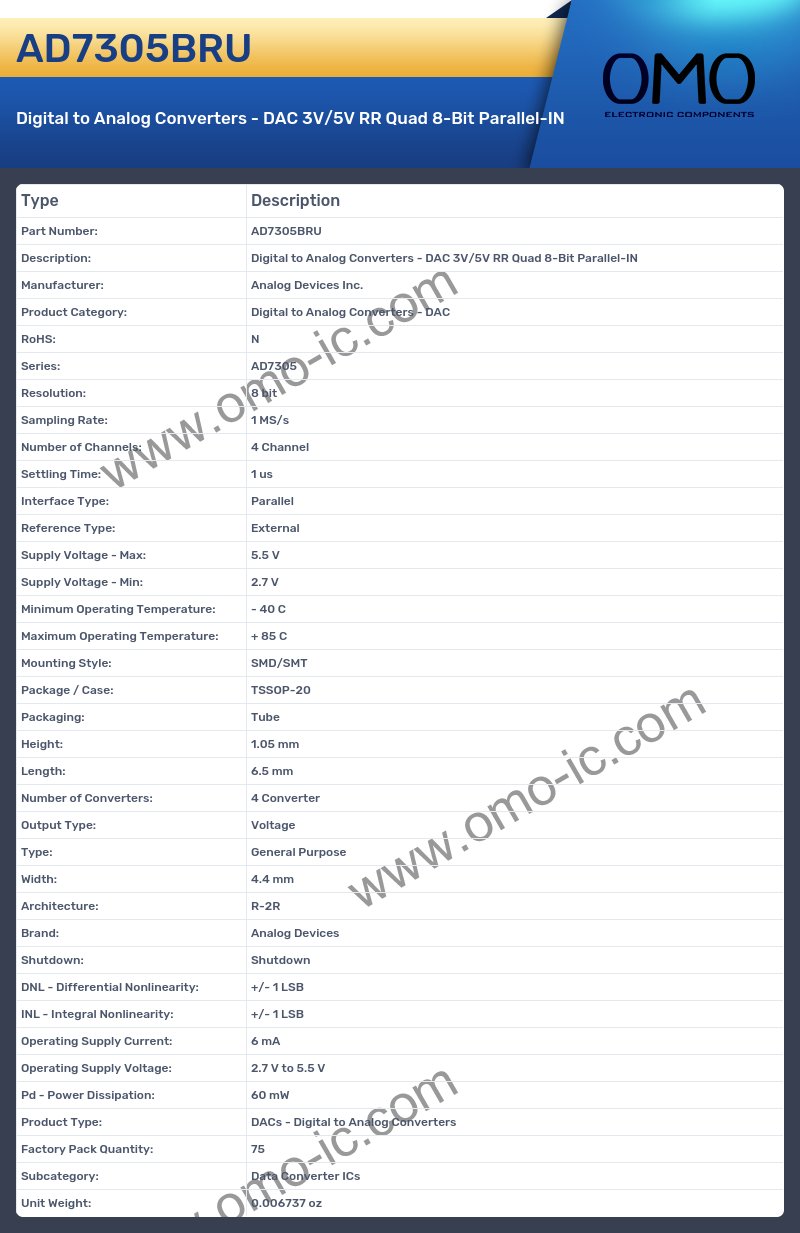

AD7305BRU Image

AD7305BRU Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: N
• Series: AD7305
• Resolution: 8 bit
• Sampling Rate: 1 MS/s
• Number of Channels: 4 Channel
• Settling Time: 1 us
• Interface Type: Parallel
• Reference Type: External
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.7 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-20
• Packaging: Tube
• Height: 1.05 mm
• Length: 6.5 mm
• Number of Converters: 4 Converter
• Output Type: Voltage
• Type: General Purpose
• Width: 4.4 mm
• Architecture: R-2R
• Brand: Analog Devices
• Shutdown: Shutdown
• DNL - Differential Nonlinearity: +/- 1 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Operating Supply Current: 6 mA
• Operating Supply Voltage: 2.7 V to 5.5 V
• Pd - Power Dissipation: 60 mW
• Product Type: DACs - Digital to Analog Converters
• Factory Pack Quantity: 75
• Subcategory: Data Converter ICs
• Unit Weight: 0.006737 oz
