AD746JNZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 2 Channel for efficient performance. This product has a 88 dB of 50 dB, ensuring reliable signal acquisition. This product has an 350 pA of 5 uA for precise signal processing. Supply Voltage - Max: 18 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. This product does not have a No Shutdown feature, ensuring continuous operation. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 3.43 mm. 9.27 mm long Precision Amplifiers This device belongs to the General Purpose Amplifier type. Analog Devices is a trusted brand for quality electronics Maximum input voltage range of 14.5 V AD746JR-EBZ is a versatile development platform for hardware and software 1. The maximum dual supply voltage is +/- 18 V. +/- 4.5 V minimum dual supply voltage 4.5 V to 18 V operating supply voltage range 500 mW (1/2 W) Precision Amplifiers product type This product has a 95 dB of 50 dB, providing reliable power supply noise rejection. 50 of 100 Amplifier ICs as subcategory 1. 0.032805 oz of Unit Weight

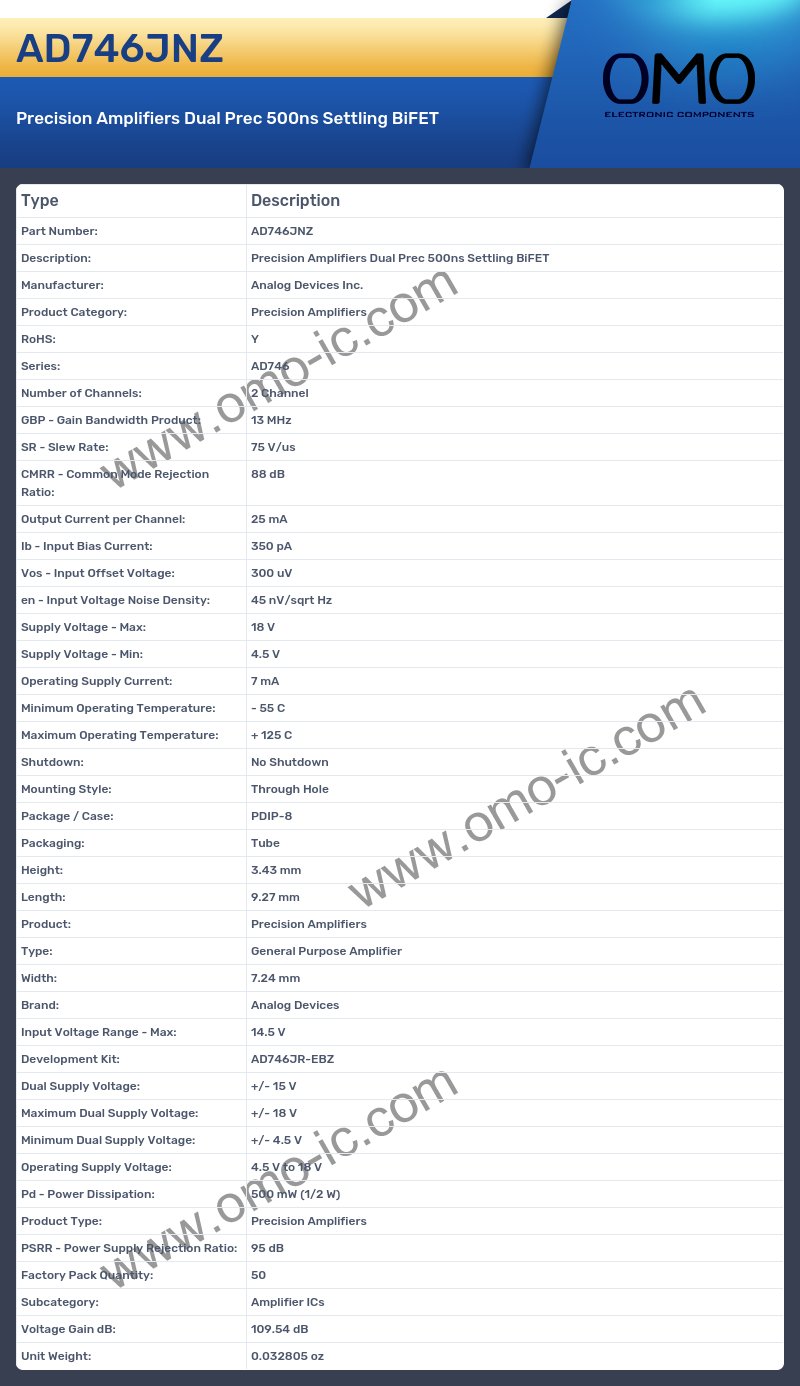

AD746JNZ Image

AD746JNZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Precision Amplifiers
• RoHS: Y
• Series: AD746
• Number of Channels: 2 Channel
• GBP - Gain Bandwidth Product: 13 MHz
• SR - Slew Rate: 75 V/us
• CMRR - Common Mode Rejection Ratio: 88 dB
• Output Current per Channel: 25 mA
• Ib - Input Bias Current: 350 pA
• Vos - Input Offset Voltage: 300 uV
• en - Input Voltage Noise Density: 45 nV/sqrt Hz
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 4.5 V
• Operating Supply Current: 7 mA
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Shutdown: No Shutdown
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Packaging: Tube
• Height: 3.43 mm
• Length: 9.27 mm
• Product: Precision Amplifiers
• Type: General Purpose Amplifier
• Width: 7.24 mm
• Brand: Analog Devices
• Input Voltage Range - Max: 14.5 V
• Development Kit: AD746JR-EBZ
• Dual Supply Voltage: +/- 15 V
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Operating Supply Voltage: 4.5 V to 18 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Precision Amplifiers
• PSRR - Power Supply Rejection Ratio: 95 dB
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Voltage Gain dB: 109.54 dB
• Unit Weight: 0.032805 oz
