AD746JRZ

AD746JRZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 2 Channel for efficient performance. This product has a 88 dB of 50 dB, ensuring reliable signal acquisition. This product has an 350 pA of 5 uA for precise signal processing. Supply Voltage - Max: 18 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. This product does not have a No Shutdown feature, ensuring continuous operation. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.5 mm (Max). 5 mm (Max) long Precision Amplifiers This device belongs to the General Purpose Amplifier type. Analog Devices is a trusted brand for quality electronics Maximum input voltage range of 14.5 V AD746JR-EBZ is a versatile development platform for hardware and software 1. The maximum dual supply voltage is +/- 18 V. +/- 4.5 V minimum dual supply voltage 4.5 V to 18 V operating supply voltage range 500 mW (1/2 W) Precision Amplifiers product type This product has a 95 dB of 50 dB, providing reliable power supply noise rejection. 98 of 100 Amplifier ICs as subcategory 1. 0.019048 oz of Unit Weight

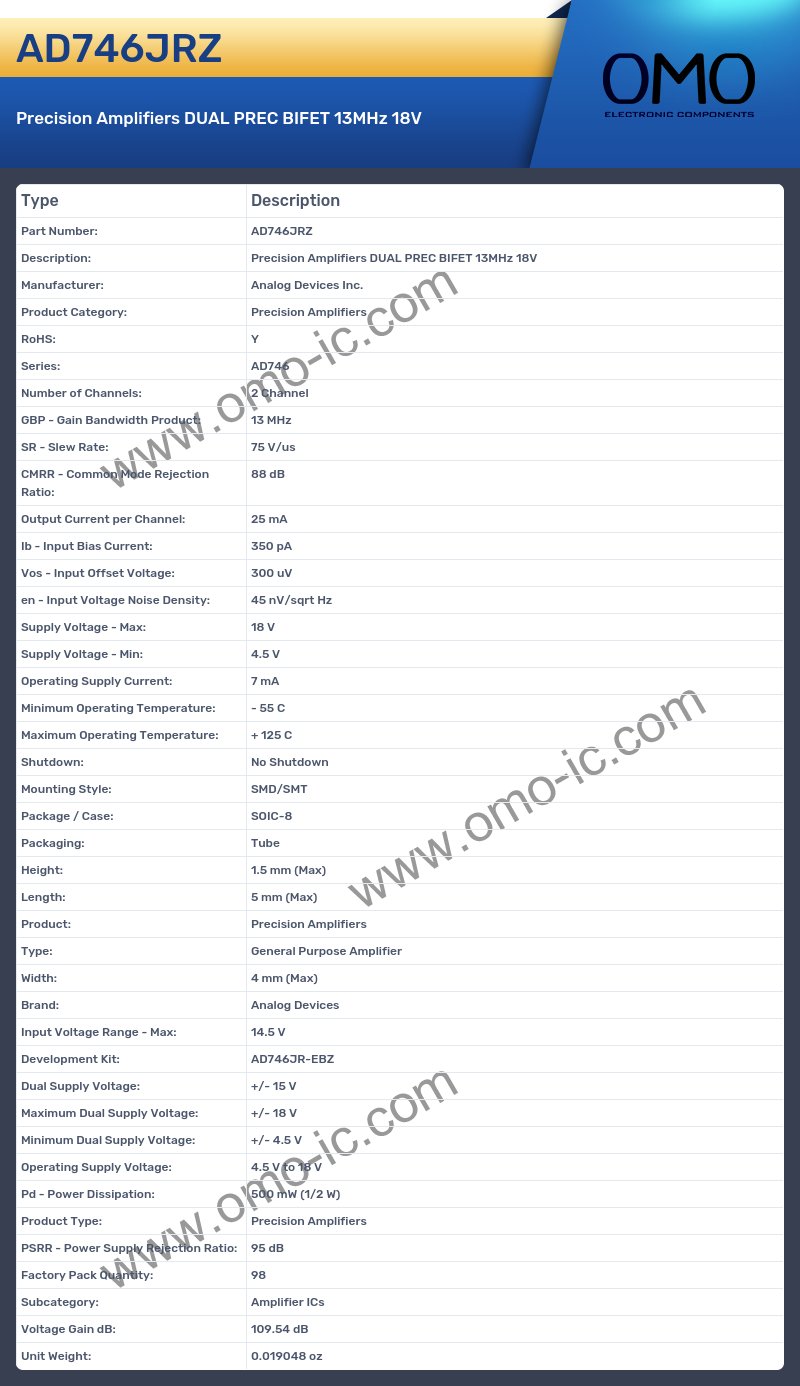

AD746JRZ Image

AD746JRZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Precision Amplifiers
• RoHS: Y
• Series: AD746
• Number of Channels: 2 Channel
• GBP - Gain Bandwidth Product: 13 MHz
• SR - Slew Rate: 75 V/us
• CMRR - Common Mode Rejection Ratio: 88 dB
• Output Current per Channel: 25 mA
• Ib - Input Bias Current: 350 pA
• Vos - Input Offset Voltage: 300 uV
• en - Input Voltage Noise Density: 45 nV/sqrt Hz
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 4.5 V
• Operating Supply Current: 7 mA
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Shutdown: No Shutdown
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Packaging: Tube
• Height: 1.5 mm (Max)
• Length: 5 mm (Max)
• Product: Precision Amplifiers
• Type: General Purpose Amplifier
• Width: 4 mm (Max)
• Brand: Analog Devices
• Input Voltage Range - Max: 14.5 V
• Development Kit: AD746JR-EBZ
• Dual Supply Voltage: +/- 15 V
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Operating Supply Voltage: 4.5 V to 18 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Precision Amplifiers
• PSRR - Power Supply Rejection Ratio: 95 dB
• Factory Pack Quantity: 98
• Subcategory: Amplifier ICs
• Voltage Gain dB: 109.54 dB
• Unit Weight: 0.019048 oz
