AD7578BQ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. CDIP-24 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 10 kS/s. Single-Ended input type Interface Type: Parallel SAR architecture External is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 3.56 mm. 5 V Input Voltage 32.51 mm long The output type is TTL. Analog Devices is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 0.25 LSB is 0.2%. 15 V operating supply voltage range 75 mW ADCs - Analog to Digital Converters product type 15 of 100 Data Converter ICs as subcategory

AD7578BQ Image

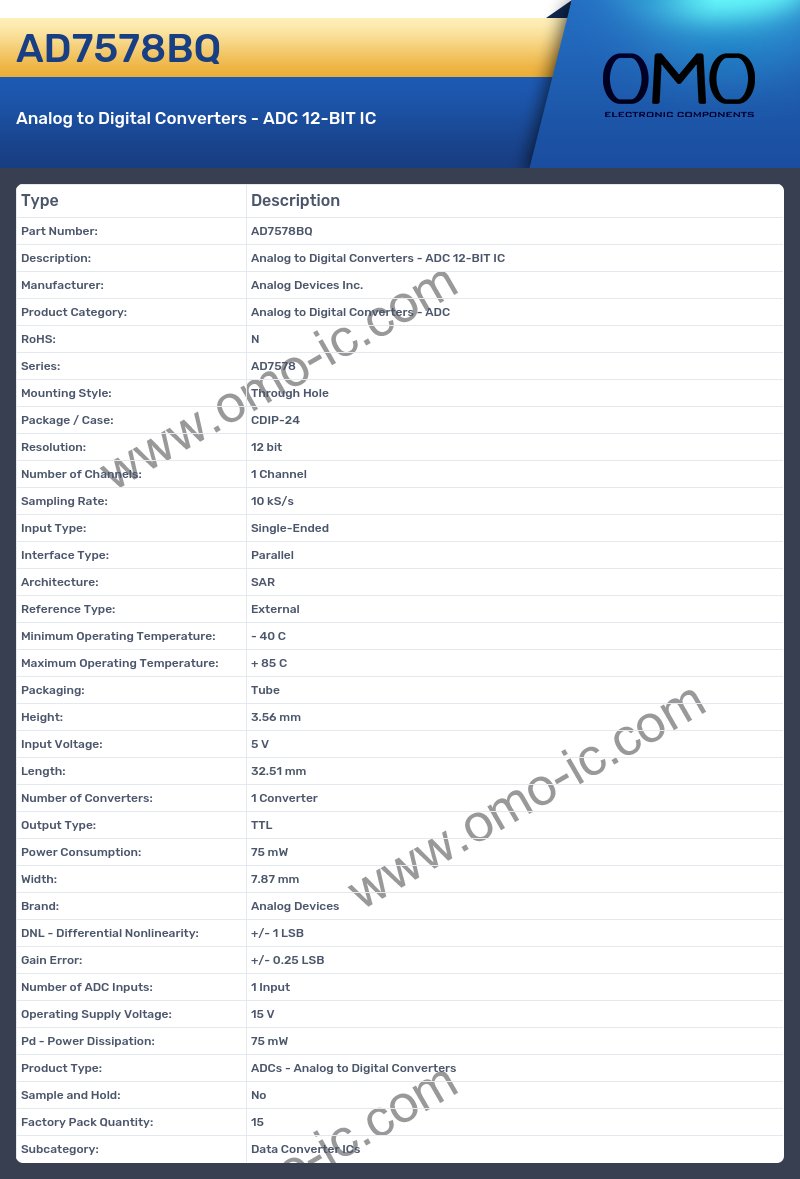

AD7578BQ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: AD7578
• Mounting Style: Through Hole
• Package / Case: CDIP-24
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 10 kS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: SAR
• Reference Type: External
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 3.56 mm
• Input Voltage: 5 V
• Length: 32.51 mm
• Number of Converters: 1 Converter
• Output Type: TTL
• Power Consumption: 75 mW
• Width: 7.87 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 1 LSB
• Gain Error: +/- 0.25 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 15 V
• Pd - Power Dissipation: 75 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: No
• Factory Pack Quantity: 15
• Subcategory: Data Converter ICs
