AD7703BNZ

AD7703BNZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. PDIP-20 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 4 kS/s. Single-Ended input type Interface Type: SPI Sigma-Delta architecture External is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 4.57 mm. 2.5 V, +/- 2.5 V Input Voltage 7.11 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The +/- 0.5 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 32 LSB is 0.2%. INL is within +/- 0.0015 % FSR 5 V operating supply voltage range 37 mW ADCs - Analog to Digital Converters product type 18 of 100 Data Converter ICs as subcategory 1. 0.079719 oz of Unit Weight

AD7703BNZ Image

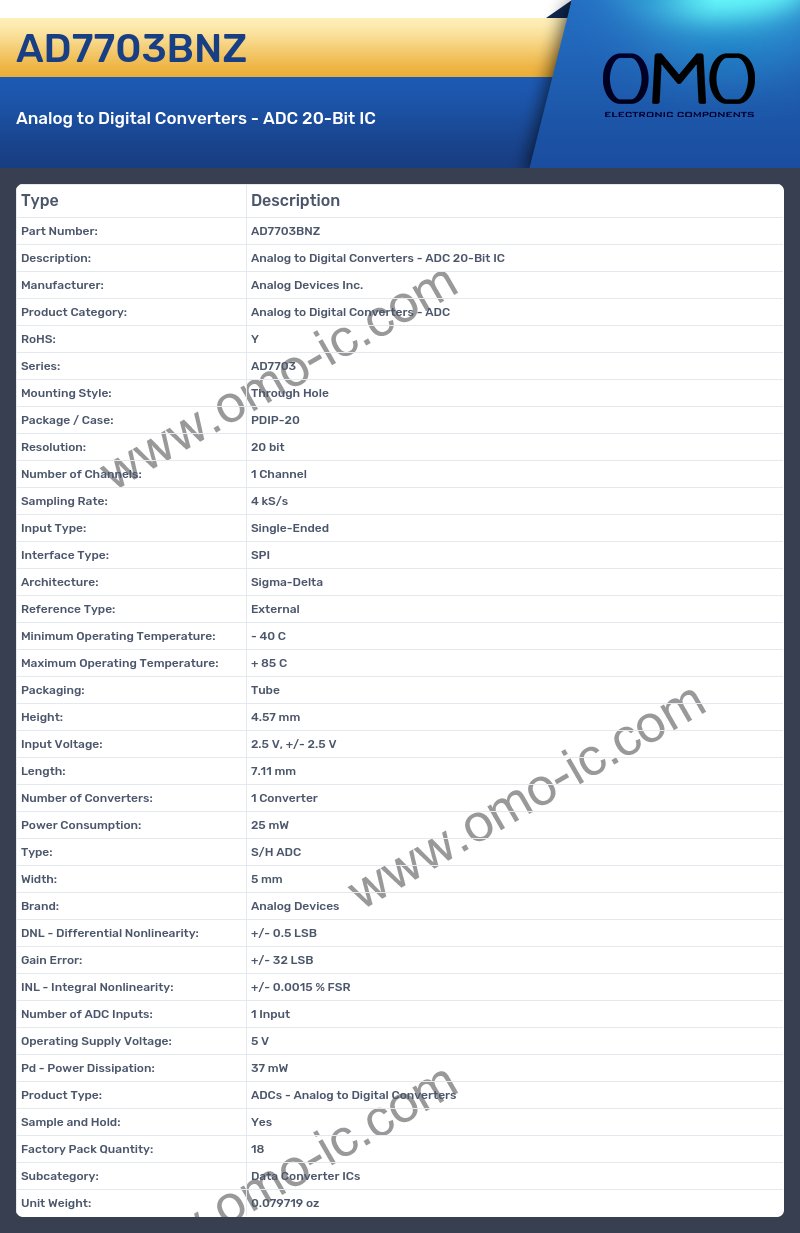

AD7703BNZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7703
• Mounting Style: Through Hole
• Package / Case: PDIP-20
• Resolution: 20 bit
• Number of Channels: 1 Channel
• Sampling Rate: 4 kS/s
• Input Type: Single-Ended
• Interface Type: SPI
• Architecture: Sigma-Delta
• Reference Type: External
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 4.57 mm
• Input Voltage: 2.5 V, +/- 2.5 V
• Length: 7.11 mm
• Number of Converters: 1 Converter
• Power Consumption: 25 mW
• Type: S/H ADC
• Width: 5 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 0.5 LSB
• Gain Error: +/- 32 LSB
• INL - Integral Nonlinearity: +/- 0.0015 % FSR
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 37 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 18
• Subcategory: Data Converter ICs
• Unit Weight: 0.079719 oz
