AD7709BRUZ

AD7709BRUZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. TSSOP-24 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. The sampling rate of this product is 105 S/s. Differential/Pseudo-Differential input type Interface Type: Serial, 3-Wire, SPI Sigma-Delta architecture External is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.05 mm (Max). +/- 2.56 V Input Voltage 7.8 mm long Analog to Digital Converters Analog Devices is a trusted brand for quality electronics +/- 0.75 LSB is 0.2%. INL is within +/- 30 ppm of FSR 5 V operating supply voltage range 8.8 mW ADCs - Analog to Digital Converters product type 62 of 100 Data Converter ICs as subcategory 1. 0.007478 oz of Unit Weight

AD7709BRUZ Image

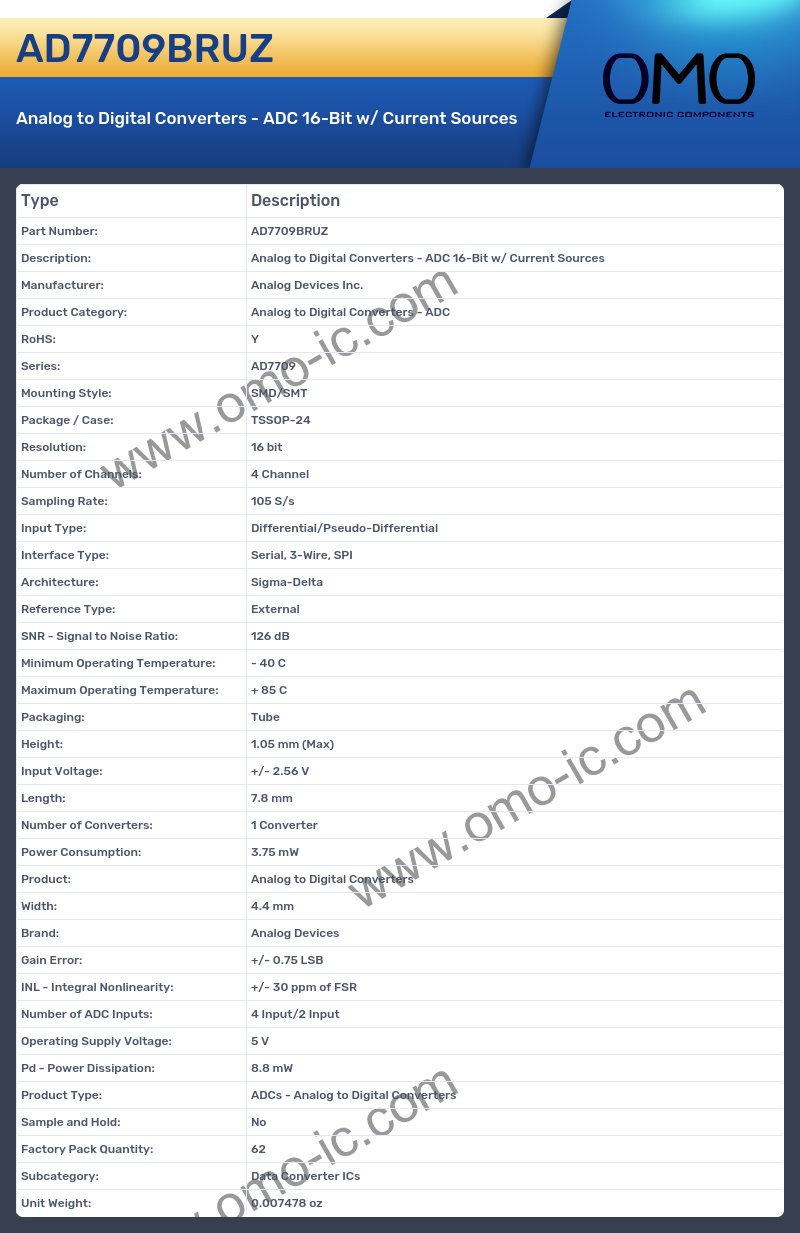

AD7709BRUZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7709
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-24
• Resolution: 16 bit
• Number of Channels: 4 Channel
• Sampling Rate: 105 S/s
• Input Type: Differential/Pseudo-Differential
• Interface Type: Serial, 3-Wire, SPI
• Architecture: Sigma-Delta
• Reference Type: External
• SNR - Signal to Noise Ratio: 126 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 1.05 mm (Max)
• Input Voltage: +/- 2.56 V
• Length: 7.8 mm
• Number of Converters: 1 Converter
• Power Consumption: 3.75 mW
• Product: Analog to Digital Converters
• Width: 4.4 mm
• Brand: Analog Devices
• Gain Error: +/- 0.75 LSB
• INL - Integral Nonlinearity: +/- 30 ppm of FSR
• Number of ADC Inputs: 4 Input/2 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 8.8 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: No
• Factory Pack Quantity: 62
• Subcategory: Data Converter ICs
• Unit Weight: 0.007478 oz
