AD790SQ

AD790SQ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. CDIP-8 package/case type is utilized by this product. The comparator type of this product is Precision with Latch for versatile use. This product is equipped with 1 Channel for efficient performance. The output type is CMOS, TTL. This product has an 5 uA of 5 uA for precise signal processing. Supply Voltage - Max: 7 V Supply Voltage - Min: 4.7 V 45 ns response time The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 3.56 mm (Max). 10.29 mm (Max) long Analog Comparators Supply Type: Single, Dual This device belongs to the Voltage Comparator type. Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. This product has a 95 dB of 50 dB, ensuring reliable signal acquisition. 1. The maximum dual supply voltage is +/- 16.5 V. +/- 2.35 V minimum dual supply voltage 5 V operating supply voltage range 500 mW (1/2 W) Analog Comparators product type The propagation delay time is 45 ns. This product has a 90 dB of 50 dB, providing reliable power supply noise rejection. 48 of 100 Amplifier ICs as subcategory 1. 0.740788 oz of Unit Weight

AD790SQ Image

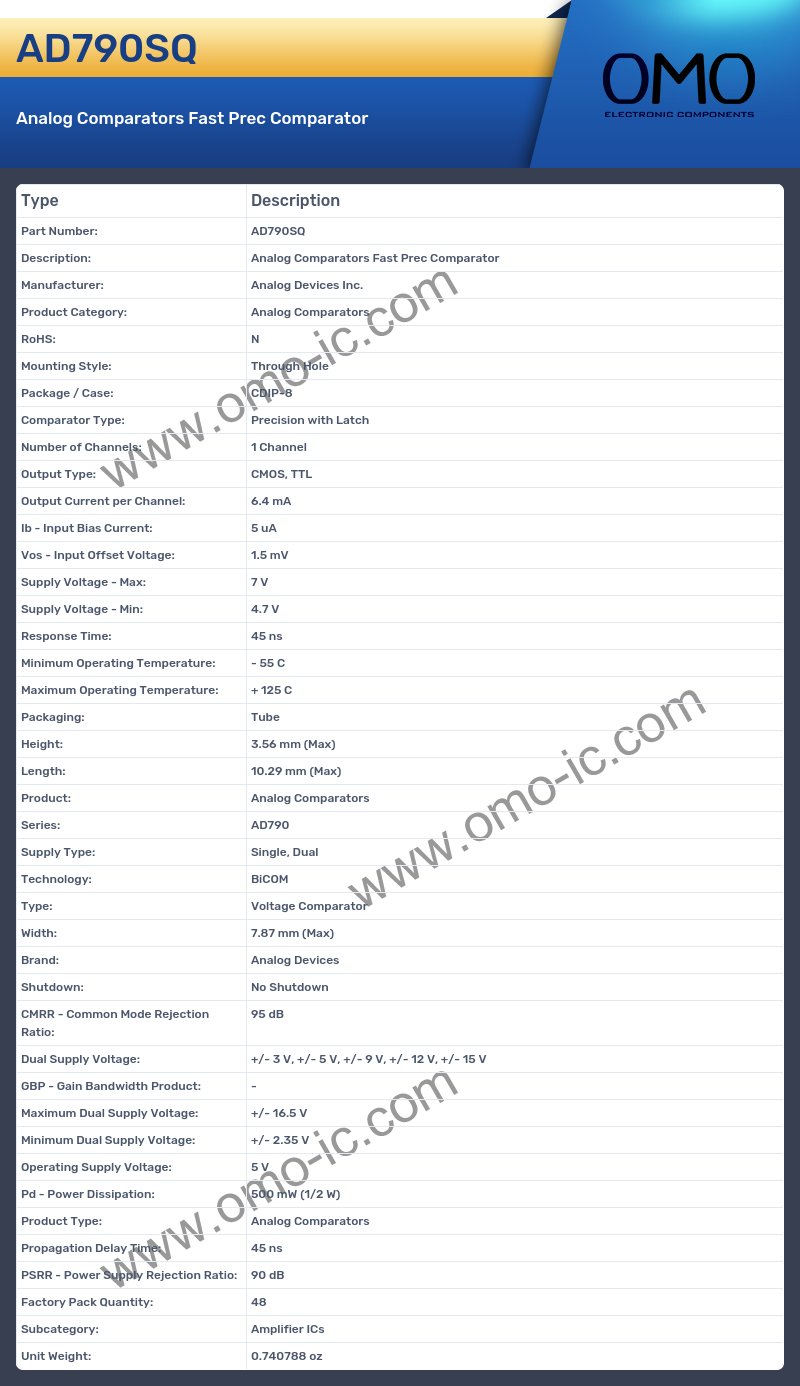

AD790SQ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog Comparators
• RoHS: N
• Mounting Style: Through Hole
• Package / Case: CDIP-8
• Comparator Type: Precision with Latch
• Number of Channels: 1 Channel
• Output Type: CMOS, TTL
• Output Current per Channel: 6.4 mA
• Ib - Input Bias Current: 5 uA
• Vos - Input Offset Voltage: 1.5 mV
• Supply Voltage - Max: 7 V
• Supply Voltage - Min: 4.7 V
• Response Time: 45 ns
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Height: 3.56 mm (Max)
• Length: 10.29 mm (Max)
• Product: Analog Comparators
• Series: AD790
• Supply Type: Single, Dual
• Technology: BiCOM
• Type: Voltage Comparator
• Width: 7.87 mm (Max)
• Brand: Analog Devices
• Shutdown: No Shutdown
• CMRR - Common Mode Rejection Ratio: 95 dB
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
• GBP - Gain Bandwidth Product: -
• Maximum Dual Supply Voltage: +/- 16.5 V
• Minimum Dual Supply Voltage: +/- 2.35 V
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Analog Comparators
• Propagation Delay Time: 45 ns
• PSRR - Power Supply Rejection Ratio: 90 dB
• Factory Pack Quantity: 48
• Subcategory: Amplifier ICs
• Unit Weight: 0.740788 oz
