AD9289BBC Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. BGA-64 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. The sampling rate of this product is 65 MS/s. Differential input type Interface Type: Serial Pipeline architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tray packaging for easy dispensing The height of the product is 1.21 mm. 1 Vp-p/2 Vp-p Input Voltage 8 mm long The output type is LVDS. This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The +/- 0.6 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 2.5 %FSR is 0.2%. INL is within +/- 0.6 LSB Yes regarding Moisture Sensitivity 3.3 V operating supply voltage range 550 mW ADCs - Analog to Digital Converters product type 348 of 100 Data Converter ICs as subcategory 1. 0.006004 oz of Unit Weight

AD9289BBC Image

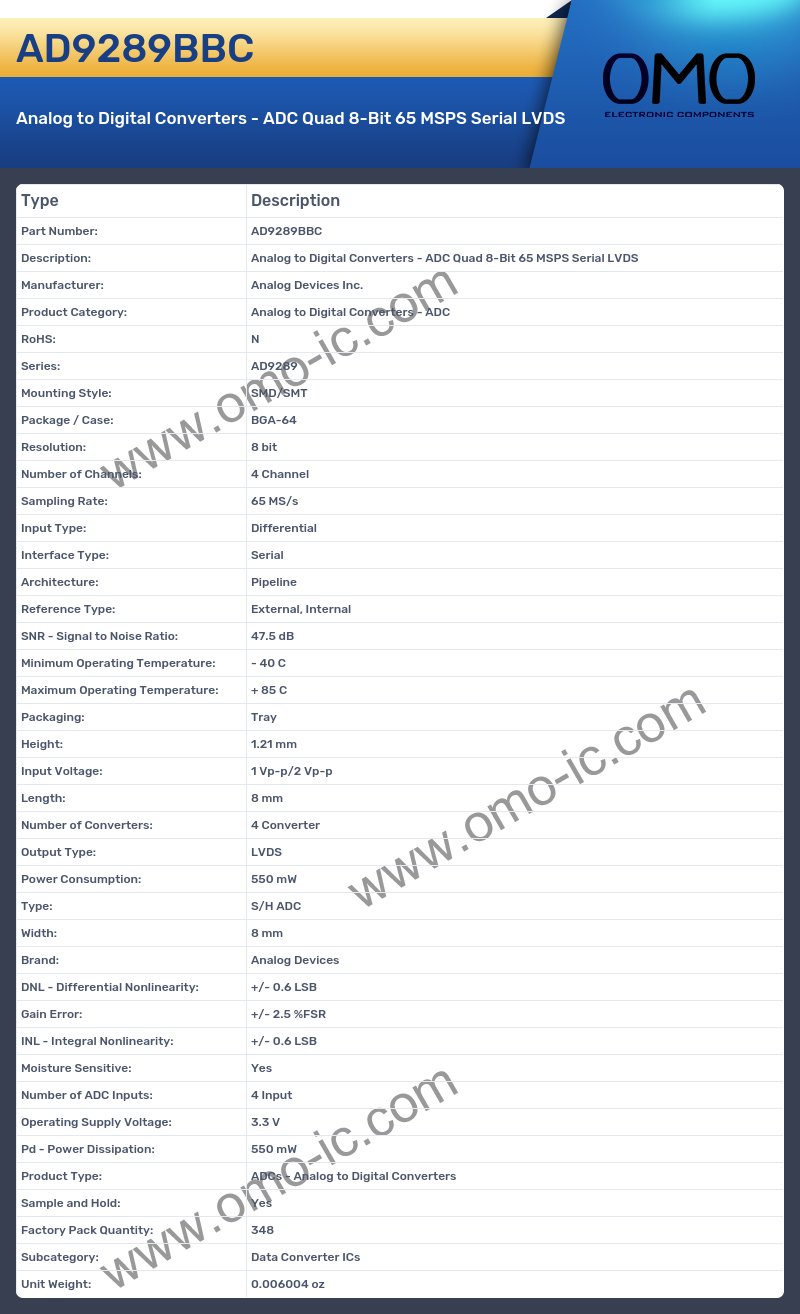

AD9289BBC Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: AD9289
• Mounting Style: SMD/SMT
• Package / Case: BGA-64
• Resolution: 8 bit
• Number of Channels: 4 Channel
• Sampling Rate: 65 MS/s
• Input Type: Differential
• Interface Type: Serial
• Architecture: Pipeline
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 47.5 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tray
• Height: 1.21 mm
• Input Voltage: 1 Vp-p/2 Vp-p
• Length: 8 mm
• Number of Converters: 4 Converter
• Output Type: LVDS
• Power Consumption: 550 mW
• Type: S/H ADC
• Width: 8 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 0.6 LSB
• Gain Error: +/- 2.5 %FSR
• INL - Integral Nonlinearity: +/- 0.6 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 4 Input
• Operating Supply Voltage: 3.3 V
• Pd - Power Dissipation: 550 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 348
• Subcategory: Data Converter ICs
• Unit Weight: 0.006004 oz
