ADC1175CIMTCX

ADC1175CIMTCX Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TSSOP-24 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 20 MS/s. Single-Ended input type Interface Type: Parallel 2-Step architecture External, Internal is the reference type. This product requires an 4.75 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 20 C. The product can operate at a maximum temperature of + 75 C. Reel packaging for easy dispensing The height of the product is 0.9 mm. 2 V Input Voltage 7.8 mm long This device belongs to the S/H ADC type. Texas Instruments is a trusted brand for quality electronics The 1 LSB, ensuring accurate and precise analog-to-digital conversion. 0.4 % FSR is 0.2%. INL is within 1.3 LSB 5 V operating supply voltage range 60 mW ADCs - Analog to Digital Converters product type 2500 of 100 Data Converter ICs as subcategory 1. 0.007478 oz of Unit Weight

ADC1175CIMTCX Image

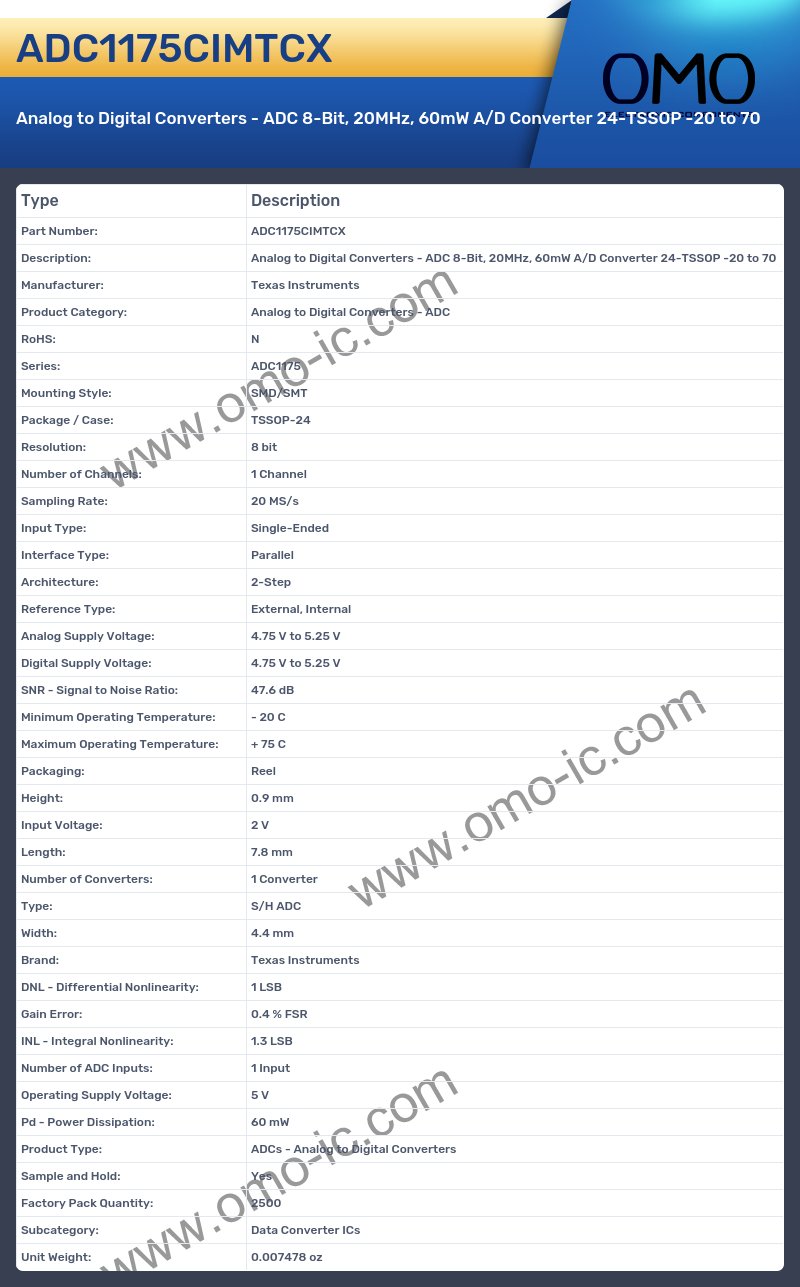

ADC1175CIMTCX Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: ADC1175
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-24
• Resolution: 8 bit
• Number of Channels: 1 Channel
• Sampling Rate: 20 MS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: 2-Step
• Reference Type: External, Internal
• Analog Supply Voltage: 4.75 V to 5.25 V
• Digital Supply Voltage: 4.75 V to 5.25 V
• SNR - Signal to Noise Ratio: 47.6 dB
• Minimum Operating Temperature: - 20 C
• Maximum Operating Temperature: + 75 C
• Packaging: Reel
• Height: 0.9 mm
• Input Voltage: 2 V
• Length: 7.8 mm
• Number of Converters: 1 Converter
• Type: S/H ADC
• Width: 4.4 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: 1 LSB
• Gain Error: 0.4 % FSR
• INL - Integral Nonlinearity: 1.3 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 60 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 2500
• Subcategory: Data Converter ICs
• Unit Weight: 0.007478 oz
