ADE7758ARWZ

ADE7758ARWZ Overview

This product is manufactured by Analog Devices Inc.. Energy Metering ICs This device belongs to the Polyphase Energy Metering type. This product is equipped with 3 Channel for efficient performance. 5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-24 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 2.35 mm. Analog input type 15.6 mm long The sampling rate of this product is 26 kS/s. Analog Devices is a trusted brand for quality electronics Interface Type: Serial External is the reference type. This product does not have a No Shutdown feature, ensuring continuous operation. EVAL-ADE7758ZEB is a versatile development platform for hardware and software 6 % is 0.2%. The Maximum Clock Frequency of this product is 15 MHz. Yes regarding Moisture Sensitivity The product has 6 Channel ADC channels. Data Acquisition ADCs/DACs - Specialized product type 1.68 s settling time 31 of 100 Data Converter ICs as subcategory Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V 1. 0.015168 oz of Unit Weight

ADE7758ARWZ Image

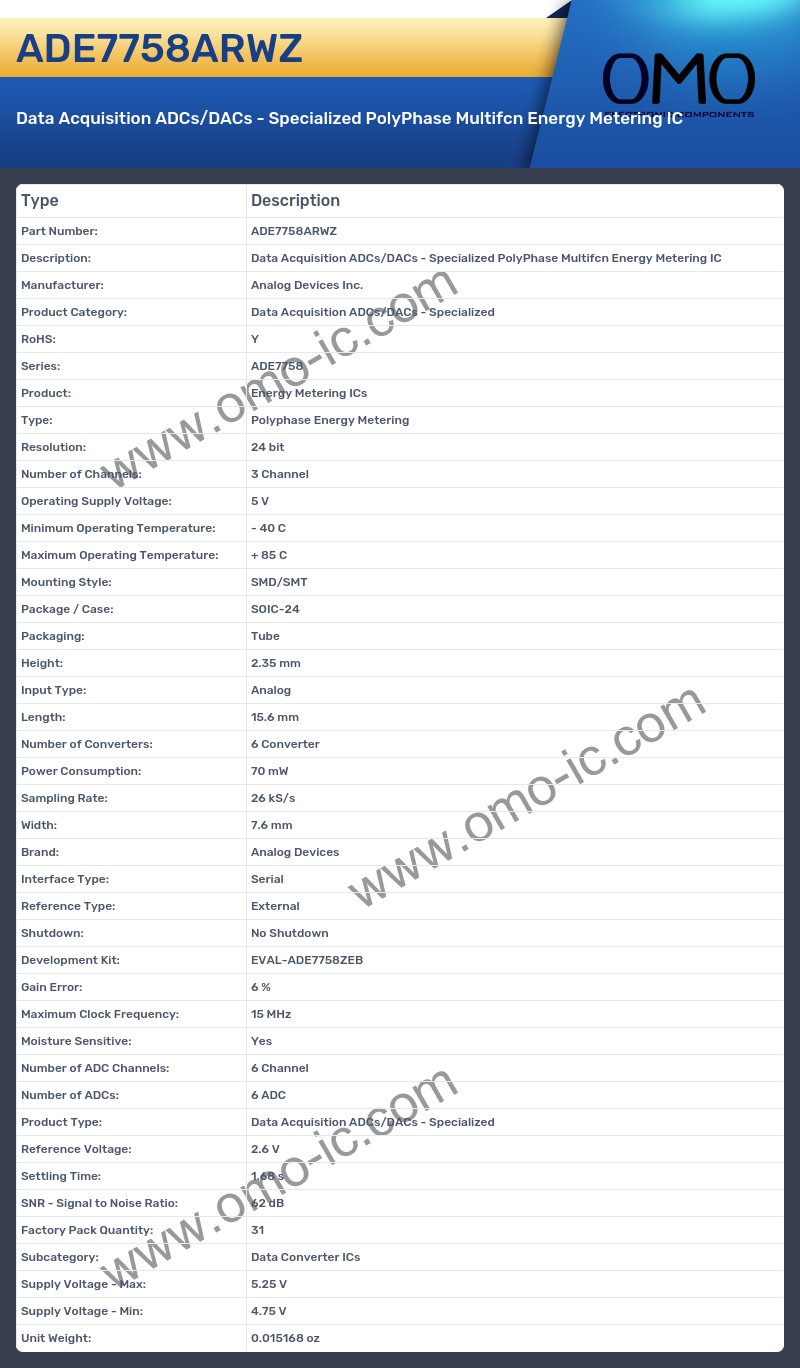

ADE7758ARWZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Data Acquisition ADCs/DACs - Specialized
• RoHS: Y
• Series: ADE7758
• Product: Energy Metering ICs
• Type: Polyphase Energy Metering
• Resolution: 24 bit
• Number of Channels: 3 Channel
• Operating Supply Voltage: 5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-24
• Packaging: Tube
• Height: 2.35 mm
• Input Type: Analog
• Length: 15.6 mm
• Number of Converters: 6 Converter
• Power Consumption: 70 mW
• Sampling Rate: 26 kS/s
• Width: 7.6 mm
• Brand: Analog Devices
• Interface Type: Serial
• Reference Type: External
• Shutdown: No Shutdown
• Development Kit: EVAL-ADE7758ZEB
• Gain Error: 6 %
• Maximum Clock Frequency: 15 MHz
• Moisture Sensitive: Yes
• Number of ADC Channels: 6 Channel
• Number of ADCs: 6 ADC
• Product Type: Data Acquisition ADCs/DACs - Specialized
• Reference Voltage: 2.6 V
• Settling Time: 1.68 s
• SNR - Signal to Noise Ratio: 62 dB
• Factory Pack Quantity: 31
• Subcategory: Data Converter ICs
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Unit Weight: 0.015168 oz
