ADMV1009AEZ

ADMV1009AEZ Overview

This product is manufactured by Analog Devices Inc.. Up Converters This product operates at 12.7 GHz to 15.4 GHz RF frequency range. The IF Frequency range is 2.8 GHz to 4 GHz. LO Frequency range is 9 GHz to 12.6 GHz. 21 dB is 11.5 dB. The 26 dBm is 17 dBm. 5 V operating supply voltage range The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. LCC-32 package/case type is utilized by this product. Analog Devices is a trusted brand for quality electronics The minimum operating temperature of this product is - 40 C. Yes regarding Moisture Sensitivity The 35 dBm value is 32 dBm. 1.3 W Up-Down Converters product type 50 of 100 Wireless & RF Integrated Circuits as subcategory

ADMV1009AEZ Image

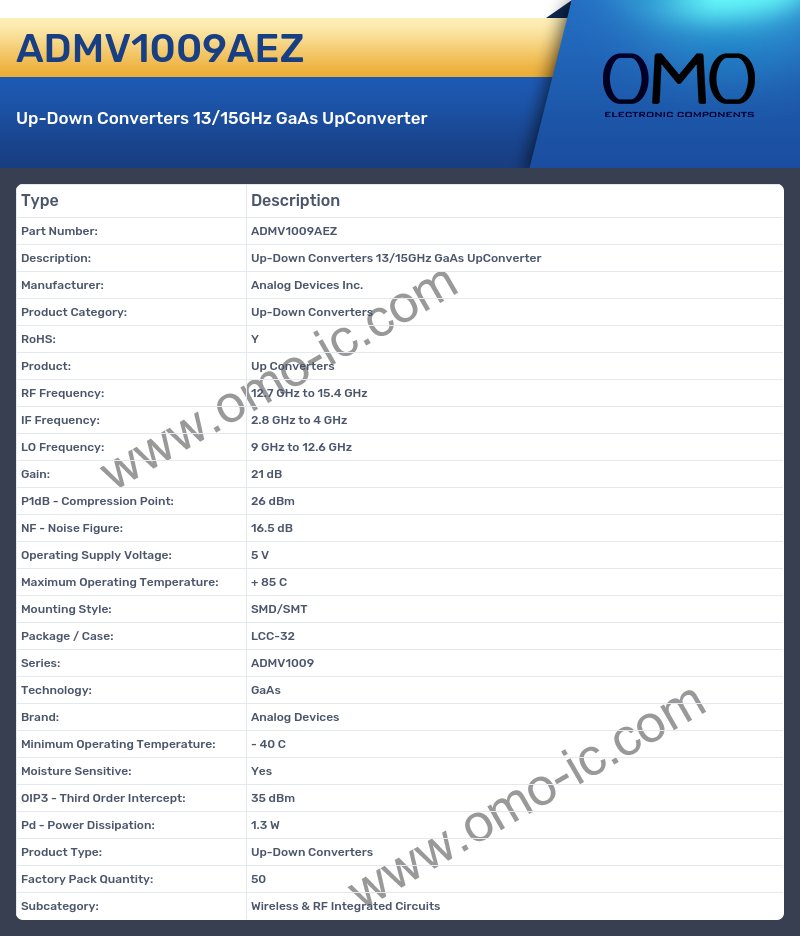

ADMV1009AEZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Up-Down Converters
• RoHS: Y
• Product: Up Converters
• RF Frequency: 12.7 GHz to 15.4 GHz
• IF Frequency: 2.8 GHz to 4 GHz
• LO Frequency: 9 GHz to 12.6 GHz
• Gain: 21 dB
• P1dB - Compression Point: 26 dBm
• NF - Noise Figure: 16.5 dB
• Operating Supply Voltage: 5 V
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: LCC-32
• Series: ADMV1009
• Technology: GaAs
• Brand: Analog Devices
• Minimum Operating Temperature: - 40 C
• Moisture Sensitive: Yes
• OIP3 - Third Order Intercept: 35 dBm
• Pd - Power Dissipation: 1.3 W
• Product Type: Up-Down Converters
• Factory Pack Quantity: 50
• Subcategory: Wireless & RF Integrated Circuits
