ADS1209SPW

ADS1209SPW Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TSSOP-24 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. The sampling rate of this product is 40 kS/s. Differential input type Sigma-Delta architecture External, Internal is the reference type. This product requires an 4.5 V to 5.5 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 105 C. Tube packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics ADS1209EVM is a versatile development platform for hardware and software The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. Yes regarding Moisture Sensitivity 5.5 V to 4.5 V operating supply voltage range 100 mW ADCs - Analog to Digital Converters product type 60 of 100 Data Converter ICs as subcategory 1. 0.007478 oz of Unit Weight

ADS1209SPW Image

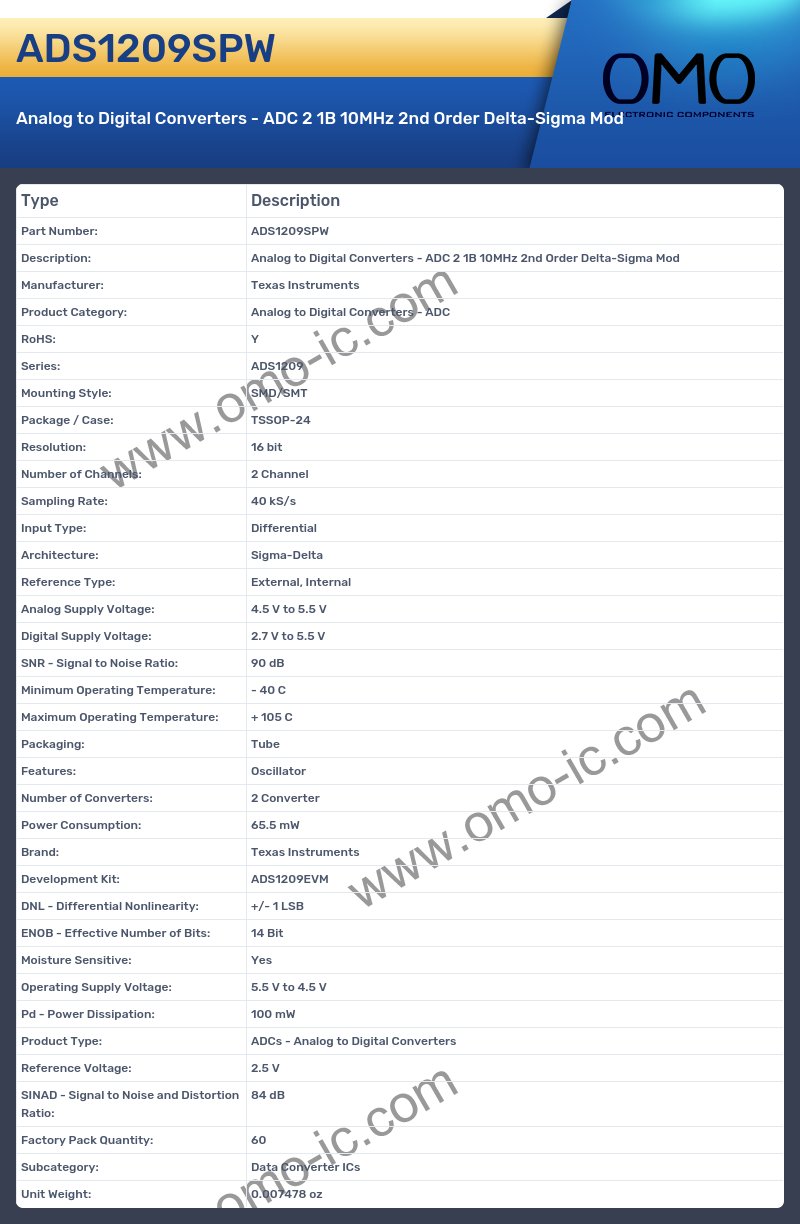

ADS1209SPW Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS1209
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-24
• Resolution: 16 bit
• Number of Channels: 2 Channel
• Sampling Rate: 40 kS/s
• Input Type: Differential
• Architecture: Sigma-Delta
• Reference Type: External, Internal
• Analog Supply Voltage: 4.5 V to 5.5 V
• Digital Supply Voltage: 2.7 V to 5.5 V
• SNR - Signal to Noise Ratio: 90 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 105 C
• Packaging: Tube
• Features: Oscillator
• Number of Converters: 2 Converter
• Power Consumption: 65.5 mW
• Brand: Texas Instruments
• Development Kit: ADS1209EVM
• DNL - Differential Nonlinearity: +/- 1 LSB
• ENOB - Effective Number of Bits: 14 Bit
• Moisture Sensitive: Yes
• Operating Supply Voltage: 5.5 V to 4.5 V
• Pd - Power Dissipation: 100 mW
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 2.5 V
• SINAD - Signal to Noise and Distortion Ratio: 84 dB
• Factory Pack Quantity: 60
• Subcategory: Data Converter ICs
• Unit Weight: 0.007478 oz
