ADS1258IRTCR

ADS1258IRTCR Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. VQFN-48 package/case type is utilized by this product. This product is equipped with 8 Channel/16 Channel for efficient performance. The sampling rate of this product is 125 kS/s. Differential/Single-Ended input type Interface Type: SPI Sigma-Delta architecture External is the reference type. This product requires an 4.75 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 105 C. Reel packaging for easy dispensing The height of the product is 0.9 mm. 7 mm long Texas Instruments is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within 0.001 % FSR Yes regarding Moisture Sensitivity +/- 2.5 V, + 5 V operating supply voltage range 62 mW ADCs - Analog to Digital Converters product type 2500 of 100 Data Converter ICs as subcategory 1. 0.003175 oz of Unit Weight

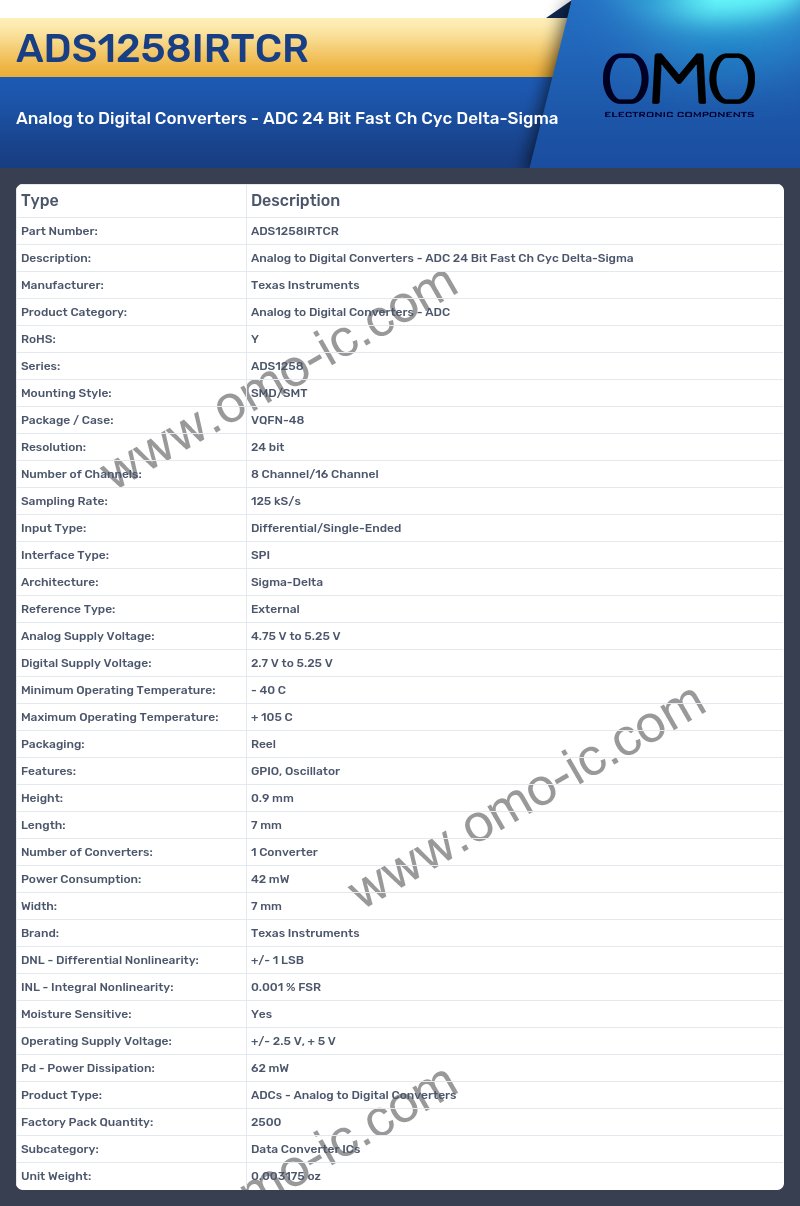

ADS1258IRTCR Image

ADS1258IRTCR Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS1258
• Mounting Style: SMD/SMT
• Package / Case: VQFN-48
• Resolution: 24 bit
• Number of Channels: 8 Channel/16 Channel
• Sampling Rate: 125 kS/s
• Input Type: Differential/Single-Ended
• Interface Type: SPI
• Architecture: Sigma-Delta
• Reference Type: External
• Analog Supply Voltage: 4.75 V to 5.25 V
• Digital Supply Voltage: 2.7 V to 5.25 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 105 C
• Packaging: Reel
• Features: GPIO, Oscillator
• Height: 0.9 mm
• Length: 7 mm
• Number of Converters: 1 Converter
• Power Consumption: 42 mW
• Width: 7 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: +/- 1 LSB
• INL - Integral Nonlinearity: 0.001 % FSR
• Moisture Sensitive: Yes
• Operating Supply Voltage: +/- 2.5 V, + 5 V
• Pd - Power Dissipation: 62 mW
• Product Type: ADCs - Analog to Digital Converters
• Factory Pack Quantity: 2500
• Subcategory: Data Converter ICs
• Unit Weight: 0.003175 oz
