ADS5520IPAP

ADS5520IPAP Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. HTQFP-64 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 125 MS/s. Differential input type Interface Type: Parallel Pipeline architecture Internal is the reference type. This product requires an 3.3 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tray packaging for easy dispensing The height of the product is 1 mm. 10 mm long Texas Instruments is a trusted brand for quality electronics ADS5520EVM is a versatile development platform for hardware and software The +/- 0.25 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 1.5 LSB Yes regarding Moisture Sensitivity 3 V to 3.6 V operating supply voltage range 627 mW ADCs - Analog to Digital Converters product type 160 of 100 Data Converter ICs as subcategory This product is also known by the HPA00068IPAP number of 934069005115. 1. 0.009108 oz of Unit Weight

ADS5520IPAP Image

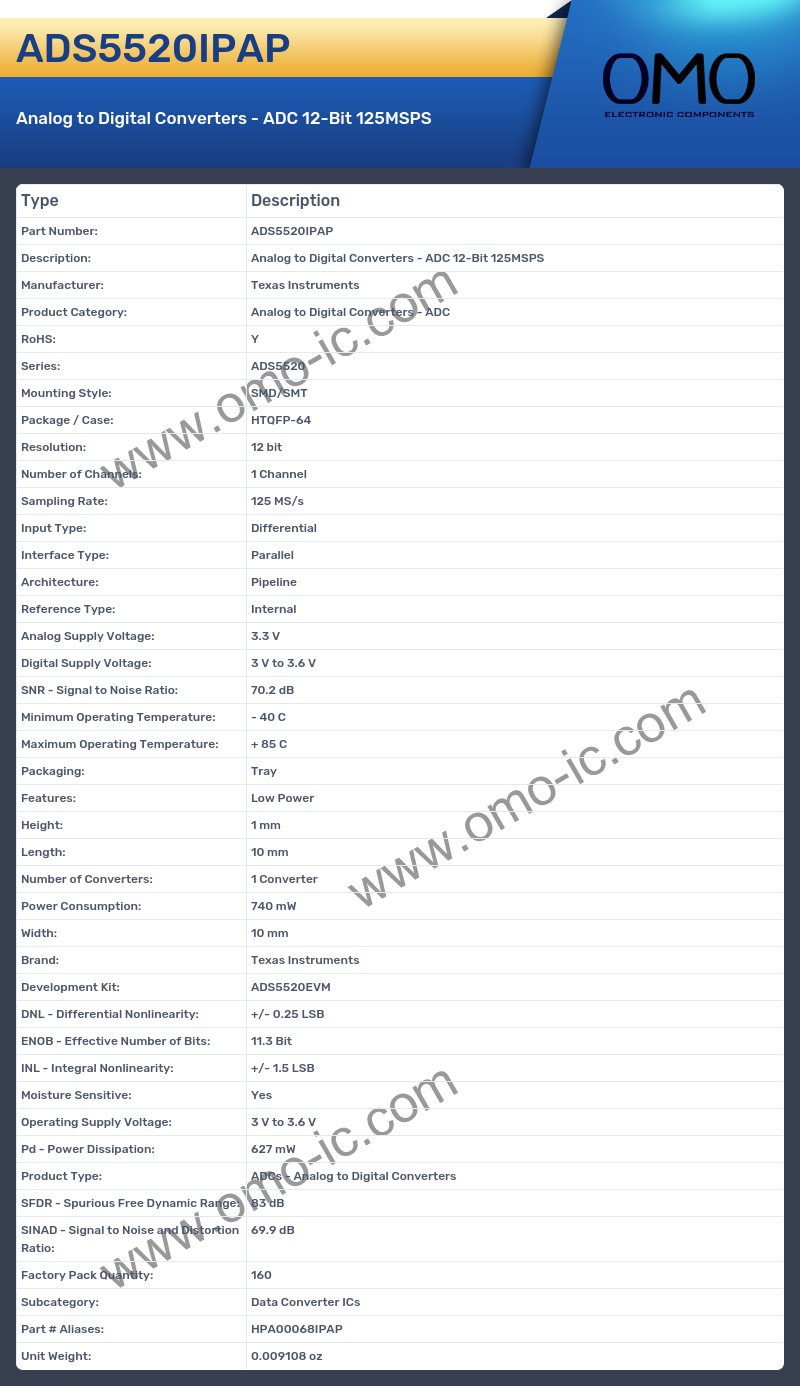

ADS5520IPAP Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS5520
• Mounting Style: SMD/SMT
• Package / Case: HTQFP-64
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 125 MS/s
• Input Type: Differential
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: Internal
• Analog Supply Voltage: 3.3 V
• Digital Supply Voltage: 3 V to 3.6 V
• SNR - Signal to Noise Ratio: 70.2 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tray
• Features: Low Power
• Height: 1 mm
• Length: 10 mm
• Number of Converters: 1 Converter
• Power Consumption: 740 mW
• Width: 10 mm
• Brand: Texas Instruments
• Development Kit: ADS5520EVM
• DNL - Differential Nonlinearity: +/- 0.25 LSB
• ENOB - Effective Number of Bits: 11.3 Bit
• INL - Integral Nonlinearity: +/- 1.5 LSB
• Moisture Sensitive: Yes
• Operating Supply Voltage: 3 V to 3.6 V
• Pd - Power Dissipation: 627 mW
• Product Type: ADCs - Analog to Digital Converters
• SFDR - Spurious Free Dynamic Range: 83 dB
• SINAD - Signal to Noise and Distortion Ratio: 69.9 dB
• Factory Pack Quantity: 160
• Subcategory: Data Converter ICs
• Part # Aliases: HPA00068IPAP
• Unit Weight: 0.009108 oz
