ADS5522IPAP

ADS5522IPAP Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. HTQFP-64 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 80 MS/s. Differential input type Interface Type: Parallel Pipeline architecture Internal is the reference type. This product requires an 3.3 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tray packaging for easy dispensing The height of the product is 1 mm. 10 mm long Texas Instruments is a trusted brand for quality electronics ADS5522EVM is a versatile development platform for hardware and software The +/- 0.25 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 1.5 LSB Yes regarding Moisture Sensitivity 3 V to 3.6 V operating supply voltage range 594 mW ADCs - Analog to Digital Converters product type 160 of 100 Data Converter ICs as subcategory 1. 0.009108 oz of Unit Weight

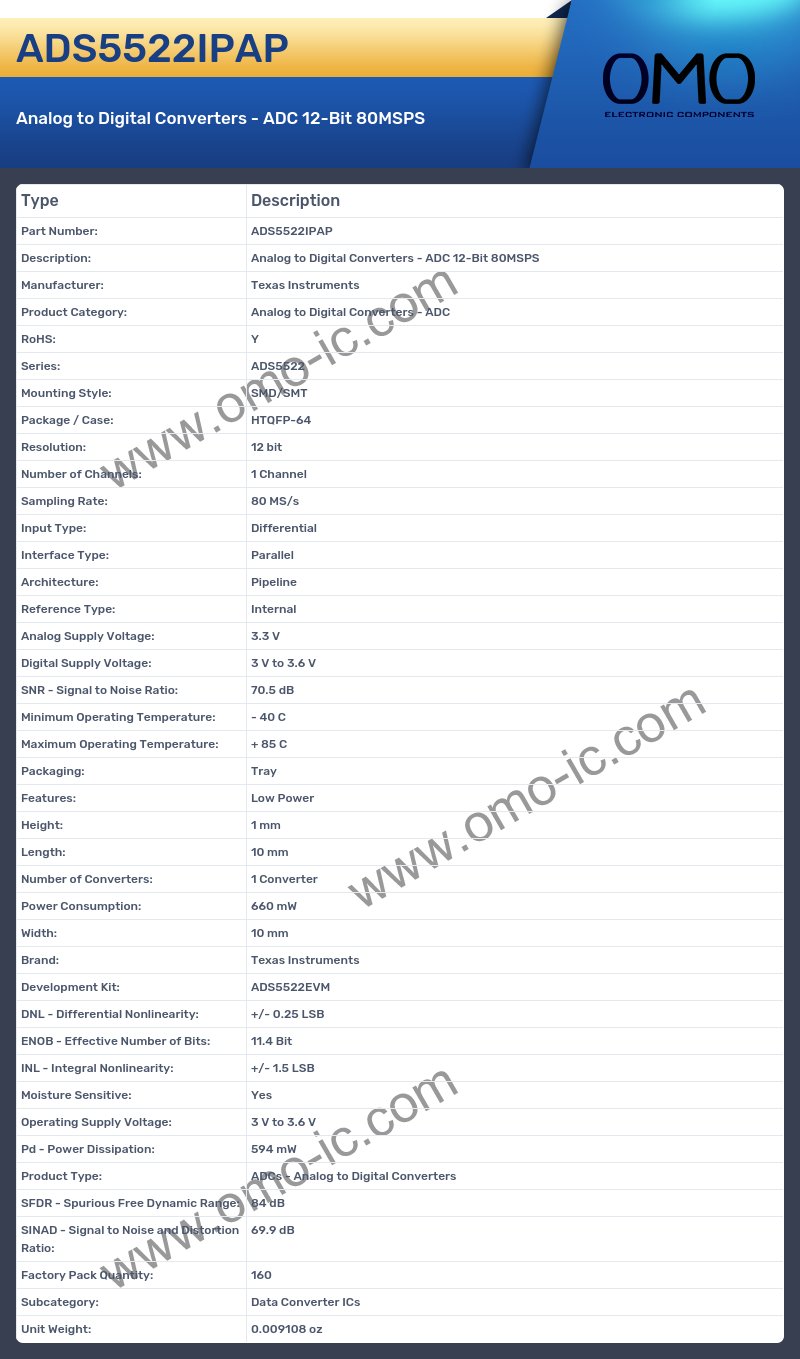

ADS5522IPAP Image

ADS5522IPAP Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS5522
• Mounting Style: SMD/SMT
• Package / Case: HTQFP-64
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 80 MS/s
• Input Type: Differential
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: Internal
• Analog Supply Voltage: 3.3 V
• Digital Supply Voltage: 3 V to 3.6 V
• SNR - Signal to Noise Ratio: 70.5 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tray
• Features: Low Power
• Height: 1 mm
• Length: 10 mm
• Number of Converters: 1 Converter
• Power Consumption: 660 mW
• Width: 10 mm
• Brand: Texas Instruments
• Development Kit: ADS5522EVM
• DNL - Differential Nonlinearity: +/- 0.25 LSB
• ENOB - Effective Number of Bits: 11.4 Bit
• INL - Integral Nonlinearity: +/- 1.5 LSB
• Moisture Sensitive: Yes
• Operating Supply Voltage: 3 V to 3.6 V
• Pd - Power Dissipation: 594 mW
• Product Type: ADCs - Analog to Digital Converters
• SFDR - Spurious Free Dynamic Range: 84 dB
• SINAD - Signal to Noise and Distortion Ratio: 69.9 dB
• Factory Pack Quantity: 160
• Subcategory: Data Converter ICs
• Unit Weight: 0.009108 oz
