ADS7056IRUGR

ADS7056IRUGR Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. X2QFN-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 2.5 MS/s. Single-Ended input type Interface Type: SPI SAR architecture Supply is the reference type. This product requires an 2.35 V to 3.6 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing This device belongs to the High Speed SAR ADC type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. ADS7056EVM-PDK is a versatile development platform for hardware and software The 0.5 LSB, ensuring accurate and precise analog-to-digital conversion. 0.01 %FS is 0.2%. INL is within 2 LSB ADCs - Analog to Digital Converters product type 3000 of 100 Data Converter ICs as subcategory THD is as low as - 84.5 dB. 1. 0.000088 oz of Unit Weight

ADS7056IRUGR Image

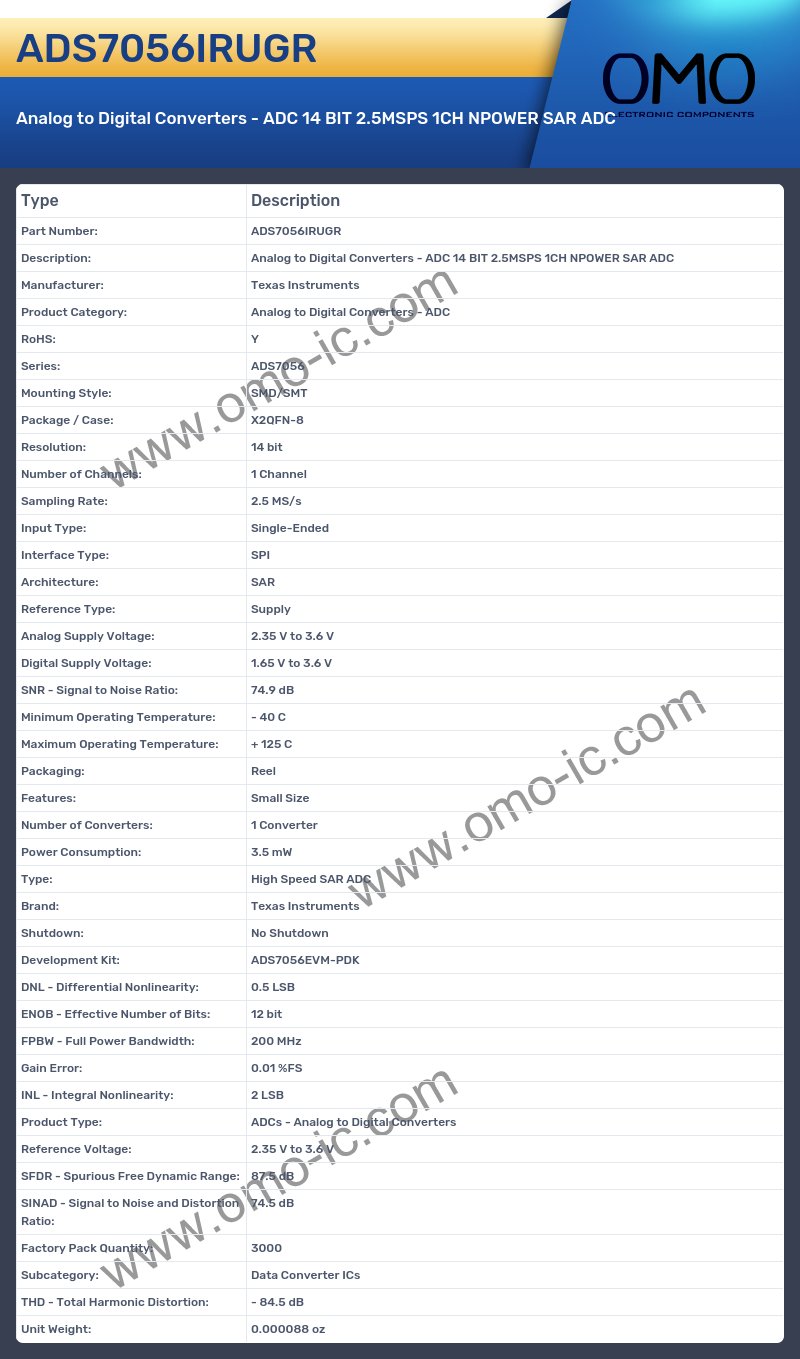

ADS7056IRUGR Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS7056
• Mounting Style: SMD/SMT
• Package / Case: X2QFN-8
• Resolution: 14 bit
• Number of Channels: 1 Channel
• Sampling Rate: 2.5 MS/s
• Input Type: Single-Ended
• Interface Type: SPI
• Architecture: SAR
• Reference Type: Supply
• Analog Supply Voltage: 2.35 V to 3.6 V
• Digital Supply Voltage: 1.65 V to 3.6 V
• SNR - Signal to Noise Ratio: 74.9 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Reel
• Features: Small Size
• Number of Converters: 1 Converter
• Power Consumption: 3.5 mW
• Type: High Speed SAR ADC
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Development Kit: ADS7056EVM-PDK
• DNL - Differential Nonlinearity: 0.5 LSB
• ENOB - Effective Number of Bits: 12 bit
• FPBW - Full Power Bandwidth: 200 MHz
• Gain Error: 0.01 %FS
• INL - Integral Nonlinearity: 2 LSB
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 2.35 V to 3.6 V
• SFDR - Spurious Free Dynamic Range: 87.5 dB
• SINAD - Signal to Noise and Distortion Ratio: 74.5 dB
• Factory Pack Quantity: 3000
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 84.5 dB
• Unit Weight: 0.000088 oz
