AMC1305L25QDWQ1

AMC1305L25QDWQ1 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 20 MS/s. Differential input type Interface Type: Serial Sigma-Delta architecture External, Internal is the reference type. This product requires an 5 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The output type is Differential. This device belongs to the Automotive High Precision Reinforced Modulators type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. AMC1305L25EVM is a versatile development platform for hardware and software The 0.99 LSB, ensuring accurate and precise analog-to-digital conversion. - 0.02 %FS is 0.2%. INL is within 1.5 LSB Yes regarding Moisture Sensitivity 89.1 mW ADCs - Analog to Digital Converters product type 40 of 100 Data Converter ICs as subcategory THD is as low as - 90 dB. 1. 0.024621 oz of Unit Weight

AMC1305L25QDWQ1 Image

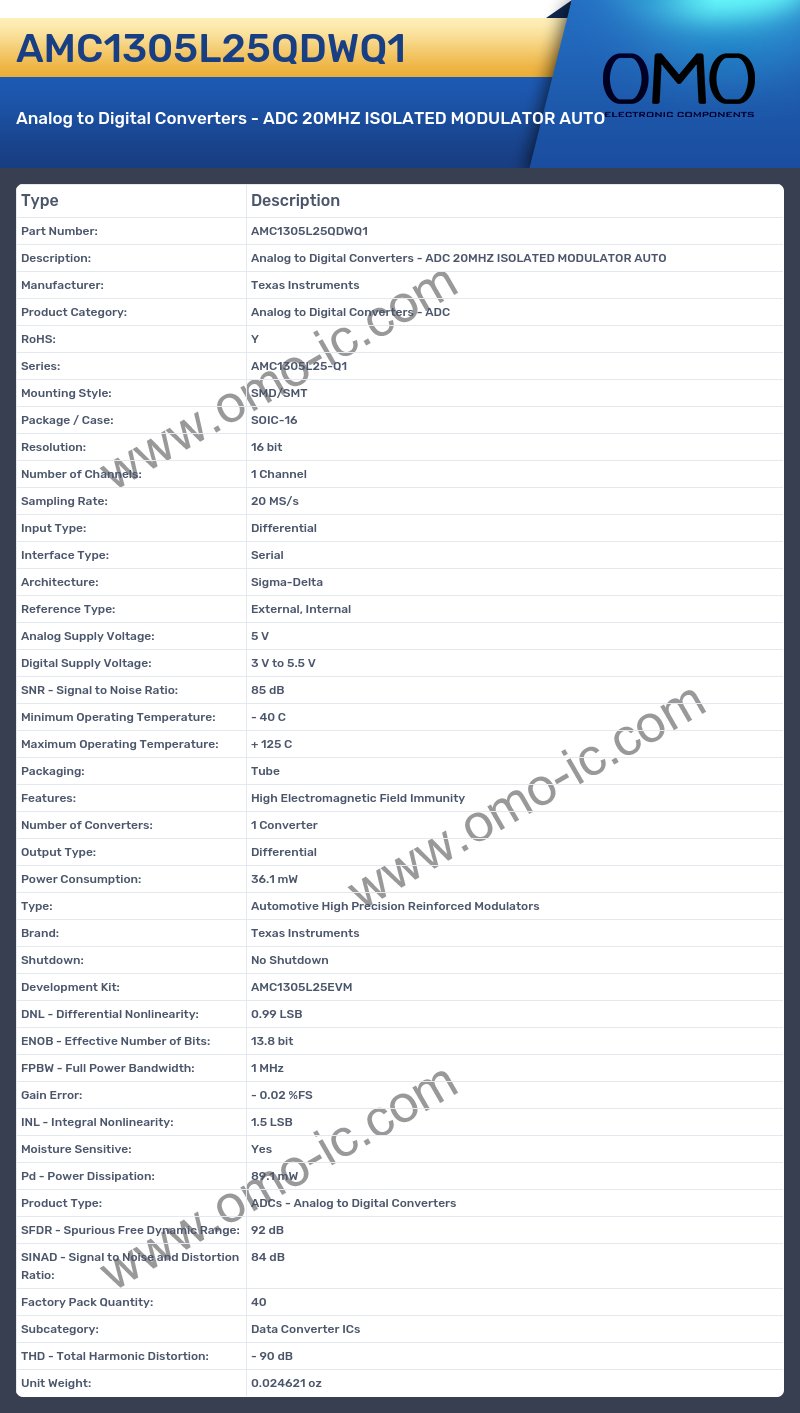

AMC1305L25QDWQ1 Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AMC1305L25-Q1
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Sampling Rate: 20 MS/s
• Input Type: Differential
• Interface Type: Serial
• Architecture: Sigma-Delta
• Reference Type: External, Internal
• Analog Supply Voltage: 5 V
• Digital Supply Voltage: 3 V to 5.5 V
• SNR - Signal to Noise Ratio: 85 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Features: High Electromagnetic Field Immunity
• Number of Converters: 1 Converter
• Output Type: Differential
• Power Consumption: 36.1 mW
• Type: Automotive High Precision Reinforced Modulators
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Development Kit: AMC1305L25EVM
• DNL - Differential Nonlinearity: 0.99 LSB
• ENOB - Effective Number of Bits: 13.8 bit
• FPBW - Full Power Bandwidth: 1 MHz
• Gain Error: - 0.02 %FS
• INL - Integral Nonlinearity: 1.5 LSB
• Moisture Sensitive: Yes
• Pd - Power Dissipation: 89.1 mW
• Product Type: ADCs - Analog to Digital Converters
• SFDR - Spurious Free Dynamic Range: 92 dB
• SINAD - Signal to Noise and Distortion Ratio: 84 dB
• Factory Pack Quantity: 40
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 90 dB
• Unit Weight: 0.024621 oz
