CD74HC08PW

CD74HC08PW Overview

This product is manufactured by Texas Instruments. Single-Function Gate AND logic function The product uses the HC logic family. The product boasts a whopping 4 Gate gates for unparalleled processing power. This product has a - 5.2 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 5.2 mA The propagation delay time is 23 ns. Supply Voltage - Max: 6 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a AND The height of the product is 1.15 mm. CMOS input type 5 mm long The output type is CMOS. Texas Instruments is a trusted brand for quality electronics 2-Input AND. Number of bits: 4 bit 5 V operating supply voltage range Logic Gates product type 90 of 100 Logic ICs as subcategory 1. 0.002018 oz of Unit Weight

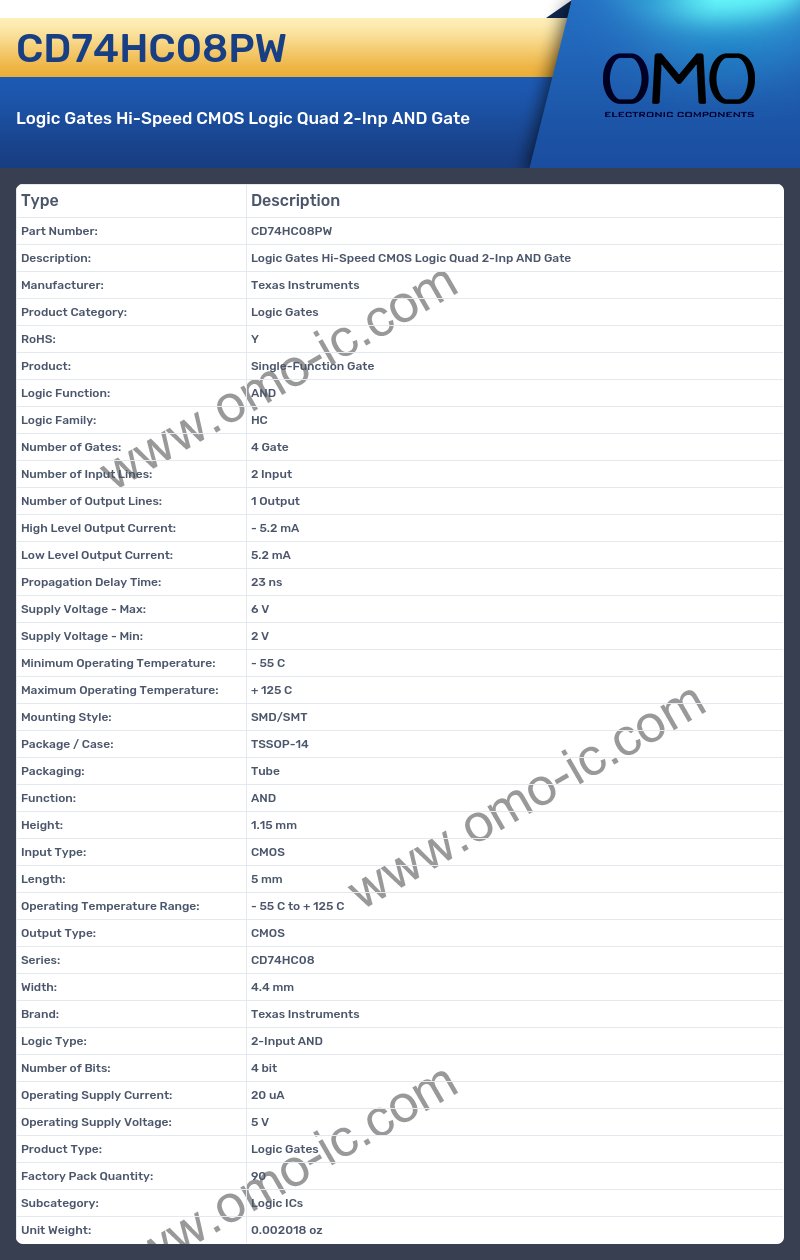

CD74HC08PW Image

CD74HC08PW Specifications

• Manufacturer: Texas Instruments
• Product Category: Logic Gates
• RoHS: Y
• Product: Single-Function Gate
• Logic Function: AND
• Logic Family: HC
• Number of Gates: 4 Gate
• Number of Input Lines: 2 Input
• Number of Output Lines: 1 Output
• High Level Output Current: - 5.2 mA
• Low Level Output Current: 5.2 mA
• Propagation Delay Time: 23 ns
• Supply Voltage - Max: 6 V
• Supply Voltage - Min: 2 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-14
• Packaging: Tube
• Function: AND
• Height: 1.15 mm
• Input Type: CMOS
• Length: 5 mm
• Operating Temperature Range: - 55 C to + 125 C
• Output Type: CMOS
• Series: CD74HC08
• Width: 4.4 mm
• Brand: Texas Instruments
• Logic Type: 2-Input AND
• Number of Bits: 4 bit
• Operating Supply Current: 20 uA
• Operating Supply Voltage: 5 V
• Product Type: Logic Gates
• Factory Pack Quantity: 90
• Subcategory: Logic ICs
• Unit Weight: 0.002018 oz
