CSD15380F3T

CSD15380F3T Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. PICOSTAR-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 20 V 500 mA continuous drain current Rds On value of 1.46 Ohms Gate-Source Threshold Voltage Range: 850 mV Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 500 mW (1/2 W) This product has a Single configuration. The Channel Mode is set to Enhancement. The product's PicoStar is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.35 mm. 0.73 mm long The Transistor Type is 1 N-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 0.64 S 7 ns fall time MOSFET product type Rise Time is 1 ns. 250 of 100 MOSFETs as subcategory Turn-off delay time is 7 ns. The typical turn-on delay time is 3 ns. 1. 0.000011 oz of Unit Weight

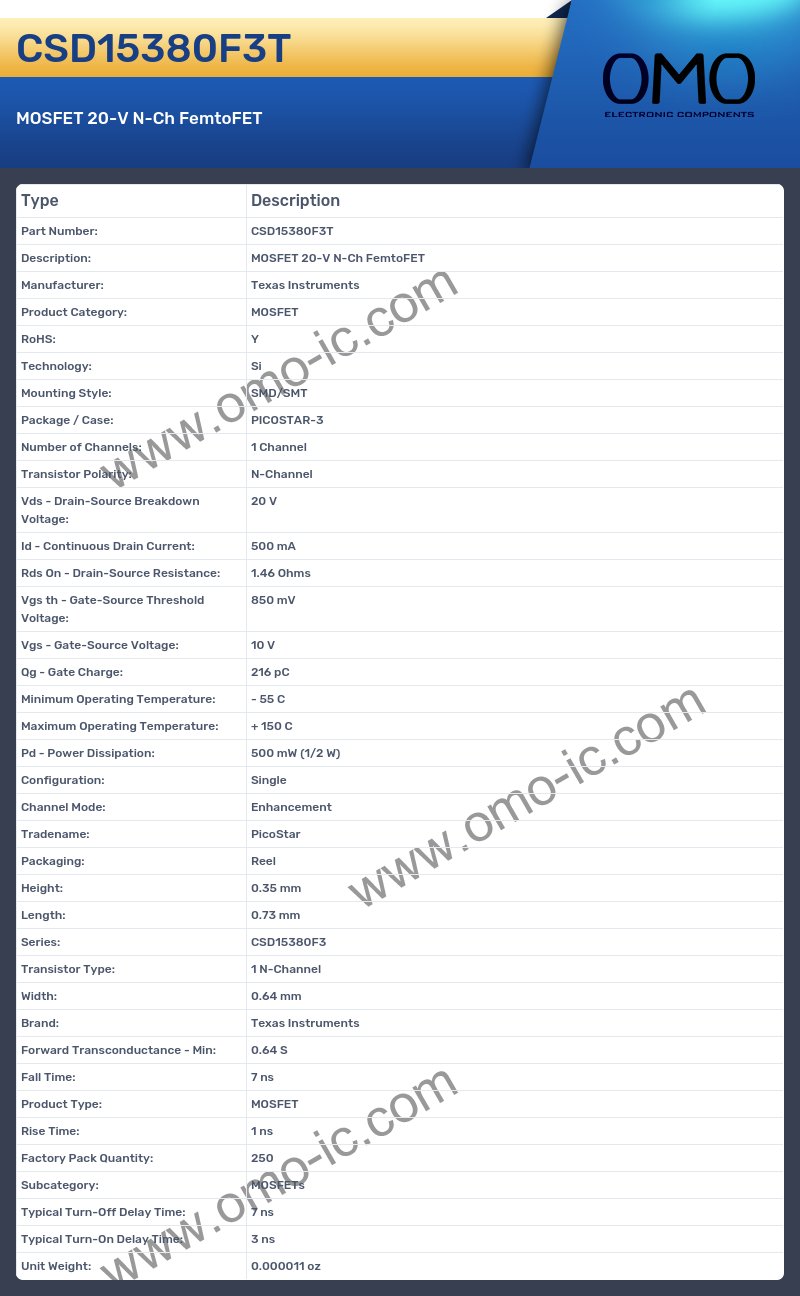

CSD15380F3T Image

CSD15380F3T Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PICOSTAR-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 20 V
• Id - Continuous Drain Current: 500 mA
• Rds On - Drain-Source Resistance: 1.46 Ohms
• Vgs th - Gate-Source Threshold Voltage: 850 mV
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 216 pC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 500 mW (1/2 W)
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: PicoStar
• Packaging: Reel
• Height: 0.35 mm
• Length: 0.73 mm
• Series: CSD15380F3
• Transistor Type: 1 N-Channel
• Width: 0.64 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 0.64 S
• Fall Time: 7 ns
• Product Type: MOSFET
• Rise Time: 1 ns
• Factory Pack Quantity: 250
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 7 ns
• Typical Turn-On Delay Time: 3 ns
• Unit Weight: 0.000011 oz
