CSD18542KTT

CSD18542KTT Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TO-263-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 60 V 200 A continuous drain current Rds On value of 4 mOhms Gate-Source Threshold Voltage Range: 1.5 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 250 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 19.7 mm. 9.25 mm long The Transistor Type is 1 N-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 198 S 2 ns fall time Yes regarding Moisture Sensitivity MOSFET product type Rise Time is 4 ns. 500 of 100 MOSFETs as subcategory Turn-off delay time is 16 ns. The typical turn-on delay time is 6 ns.

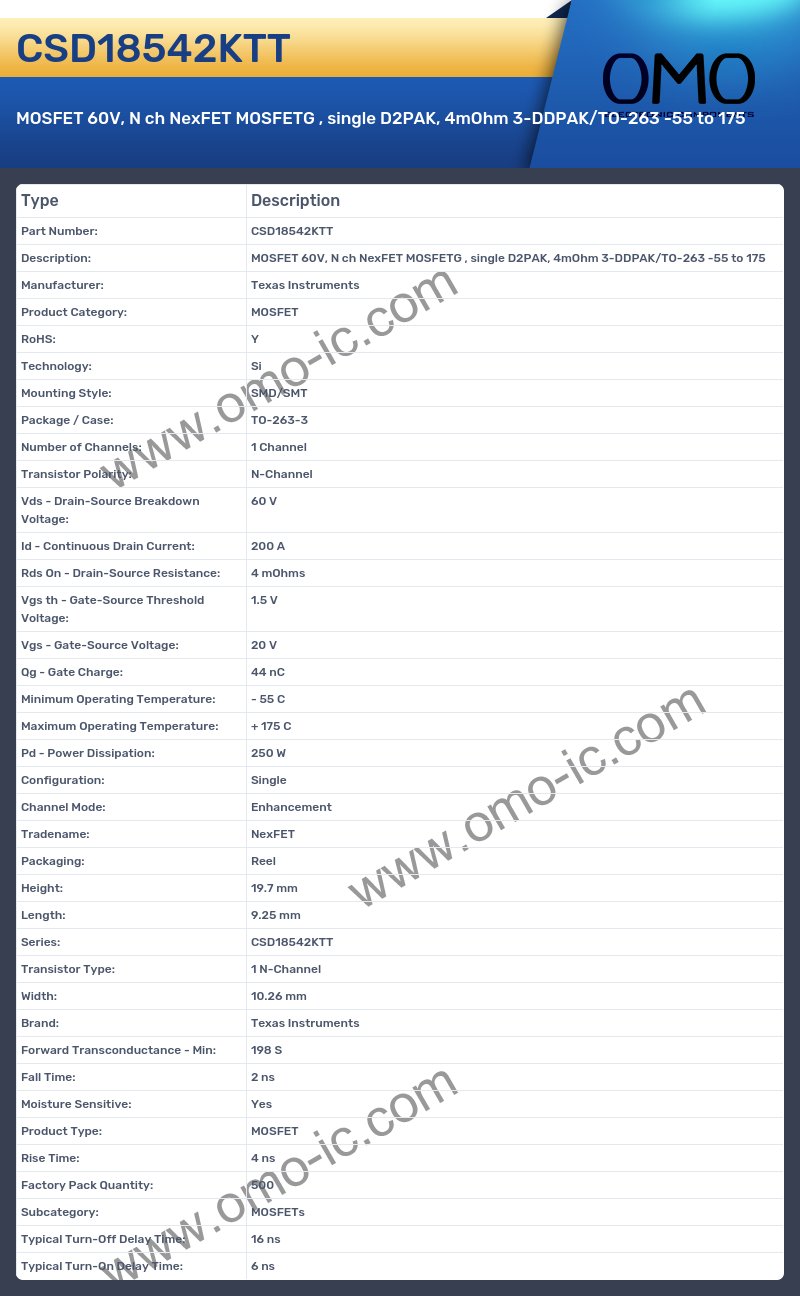

CSD18542KTT Image

CSD18542KTT Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: TO-263-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 60 V
• Id - Continuous Drain Current: 200 A
• Rds On - Drain-Source Resistance: 4 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1.5 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 44 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 250 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Height: 19.7 mm
• Length: 9.25 mm
• Series: CSD18542KTT
• Transistor Type: 1 N-Channel
• Width: 10.26 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 198 S
• Fall Time: 2 ns
• Moisture Sensitive: Yes
• Product Type: MOSFET
• Rise Time: 4 ns
• Factory Pack Quantity: 500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 16 ns
• Typical Turn-On Delay Time: 6 ns
