INA114BP

INA114BP Overview

This product is manufactured by Texas Instruments. This product is equipped with 1 Channel for efficient performance. This product has a 110 dB of 50 dB, ensuring reliable signal acquisition. This product has an 2 nA of 5 uA for precise signal processing. Supply Voltage - Max: 36 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Instrumentation Amplifier. The height of the product is 4.57 mm. 9.81 mm long Instrumentation Amplifiers Texas Instruments is a trusted brand for quality electronics Bandwidth at -3 dB is 10 kHz 0.002 % is 0.2%. Gain ratio is 1 V/V to 10000 V/V. INL is within 0.002 % 4.5 V to 36 V operating supply voltage range Instrumentation Amplifiers product type 50 of 100 Amplifier ICs as subcategory 1. 0.018646 oz of Unit Weight

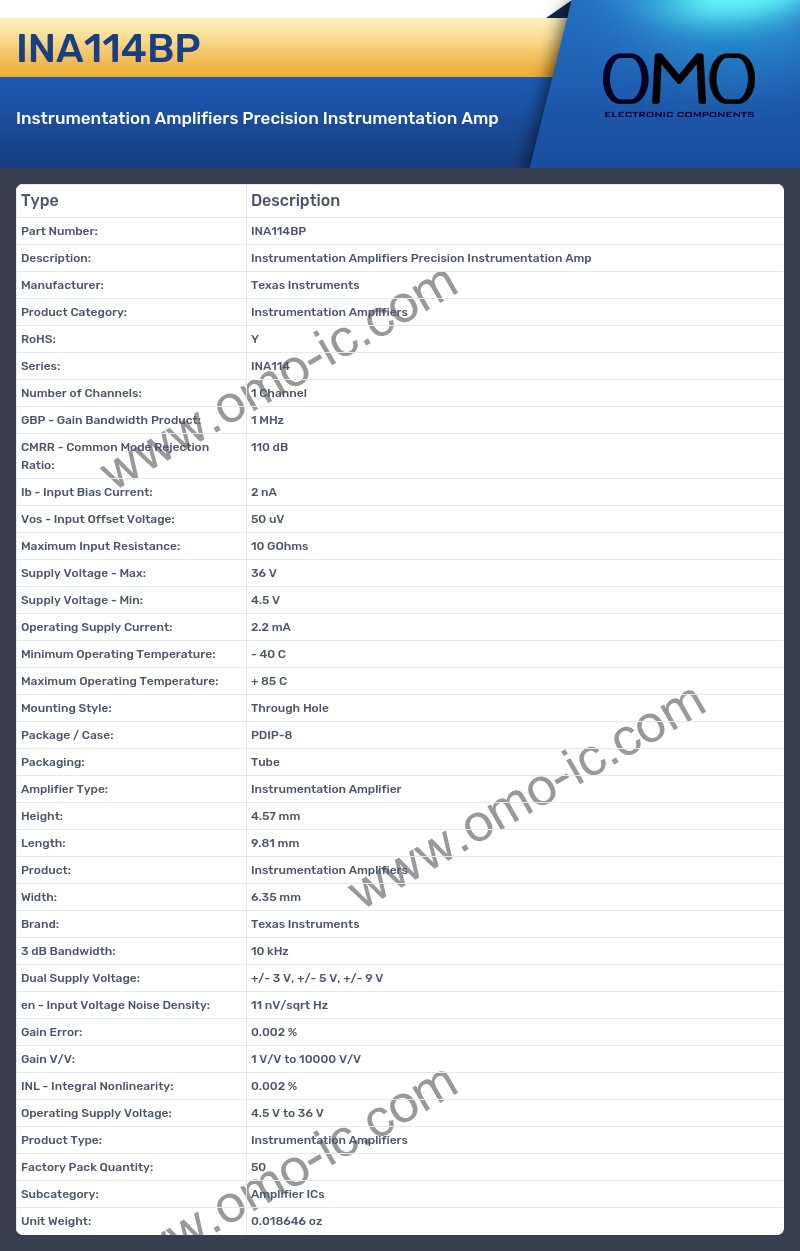

INA114BP Image

INA114BP Specifications

• Manufacturer: Texas Instruments
• Product Category: Instrumentation Amplifiers
• RoHS: Y
• Series: INA114
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 1 MHz
• CMRR - Common Mode Rejection Ratio: 110 dB
• Ib - Input Bias Current: 2 nA
• Vos - Input Offset Voltage: 50 uV
• Maximum Input Resistance: 10 GOhms
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 4.5 V
• Operating Supply Current: 2.2 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Packaging: Tube
• Amplifier Type: Instrumentation Amplifier
• Height: 4.57 mm
• Length: 9.81 mm
• Product: Instrumentation Amplifiers
• Width: 6.35 mm
• Brand: Texas Instruments
• 3 dB Bandwidth: 10 kHz
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
• en - Input Voltage Noise Density: 11 nV/sqrt Hz
• Gain Error: 0.002 %
• Gain V/V: 1 V/V to 10000 V/V
• INL - Integral Nonlinearity: 0.002 %
• Operating Supply Voltage: 4.5 V to 36 V
• Product Type: Instrumentation Amplifiers
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Unit Weight: 0.018646 oz
