ISO1540QDRQ1

ISO1540QDRQ1 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. Polarity type: Bidirectional 2.5 kVrms isolation voltage Capacitive Coupling isolation type The 1 Mb/s data rate; The propagation delay time is 70 ns, 47 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The AEC-Q100 Qualification Reel packaging for easy dispensing Digital Isolators This device belongs to the Low Power type. Texas Instruments is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. Half Duplex mode allows for simultaneous transmission and reception of data. The product has a maximum fall time of 76 ns. Yes regarding Moisture Sensitivity 85 mW Digital Isolators product type I2C protocol supported The 38 ns, 8 ns of this product is 500 ps. 2500 of 100 Interface ICs as subcategory 1. 0.007408 oz of Unit Weight

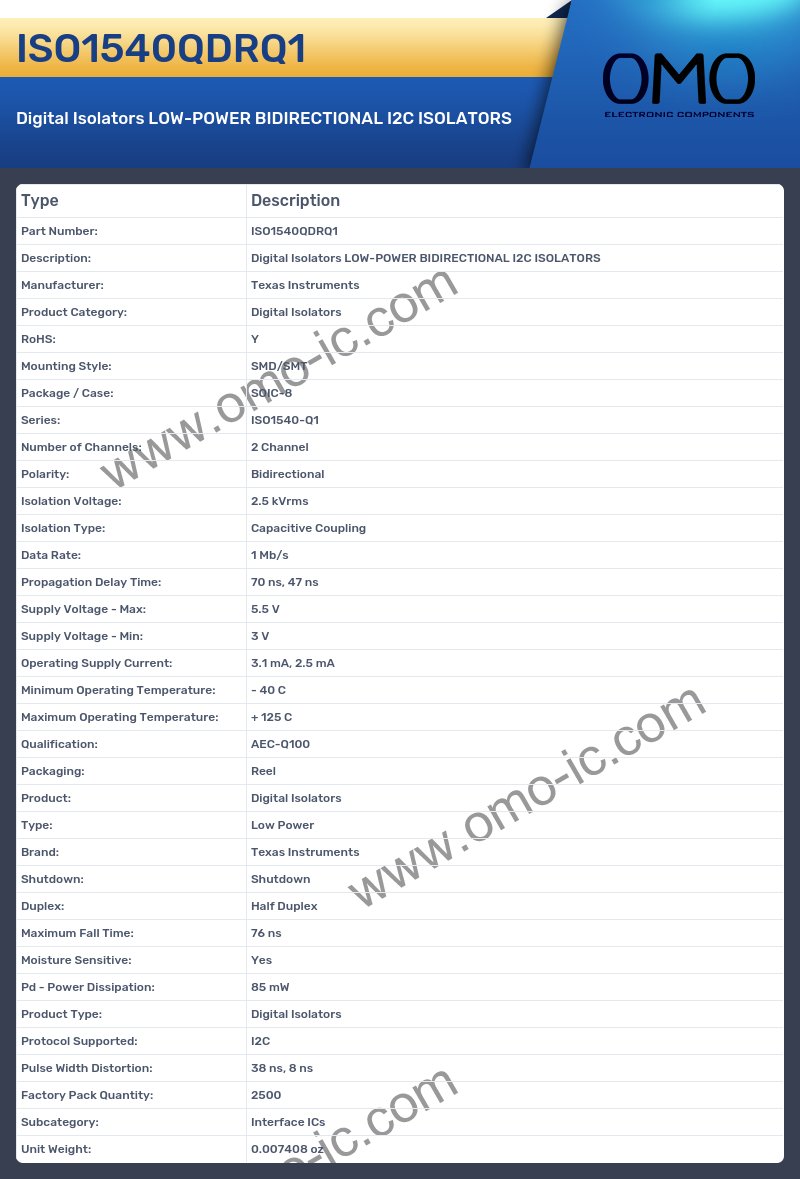

ISO1540QDRQ1 Image

ISO1540QDRQ1 Specifications

• Manufacturer: Texas Instruments
• Product Category: Digital Isolators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Series: ISO1540-Q1
• Number of Channels: 2 Channel
• Polarity: Bidirectional
• Isolation Voltage: 2.5 kVrms
• Isolation Type: Capacitive Coupling
• Data Rate: 1 Mb/s
• Propagation Delay Time: 70 ns, 47 ns
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 3 V
• Operating Supply Current: 3.1 mA, 2.5 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Qualification: AEC-Q100
• Packaging: Reel
• Product: Digital Isolators
• Type: Low Power
• Brand: Texas Instruments
• Shutdown: Shutdown
• Duplex: Half Duplex
• Maximum Fall Time: 76 ns
• Moisture Sensitive: Yes
• Pd - Power Dissipation: 85 mW
• Product Type: Digital Isolators
• Protocol Supported: I2C
• Pulse Width Distortion: 38 ns, 8 ns
• Factory Pack Quantity: 2500
• Subcategory: Interface ICs
• Unit Weight: 0.007408 oz
