LM2696MXAX/NOPB

LM2696MXAX/NOPB Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. HTSSOP-16 package/case type is utilized by this product. Output Voltage is 1.29 V to 20 V Output current: 3 A 1 Output is the number of outputs provided by this product. Maximum input voltage is 24 V Buck Topology 100 kHz to 500 kHz is 60 kHz. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing The height of the product is 0.9 mm. 5 mm long This device belongs to the Step Down type. Texas Instruments is a trusted brand for quality electronics Load regulation is 0.03 %. Switching Voltage Regulators product type 2500 of 100 PMIC - Power Management ICs as subcategory 1. 0.002060 oz of Unit Weight

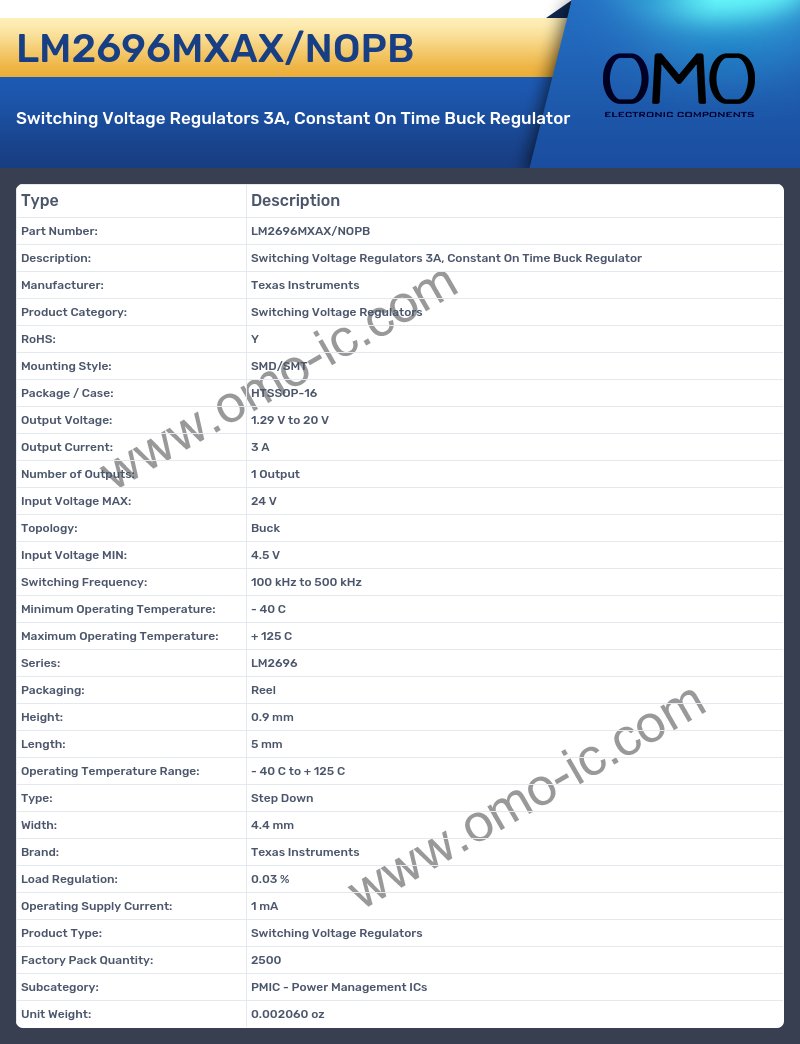

LM2696MXAX/NOPB Image

LM2696MXAX/NOPB Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Voltage Regulators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: HTSSOP-16
• Output Voltage: 1.29 V to 20 V
• Output Current: 3 A
• Number of Outputs: 1 Output
• Input Voltage MAX: 24 V
• Topology: Buck
• Input Voltage MIN: 4.5 V
• Switching Frequency: 100 kHz to 500 kHz
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: LM2696
• Packaging: Reel
• Height: 0.9 mm
• Length: 5 mm
• Operating Temperature Range: - 40 C to + 125 C
• Type: Step Down
• Width: 4.4 mm
• Brand: Texas Instruments
• Load Regulation: 0.03 %
• Operating Supply Current: 1 mA
• Product Type: Switching Voltage Regulators
• Factory Pack Quantity: 2500
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.002060 oz
