LM2940LD-12

LM2940LD-12 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. WSON-8 package/case type is utilized by this product. Output Voltage is 12 V Output current: 1 A 1 Output is the number of outputs provided by this product. Polarity type: Positive Maximum input voltage is 26 V The output type is Fixed. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Minimum Dropout Voltage: 500 mV Reel packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics Maximum dropout voltage is 0.8 V at 1 A, 0.15 V at 100 mA This product has an 10 mA of 5 uA for precise signal processing. Load regulation is 120 mV. LDO Voltage Regulators product type 1000 of 100 PMIC - Power Management ICs as subcategory 1. 0.000384 oz of Unit Weight

LM2940LD-12 Image

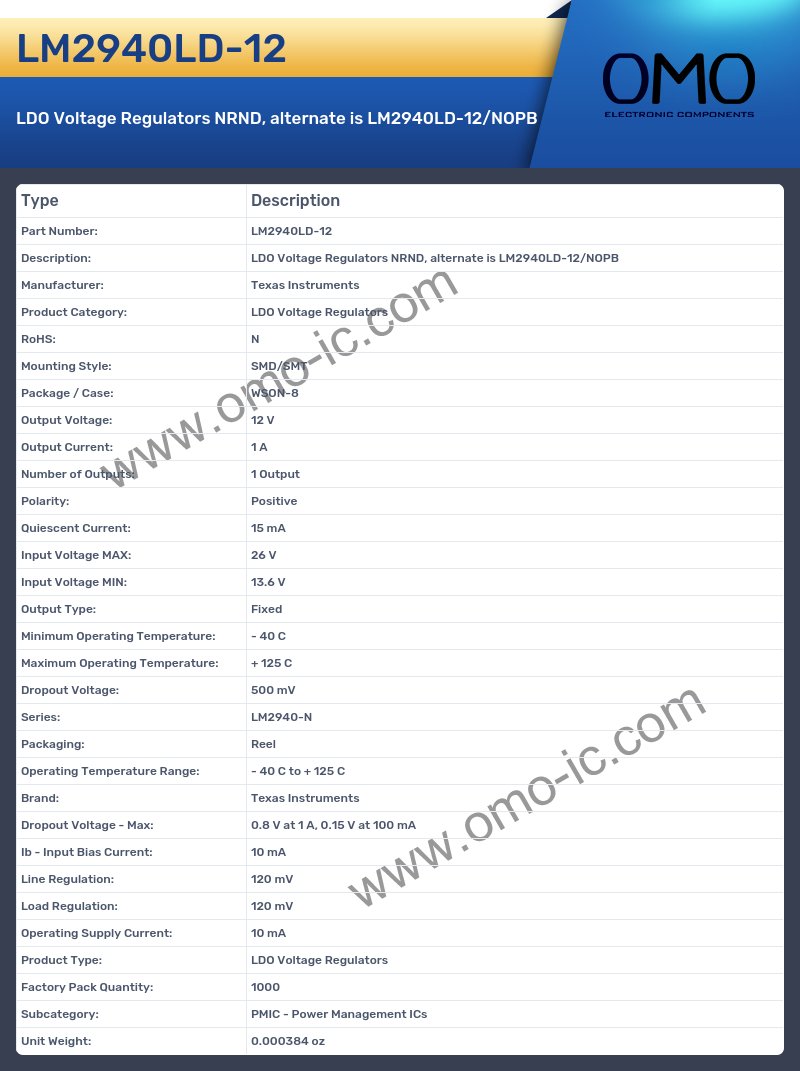

LM2940LD-12 Specifications

• Manufacturer: Texas Instruments
• Product Category: LDO Voltage Regulators
• RoHS: N
• Mounting Style: SMD/SMT
• Package / Case: WSON-8
• Output Voltage: 12 V
• Output Current: 1 A
• Number of Outputs: 1 Output
• Polarity: Positive
• Quiescent Current: 15 mA
• Input Voltage MAX: 26 V
• Input Voltage MIN: 13.6 V
• Output Type: Fixed
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Dropout Voltage: 500 mV
• Series: LM2940-N
• Packaging: Reel
• Operating Temperature Range: - 40 C to + 125 C
• Brand: Texas Instruments
• Dropout Voltage - Max: 0.8 V at 1 A, 0.15 V at 100 mA
• Ib - Input Bias Current: 10 mA
• Line Regulation: 120 mV
• Load Regulation: 120 mV
• Operating Supply Current: 10 mA
• Product Type: LDO Voltage Regulators
• Factory Pack Quantity: 1000
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.000384 oz
