LM5035CSQ/NOPB

LM5035CSQ/NOPB Overview

This product is manufactured by Texas Instruments. Half-Bridge Topology 1 Output is the number of outputs provided by this product. 50 kHz to 1000 kHz is 60 kHz. 105 V Input Voltage Output Voltage is 8 V to 15 V Output current: 2 A The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. LLP-24 package/case type is utilized by this product. Reel packaging for easy dispensing The height of the product is 0.8 mm. Isolated is the isolation property. 5 mm long The output type is Programmable. Half-Bridge PWM Controllers This device belongs to the Voltage Mode PWM Controller type. Texas Instruments is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. 13 ns fall time 13 V to 105 V operating supply voltage range Switching Controllers product type Rise Time is 15 ns. 1000 of 100 PMIC - Power Management ICs as subcategory 1. 0.001827 oz of Unit Weight

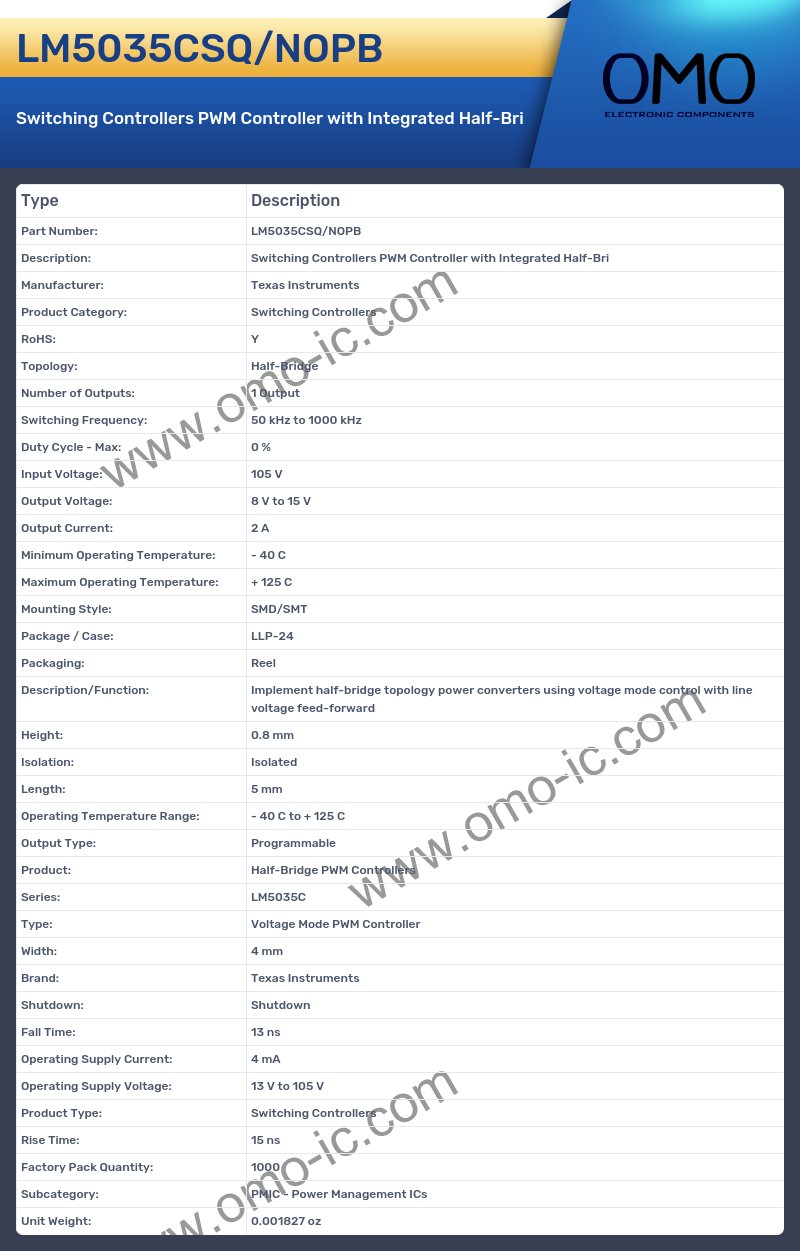

LM5035CSQ/NOPB Image

LM5035CSQ/NOPB Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Half-Bridge
• Number of Outputs: 1 Output
• Switching Frequency: 50 kHz to 1000 kHz
• Duty Cycle - Max: 0 %
• Input Voltage: 105 V
• Output Voltage: 8 V to 15 V
• Output Current: 2 A
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: LLP-24
• Packaging: Reel
• Description/Function: Implement half-bridge topology power converters using voltage mode control with line voltage feed-forward
• Height: 0.8 mm
• Isolation: Isolated
• Length: 5 mm
• Operating Temperature Range: - 40 C to + 125 C
• Output Type: Programmable
• Product: Half-Bridge PWM Controllers
• Series: LM5035C
• Type: Voltage Mode PWM Controller
• Width: 4 mm
• Brand: Texas Instruments
• Shutdown: Shutdown
• Fall Time: 13 ns
• Operating Supply Current: 4 mA
• Operating Supply Voltage: 13 V to 105 V
• Product Type: Switching Controllers
• Rise Time: 15 ns
• Factory Pack Quantity: 1000
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.001827 oz
