LM5101AMR/NOPB

LM5101AMR/NOPB Overview

This product is manufactured by Texas Instruments. This device belongs to the High Side, Low Side type. The product can operate at a maximum temperature of SMD/SMT. SO-PowerPad-8 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Output current: 3 A Rise Time is 430 ns. 260 ns fall time Supply Voltage - Min: 9 V Supply Voltage - Max: 14 V Maximum propagation delay: 26 ns The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 1.47 mm. 4.93 mm long Texas Instruments is a trusted brand for quality electronics TTL. 4 ns maximum turn-off delay time The 4 ns. Yes regarding Moisture Sensitivity 7.5 V to 14 V operating supply voltage range Gate Drivers product type 95 of 100 PMIC - Power Management ICs as subcategory 1. 0.003323 oz of Unit Weight

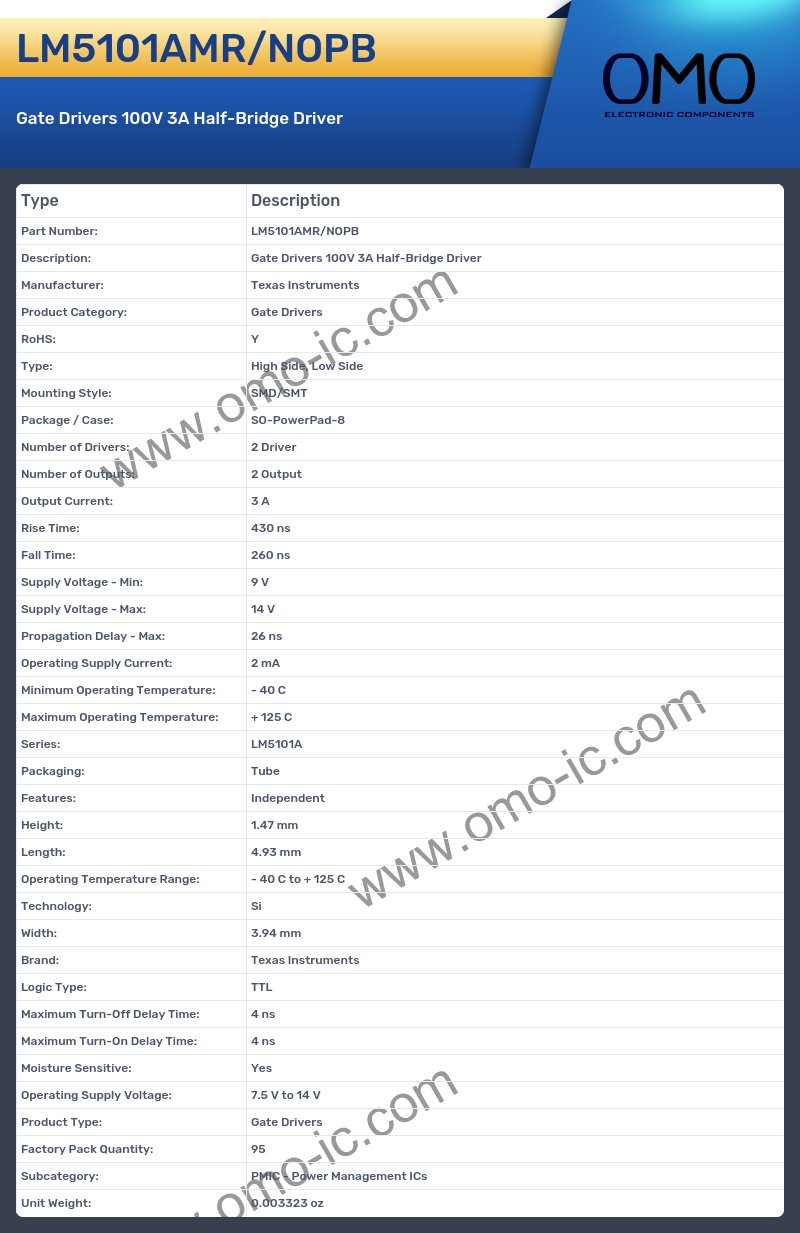

LM5101AMR/NOPB Image

LM5101AMR/NOPB Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Type: High Side, Low Side
• Mounting Style: SMD/SMT
• Package / Case: SO-PowerPad-8
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Output Current: 3 A
• Rise Time: 430 ns
• Fall Time: 260 ns
• Supply Voltage - Min: 9 V
• Supply Voltage - Max: 14 V
• Propagation Delay - Max: 26 ns
• Operating Supply Current: 2 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: LM5101A
• Packaging: Tube
• Features: Independent
• Height: 1.47 mm
• Length: 4.93 mm
• Operating Temperature Range: - 40 C to + 125 C
• Technology: Si
• Width: 3.94 mm
• Brand: Texas Instruments
• Logic Type: TTL
• Maximum Turn-Off Delay Time: 4 ns
• Maximum Turn-On Delay Time: 4 ns
• Moisture Sensitive: Yes
• Operating Supply Voltage: 7.5 V to 14 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 95
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.003323 oz
