LTC1595BIS8#PBF

LTC1595BIS8#PBF Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. 1 us settling time Interface Type: Serial SPI External is the reference type. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SO-8 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.75 mm. Digital input type The output type is Current. This device belongs to the Multiplying DAC type. R-2R architecture Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. The 1 LSB, ensuring accurate and precise analog-to-digital conversion. 16 LSB is 0.2%. INL is within 2 LSB 0.055 mW DACs - Digital to Analog Converters product type 100 of 100 Data Converter ICs as subcategory THD is as low as 108 dB.

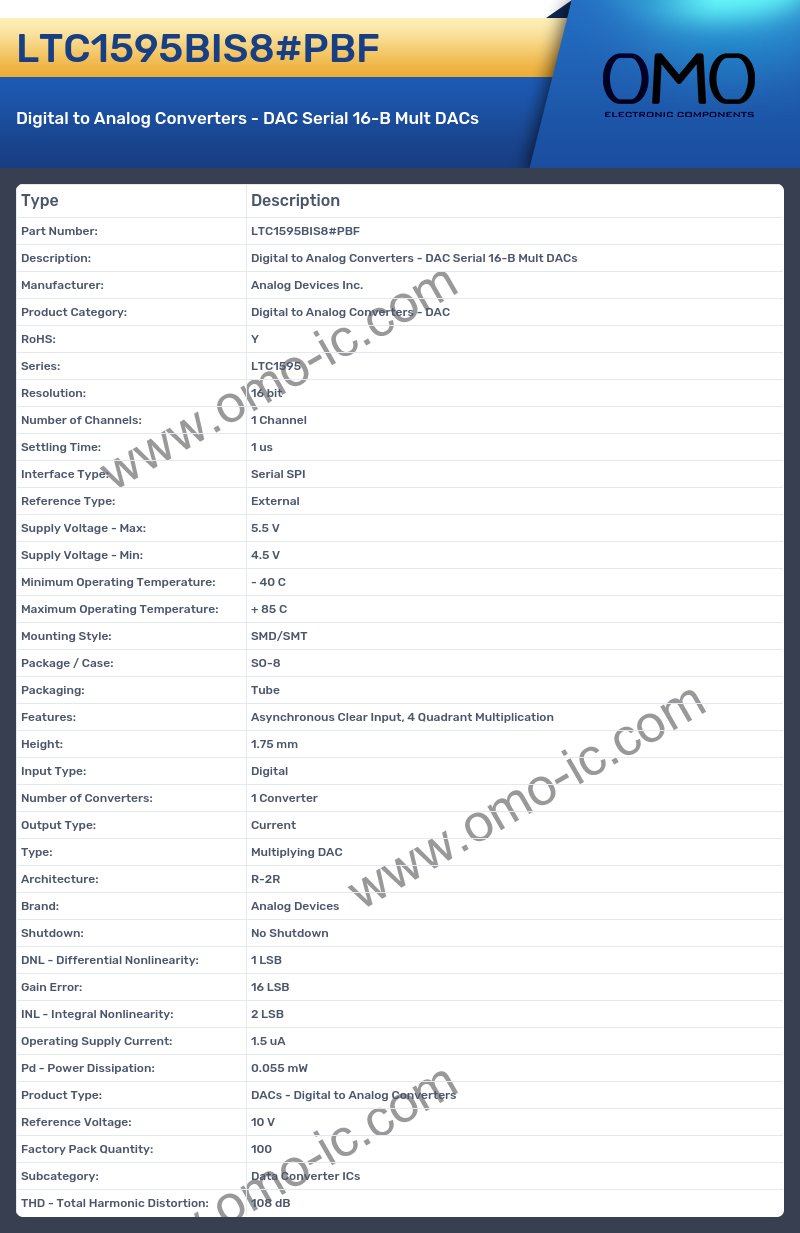

LTC1595BIS8#PBF Image

LTC1595BIS8#PBF Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: Y
• Series: LTC1595
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Settling Time: 1 us
• Interface Type: Serial SPI
• Reference Type: External
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SO-8
• Packaging: Tube
• Features: Asynchronous Clear Input, 4 Quadrant Multiplication
• Height: 1.75 mm
• Input Type: Digital
• Number of Converters: 1 Converter
• Output Type: Current
• Type: Multiplying DAC
• Architecture: R-2R
• Brand: Analog Devices
• Shutdown: No Shutdown
• DNL - Differential Nonlinearity: 1 LSB
• Gain Error: 16 LSB
• INL - Integral Nonlinearity: 2 LSB
• Operating Supply Current: 1.5 uA
• Pd - Power Dissipation: 0.055 mW
• Product Type: DACs - Digital to Analog Converters
• Reference Voltage: 10 V
• Factory Pack Quantity: 100
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: 108 dB
