M74HC138TTR

M74HC138TTR Overview

This product is manufactured by STMicroelectronics. Decoders The product uses the 74HC logic family. Supply Voltage - Min: 2 V Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-16 package/case type is utilized by this product. Reel packaging for easy dispensing t's a The M74HC138 is an high speed CMOS 3 TO 8 LINE DECODER The height of the product is 1 mm. 0.5 to + 0.5 V Input Voltage 5 mm long This product has 1 Circuit circuit. Output current: 25 mA Output Voltage is 0.5 V to 0.5 V STMicroelectronics is a trusted brand for quality electronics Decoder. Maximum supply current: 0.004 mA This product has a - 5.2 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 5.2 mA 2 V to 6 V operating supply voltage range 500 mW (1/2 W) Encoders, Decoders, Multiplexers & Demultiplexers product type 2500 of 100 Logic ICs as subcategory 1. 0.006102 oz of Unit Weight

M74HC138TTR Image

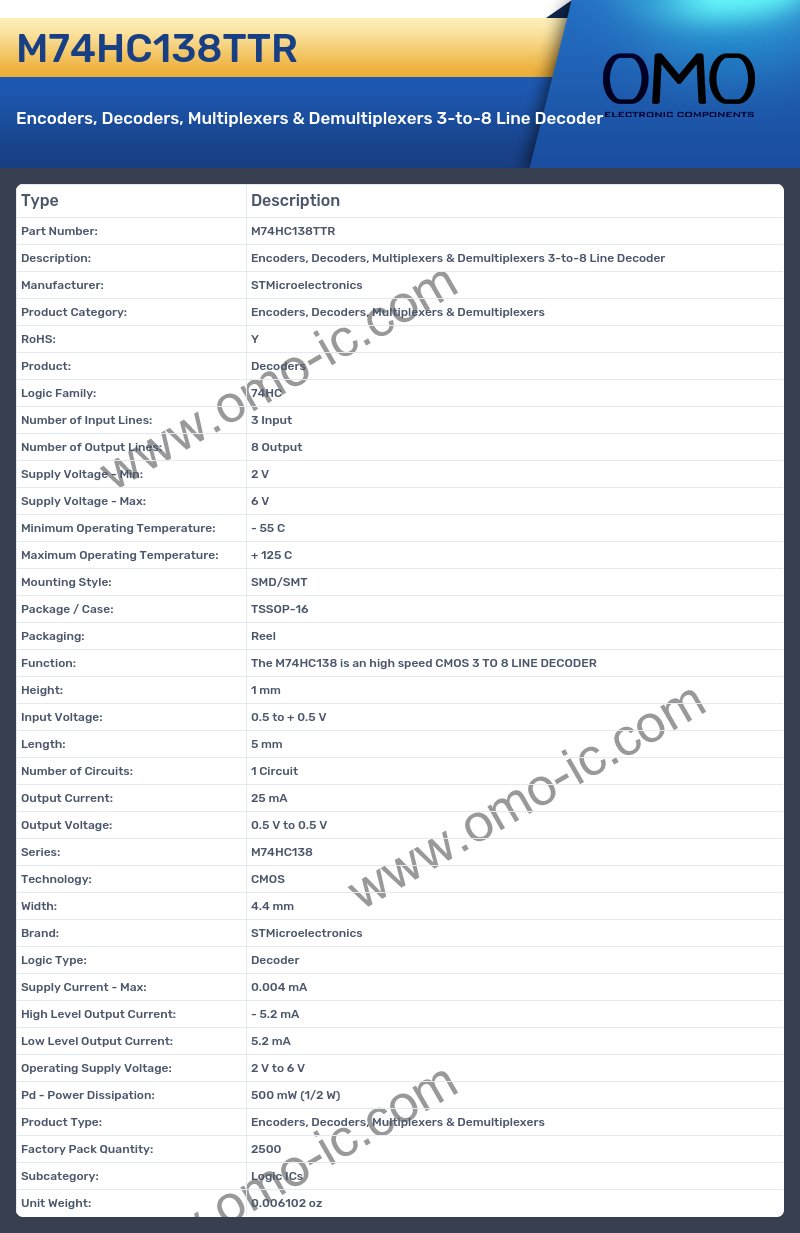

M74HC138TTR Specifications

• Manufacturer: STMicroelectronics
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Decoders
• Logic Family: 74HC
• Number of Input Lines: 3 Input
• Number of Output Lines: 8 Output
• Supply Voltage - Min: 2 V
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-16
• Packaging: Reel
• Function: The M74HC138 is an high speed CMOS 3 TO 8 LINE DECODER
• Height: 1 mm
• Input Voltage: 0.5 to + 0.5 V
• Length: 5 mm
• Number of Circuits: 1 Circuit
• Output Current: 25 mA
• Output Voltage: 0.5 V to 0.5 V
• Series: M74HC138
• Technology: CMOS
• Width: 4.4 mm
• Brand: STMicroelectronics
• Logic Type: Decoder
• Supply Current - Max: 0.004 mA
• High Level Output Current: - 5.2 mA
• Low Level Output Current: 5.2 mA
• Operating Supply Voltage: 2 V to 6 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Unit Weight: 0.006102 oz
