M74HC533TTR

M74HC533TTR Overview

This product is manufactured by STMicroelectronics. This product has 8 Circuit circuit. D-Type Latch. The product uses the 74HC logic family. Polarity type: Inverting This product has a - 7.8 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 32 mA The propagation delay time is 175 ns at 2 V, 35 ns at 4.5 V, 30 ns at 6 V. Supply Voltage - Max: 6 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. TSSOP-20 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Transparent The height of the product is 1 mm. 6.5 mm long The output type is 3-State. This device belongs to the D-Type type. STMicroelectronics is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. This product is equipped with 8 Channels for efficient performance. Maximum supply current: 4 uA Yes regarding Moisture Sensitivity 2 V to 6 V operating supply voltage range Latches product type No Reset Reset Type 2500 of 100 Logic ICs as subcategory 1. 0.006737 oz of Unit Weight

M74HC533TTR Image

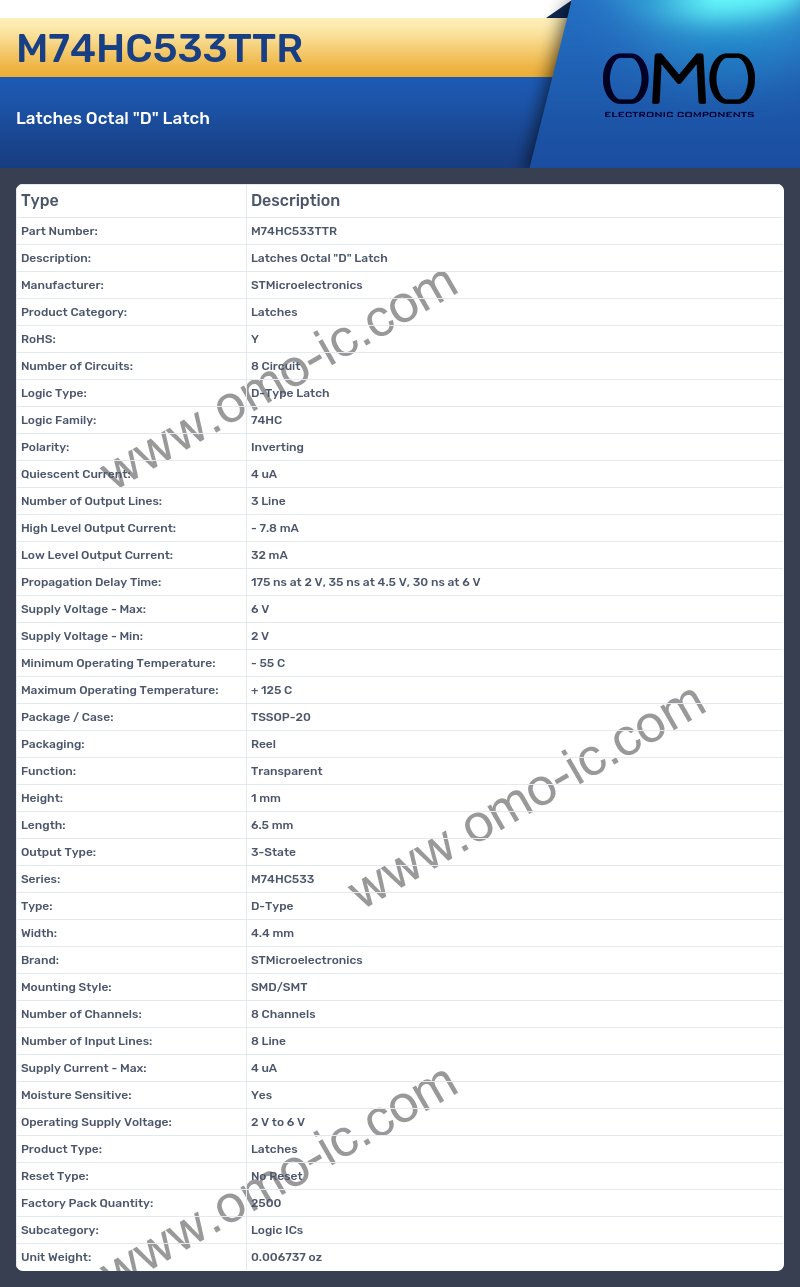

M74HC533TTR Specifications

• Manufacturer: STMicroelectronics
• Product Category: Latches
• RoHS: Y
• Number of Circuits: 8 Circuit
• Logic Type: D-Type Latch
• Logic Family: 74HC
• Polarity: Inverting
• Quiescent Current: 4 uA
• Number of Output Lines: 3 Line
• High Level Output Current: - 7.8 mA
• Low Level Output Current: 32 mA
• Propagation Delay Time: 175 ns at 2 V, 35 ns at 4.5 V, 30 ns at 6 V
• Supply Voltage - Max: 6 V
• Supply Voltage - Min: 2 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Package / Case: TSSOP-20
• Packaging: Reel
• Function: Transparent
• Height: 1 mm
• Length: 6.5 mm
• Output Type: 3-State
• Series: M74HC533
• Type: D-Type
• Width: 4.4 mm
• Brand: STMicroelectronics
• Mounting Style: SMD/SMT
• Number of Channels: 8 Channels
• Number of Input Lines: 8 Line
• Supply Current - Max: 4 uA
• Moisture Sensitive: Yes
• Operating Supply Voltage: 2 V to 6 V
• Product Type: Latches
• Reset Type: No Reset
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Unit Weight: 0.006737 oz
