M74HC76M1R

M74HC76M1R Overview

This product is manufactured by STMicroelectronics. This product has 2 circuit. The product uses the HC logic family. CMOS. Polarity type: Inverting/Non-Inverting Single-Ended input type The output type is Differential. The propagation delay time is 125 ns. This product has a - 5.2 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 5.2 mA Supply Voltage - Min: 2 V Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a JK Type The height of the product is 1.65 mm. 10 mm long STMicroelectronics is a trusted brand for quality electronics This product is equipped with 2 for efficient performance. 2.5 V, 3.3 V, 5 V operating supply voltage range Flip Flops product type Set, Reset Reset Type Logic ICs as subcategory 1. 0.008536 oz of Unit Weight

M74HC76M1R Image

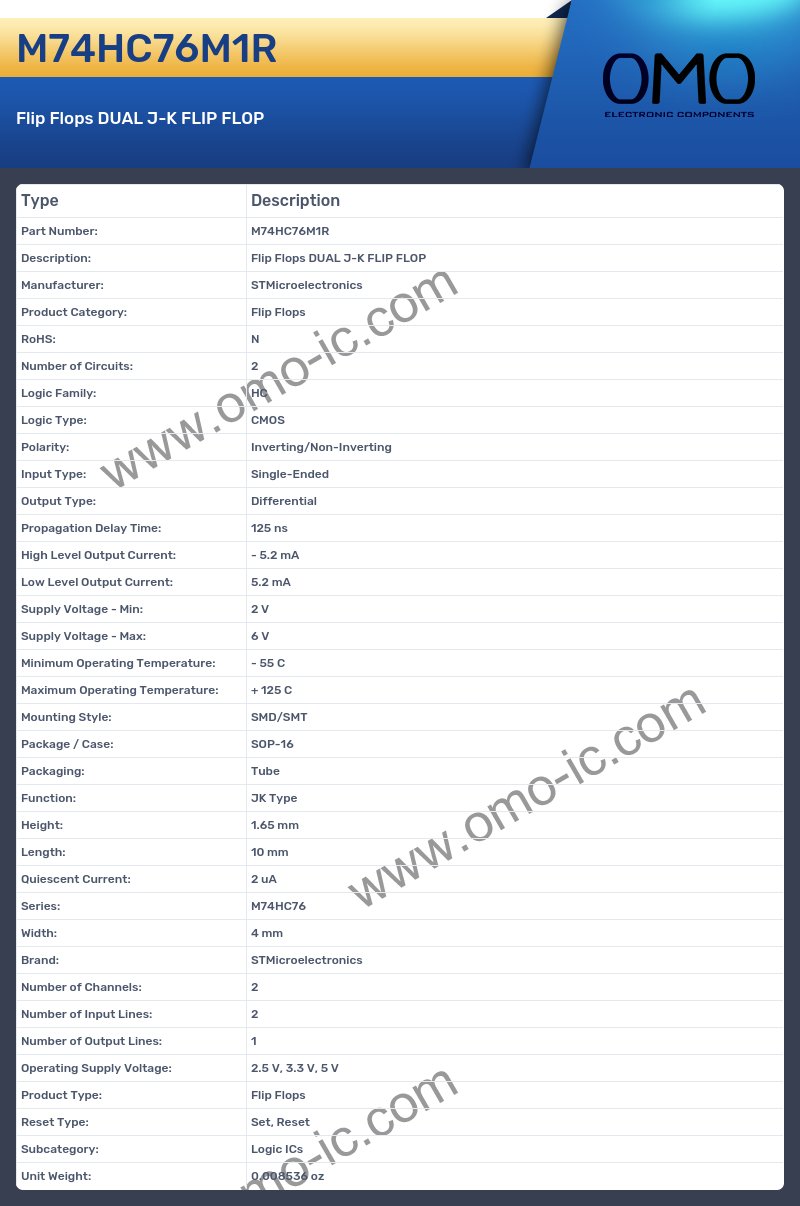

M74HC76M1R Specifications

• Manufacturer: STMicroelectronics
• Product Category: Flip Flops
• RoHS: N
• Number of Circuits: 2
• Logic Family: HC
• Logic Type: CMOS
• Polarity: Inverting/Non-Inverting
• Input Type: Single-Ended
• Output Type: Differential
• Propagation Delay Time: 125 ns
• High Level Output Current: - 5.2 mA
• Low Level Output Current: 5.2 mA
• Supply Voltage - Min: 2 V
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Packaging: Tube
• Function: JK Type
• Height: 1.65 mm
• Length: 10 mm
• Quiescent Current: 2 uA
• Series: M74HC76
• Width: 4 mm
• Brand: STMicroelectronics
• Number of Channels: 2
• Number of Input Lines: 2
• Number of Output Lines: 1
• Operating Supply Voltage: 2.5 V, 3.3 V, 5 V
• Product Type: Flip Flops
• Reset Type: Set, Reset
• Subcategory: Logic ICs
• Unit Weight: 0.008536 oz
