OP77EZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. This product has an 2 nA of 5 uA for precise signal processing. Supply Voltage - Max: 18 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 25 C. The product can operate at a maximum temperature of + 85 C. This product does not have a No Shutdown feature, ensuring continuous operation. The product can operate at a maximum temperature of Through Hole. CDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 3.56 mm (Max). 10.29 mm (Max) long Precision Amplifiers This device belongs to the Operational type. Analog Devices is a trusted brand for quality electronics Maximum input voltage range of 14 V Gain ratio is 5000 V/mV. 1. The maximum dual supply voltage is +/- 22 V. +/- 3 V minimum dual supply voltage 3 V to 18 V operating supply voltage range 60 mW Precision Amplifiers product type This product has a 0.7 uV/V of 50 dB, providing reliable power supply noise rejection. 48 of 100 Amplifier ICs as subcategory 1. 0.036015 oz of Unit Weight

OP77EZ Image

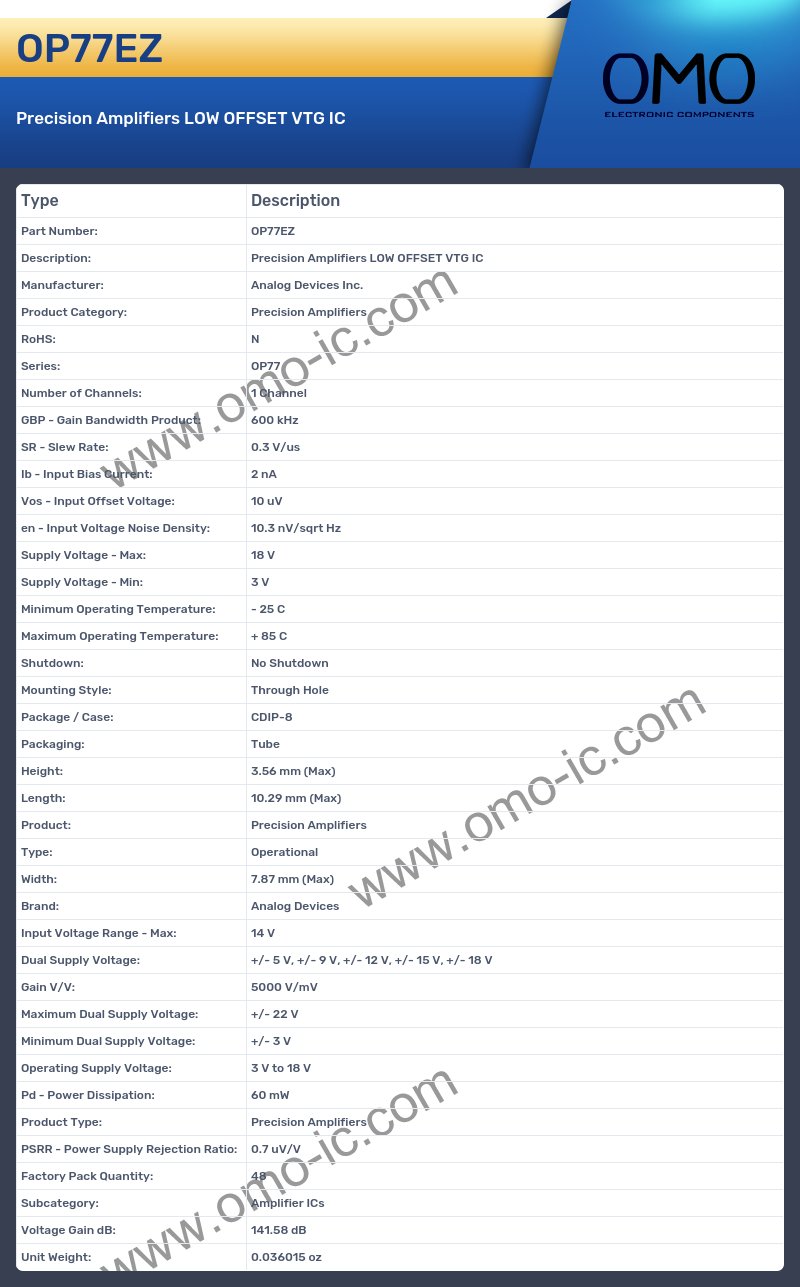

OP77EZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Precision Amplifiers
• RoHS: N
• Series: OP77
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 600 kHz
• SR - Slew Rate: 0.3 V/us
• Ib - Input Bias Current: 2 nA
• Vos - Input Offset Voltage: 10 uV
• en - Input Voltage Noise Density: 10.3 nV/sqrt Hz
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 3 V
• Minimum Operating Temperature: - 25 C
• Maximum Operating Temperature: + 85 C
• Shutdown: No Shutdown
• Mounting Style: Through Hole
• Package / Case: CDIP-8
• Packaging: Tube
• Height: 3.56 mm (Max)
• Length: 10.29 mm (Max)
• Product: Precision Amplifiers
• Type: Operational
• Width: 7.87 mm (Max)
• Brand: Analog Devices
• Input Voltage Range - Max: 14 V
• Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V, +/- 18 V
• Gain V/V: 5000 V/mV
• Maximum Dual Supply Voltage: +/- 22 V
• Minimum Dual Supply Voltage: +/- 3 V
• Operating Supply Voltage: 3 V to 18 V
• Pd - Power Dissipation: 60 mW
• Product Type: Precision Amplifiers
• PSRR - Power Supply Rejection Ratio: 0.7 uV/V
• Factory Pack Quantity: 48
• Subcategory: Amplifier ICs
• Voltage Gain dB: 141.58 dB
• Unit Weight: 0.036015 oz
