SN74ABT2244ADW

SN74ABT2244ADW Overview

This product is manufactured by Texas Instruments. Polarity type: Non-Inverting Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-20 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Buffer/Line Driver The height of the product is 2.35 mm. 12.8 mm long The output type is 3-State. Texas Instruments is a trusted brand for quality electronics The product uses the ABT logic family. Octal Buffer and Line/MOS Driver. This product is equipped with 8 for efficient performance. Maximum supply current: 30000 uA This product has a - 32 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 12 mA 4.5 V to 5.5 V operating supply voltage range Buffers & Line Drivers product type The propagation delay time is 5.3 ns. 25 of 100 Logic ICs as subcategory 1. 0.017662 oz of Unit Weight

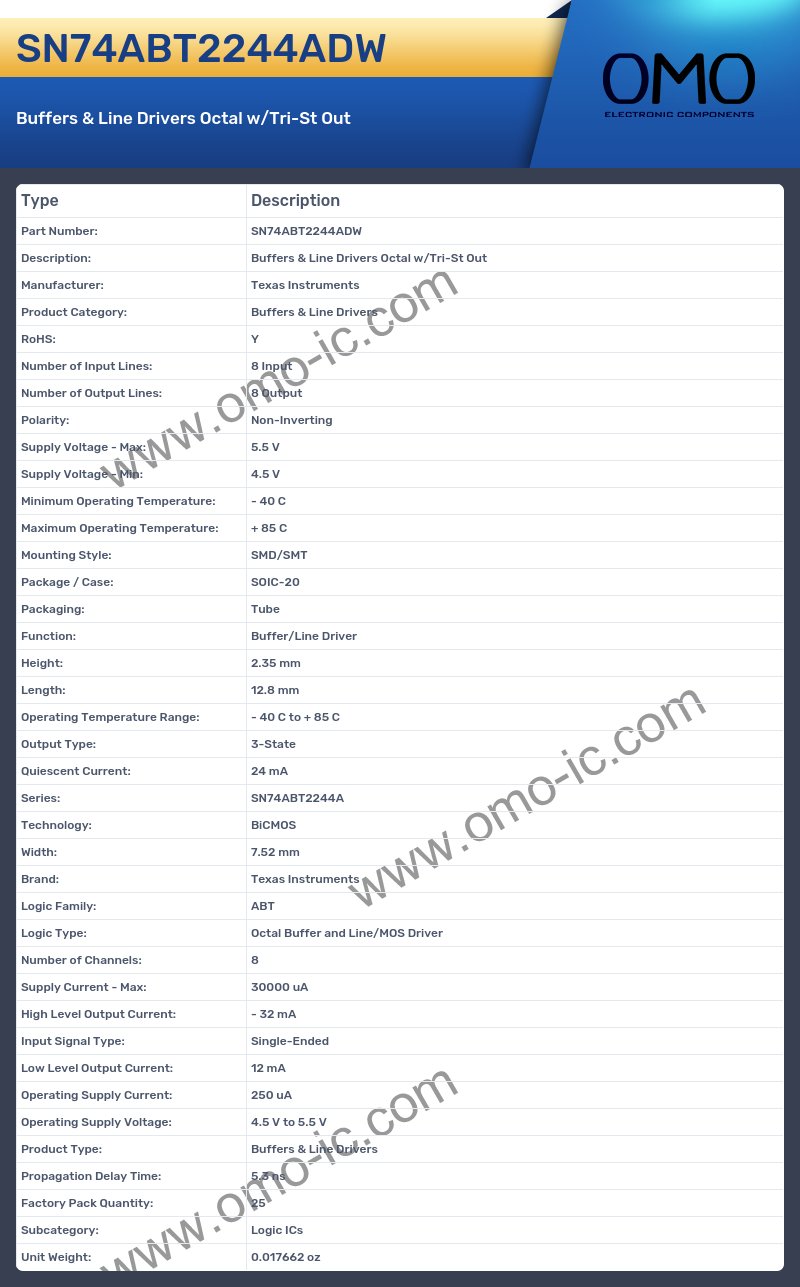

SN74ABT2244ADW Image

SN74ABT2244ADW Specifications

• Manufacturer: Texas Instruments
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 8 Input
• Number of Output Lines: 8 Output
• Polarity: Non-Inverting
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-20
• Packaging: Tube
• Function: Buffer/Line Driver
• Height: 2.35 mm
• Length: 12.8 mm
• Operating Temperature Range: - 40 C to + 85 C
• Output Type: 3-State
• Quiescent Current: 24 mA
• Series: SN74ABT2244A
• Technology: BiCMOS
• Width: 7.52 mm
• Brand: Texas Instruments
• Logic Family: ABT
• Logic Type: Octal Buffer and Line/MOS Driver
• Number of Channels: 8
• Supply Current - Max: 30000 uA
• High Level Output Current: - 32 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 12 mA
• Operating Supply Current: 250 uA
• Operating Supply Voltage: 4.5 V to 5.5 V
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 5.3 ns
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.017662 oz
