SN74ABT823DWR

SN74ABT823DWR Overview

This product is manufactured by Texas Instruments. This product has 1 circuit. The product uses the ABT logic family. Bus Interface Flip-Flop. Polarity type: Non-Inverting TTL input type The output type is 3-State. The propagation delay time is 6.1 ns. This product has a - 32 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 64 mA Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-24 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Tri-St 9bit Bus Int The height of the product is 2.35 mm. 15.4 mm long Texas Instruments is a trusted brand for quality electronics This product is equipped with 9 for efficient performance. 5 V operating supply voltage range Flip Flops product type Master Reset Reset Type 2000 of 100 Logic ICs as subcategory 1. 0.022025 oz of Unit Weight

SN74ABT823DWR Image

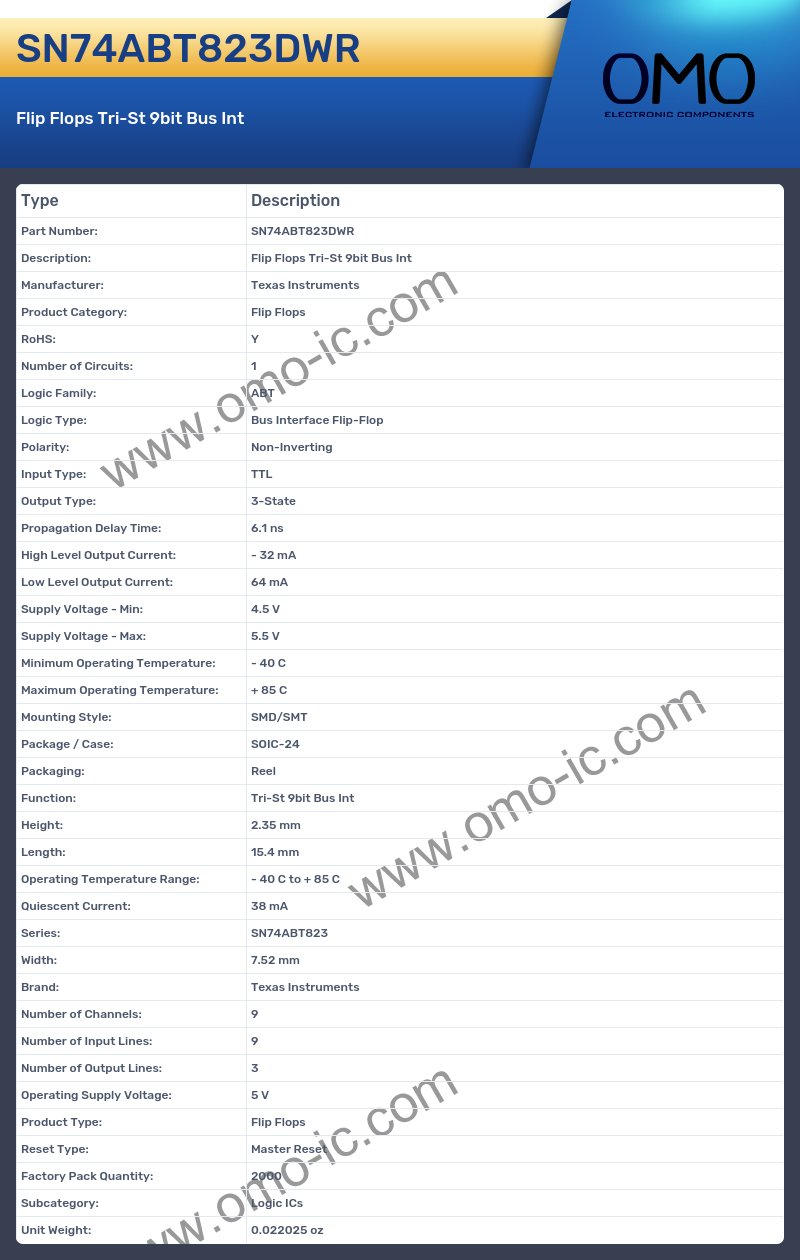

SN74ABT823DWR Specifications

• Manufacturer: Texas Instruments
• Product Category: Flip Flops
• RoHS: Y
• Number of Circuits: 1
• Logic Family: ABT
• Logic Type: Bus Interface Flip-Flop
• Polarity: Non-Inverting
• Input Type: TTL
• Output Type: 3-State
• Propagation Delay Time: 6.1 ns
• High Level Output Current: - 32 mA
• Low Level Output Current: 64 mA
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-24
• Packaging: Reel
• Function: Tri-St 9bit Bus Int
• Height: 2.35 mm
• Length: 15.4 mm
• Operating Temperature Range: - 40 C to + 85 C
• Quiescent Current: 38 mA
• Series: SN74ABT823
• Width: 7.52 mm
• Brand: Texas Instruments
• Number of Channels: 9
• Number of Input Lines: 9
• Number of Output Lines: 3
• Operating Supply Voltage: 5 V
• Product Type: Flip Flops
• Reset Type: Master Reset
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.022025 oz
