SN74AC04PW

SN74AC04PW Overview

This product is manufactured by Texas Instruments. This product has 6 Circuit circuit. The product uses the AC logic family. CMOS. Supply Voltage - Max: 6 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Inverter CMOS input type The output type is CMOS. Texas Instruments is a trusted brand for quality electronics This product has a - 24 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA 5 V operating supply voltage range Inverters product type The propagation delay time is 7.5 ns. 90 of 100 Logic ICs as subcategory 1. 0.002018 oz of Unit Weight

SN74AC04PW Image

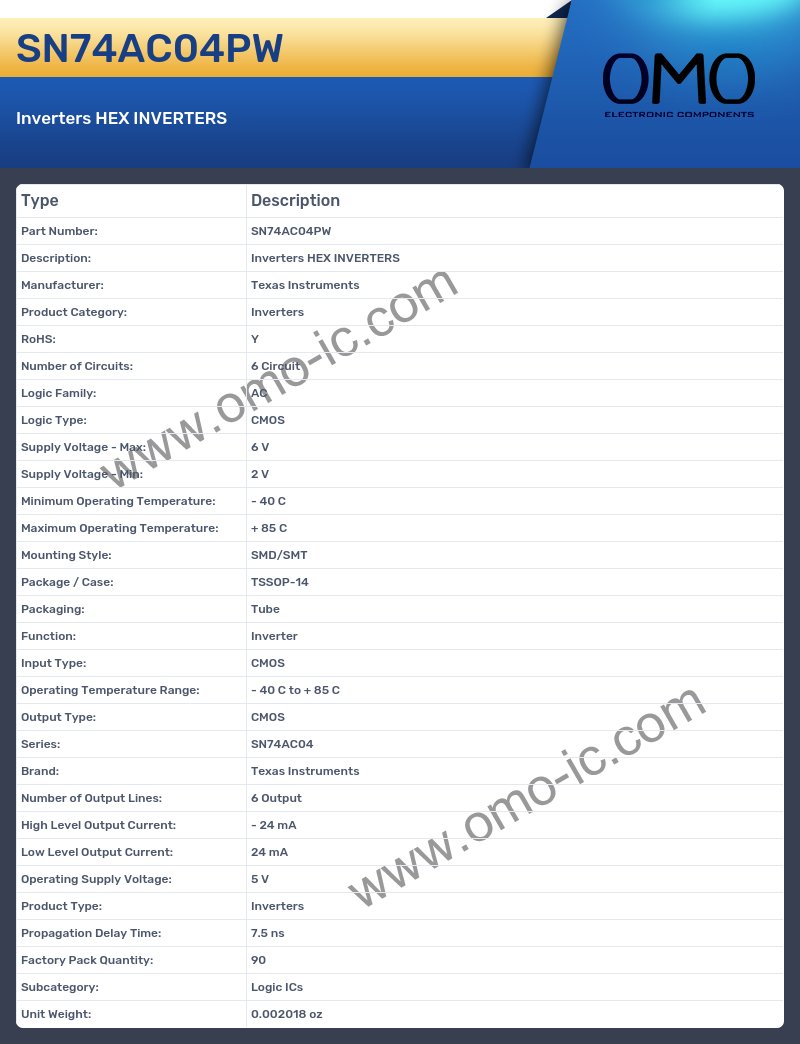

SN74AC04PW Specifications

• Manufacturer: Texas Instruments
• Product Category: Inverters
• RoHS: Y
• Number of Circuits: 6 Circuit
• Logic Family: AC
• Logic Type: CMOS
• Supply Voltage - Max: 6 V
• Supply Voltage - Min: 2 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-14
• Packaging: Tube
• Function: Inverter
• Input Type: CMOS
• Operating Temperature Range: - 40 C to + 85 C
• Output Type: CMOS
• Series: SN74AC04
• Brand: Texas Instruments
• Number of Output Lines: 6 Output
• High Level Output Current: - 24 mA
• Low Level Output Current: 24 mA
• Operating Supply Voltage: 5 V
• Product Type: Inverters
• Propagation Delay Time: 7.5 ns
• Factory Pack Quantity: 90
• Subcategory: Logic ICs
• Unit Weight: 0.002018 oz
