SN74AC564DWG4

SN74AC564DWG4 Overview

This product is manufactured by Texas Instruments. This product has 8 circuit. The product uses the AC logic family. D-Type Flip-Flop. Polarity type: Inverting CMOS input type The output type is 3-State. The propagation delay time is 14 ns. This product has a - 24 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA Supply Voltage - Min: 2 V Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-20 package/case type is utilized by this product. Tube packaging for easy dispensing t's a D-Type Bus Interface The height of the product is 2.35 mm. 12.8 mm long Texas Instruments is a trusted brand for quality electronics This product is equipped with 8 for efficient performance. 5 V operating supply voltage range Flip Flops product type 25 of 100 Logic ICs as subcategory 1. 0.017662 oz of Unit Weight

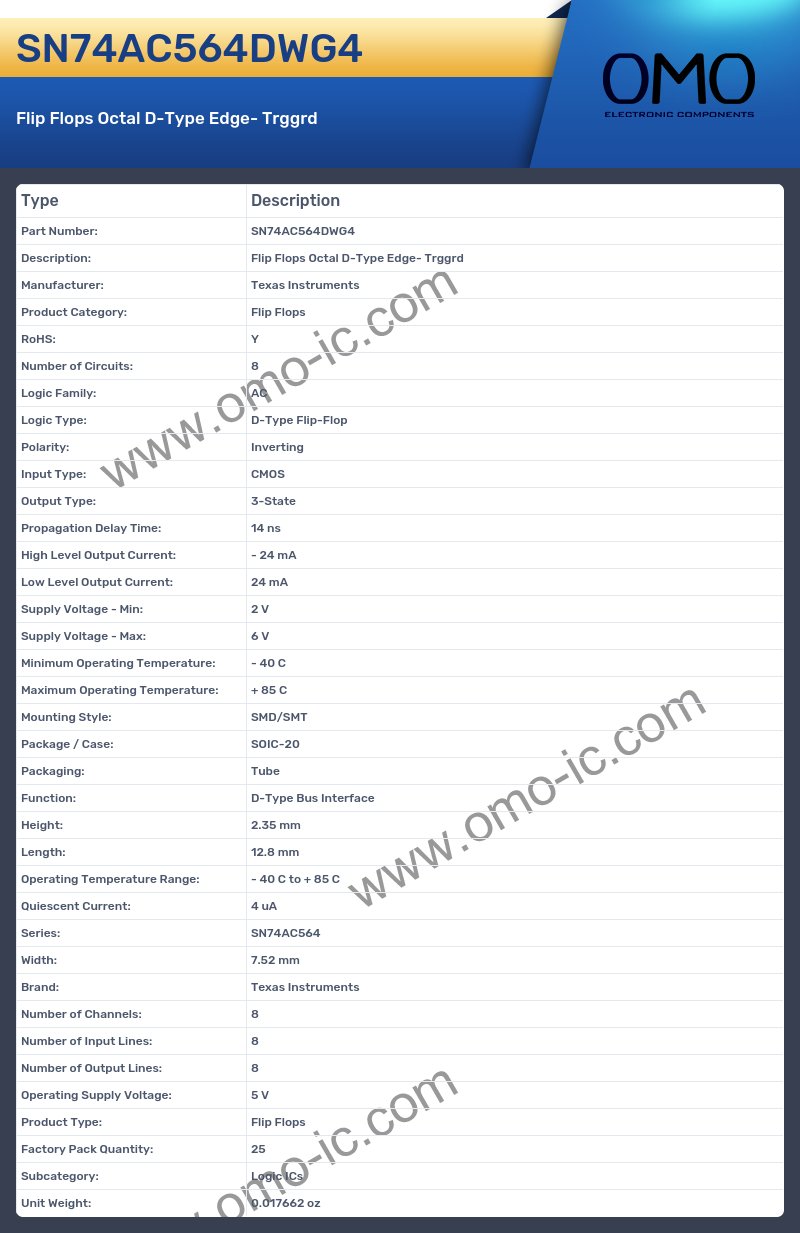

SN74AC564DWG4 Image

SN74AC564DWG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Flip Flops
• RoHS: Y
• Number of Circuits: 8
• Logic Family: AC
• Logic Type: D-Type Flip-Flop
• Polarity: Inverting
• Input Type: CMOS
• Output Type: 3-State
• Propagation Delay Time: 14 ns
• High Level Output Current: - 24 mA
• Low Level Output Current: 24 mA
• Supply Voltage - Min: 2 V
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-20
• Packaging: Tube
• Function: D-Type Bus Interface
• Height: 2.35 mm
• Length: 12.8 mm
• Operating Temperature Range: - 40 C to + 85 C
• Quiescent Current: 4 uA
• Series: SN74AC564
• Width: 7.52 mm
• Brand: Texas Instruments
• Number of Channels: 8
• Number of Input Lines: 8
• Number of Output Lines: 8
• Operating Supply Voltage: 5 V
• Product Type: Flip Flops
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.017662 oz
