SN74ACT04N

SN74ACT04N Overview

This product is manufactured by Texas Instruments. This product has 6 Circuit circuit. The product uses the ACT logic family. CMOS. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. PDIP-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Inverter TTL input type The output type is CMOS. Texas Instruments is a trusted brand for quality electronics This product has a - 24 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA 5 V operating supply voltage range Inverters product type The propagation delay time is 9 ns. 25 of 100 Logic ICs as subcategory 1. 0.032734 oz of Unit Weight

SN74ACT04N Image

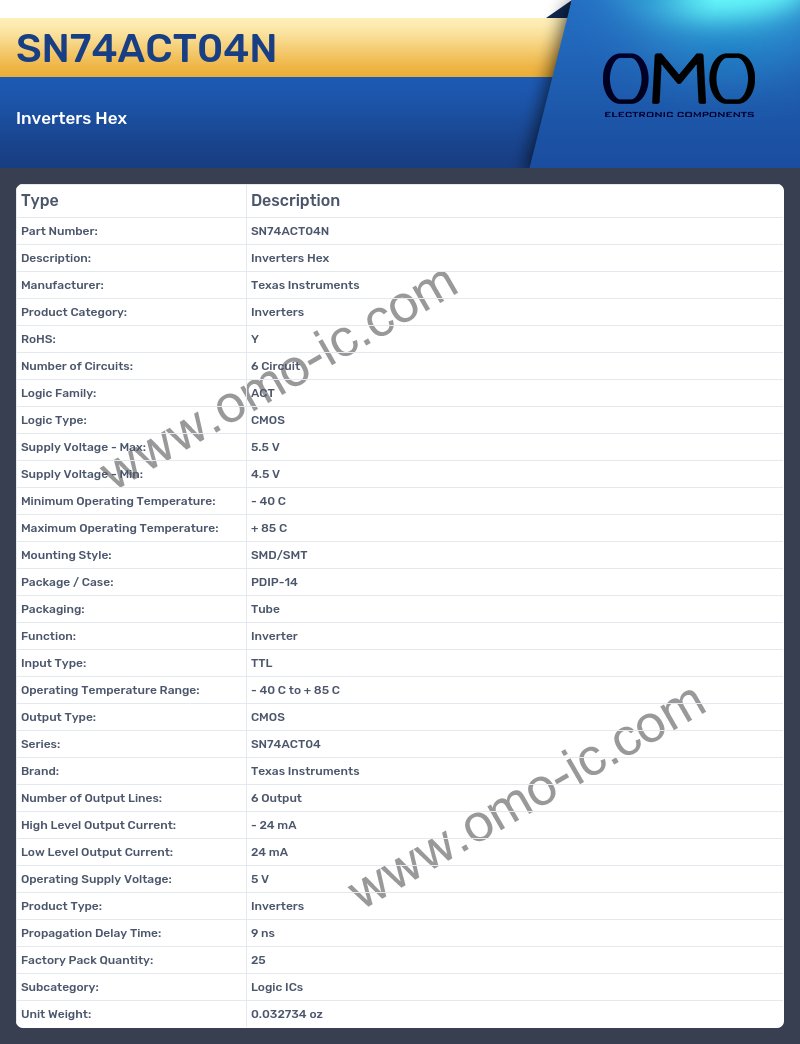

SN74ACT04N Specifications

• Manufacturer: Texas Instruments
• Product Category: Inverters
• RoHS: Y
• Number of Circuits: 6 Circuit
• Logic Family: ACT
• Logic Type: CMOS
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: PDIP-14
• Packaging: Tube
• Function: Inverter
• Input Type: TTL
• Operating Temperature Range: - 40 C to + 85 C
• Output Type: CMOS
• Series: SN74ACT04
• Brand: Texas Instruments
• Number of Output Lines: 6 Output
• High Level Output Current: - 24 mA
• Low Level Output Current: 24 mA
• Operating Supply Voltage: 5 V
• Product Type: Inverters
• Propagation Delay Time: 9 ns
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.032734 oz
