SN74AHCT126PW

SN74AHCT126PW Overview

This product is manufactured by Texas Instruments. Polarity type: Non-Inverting Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Buffer/Line Driver The height of the product is 1.05 mm (Max). 5.1 mm (Max) long The output type is 3-State. Texas Instruments is a trusted brand for quality electronics The product uses the AHCT logic family. CMOS. This product is equipped with 4 for efficient performance. Maximum supply current: 2 uA This product has a - 8 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 8 mA 5 V operating supply voltage range Buffers & Line Drivers product type The propagation delay time is 7.5 ns. 90 of 100 Logic ICs as subcategory 1. 0.002018 oz of Unit Weight

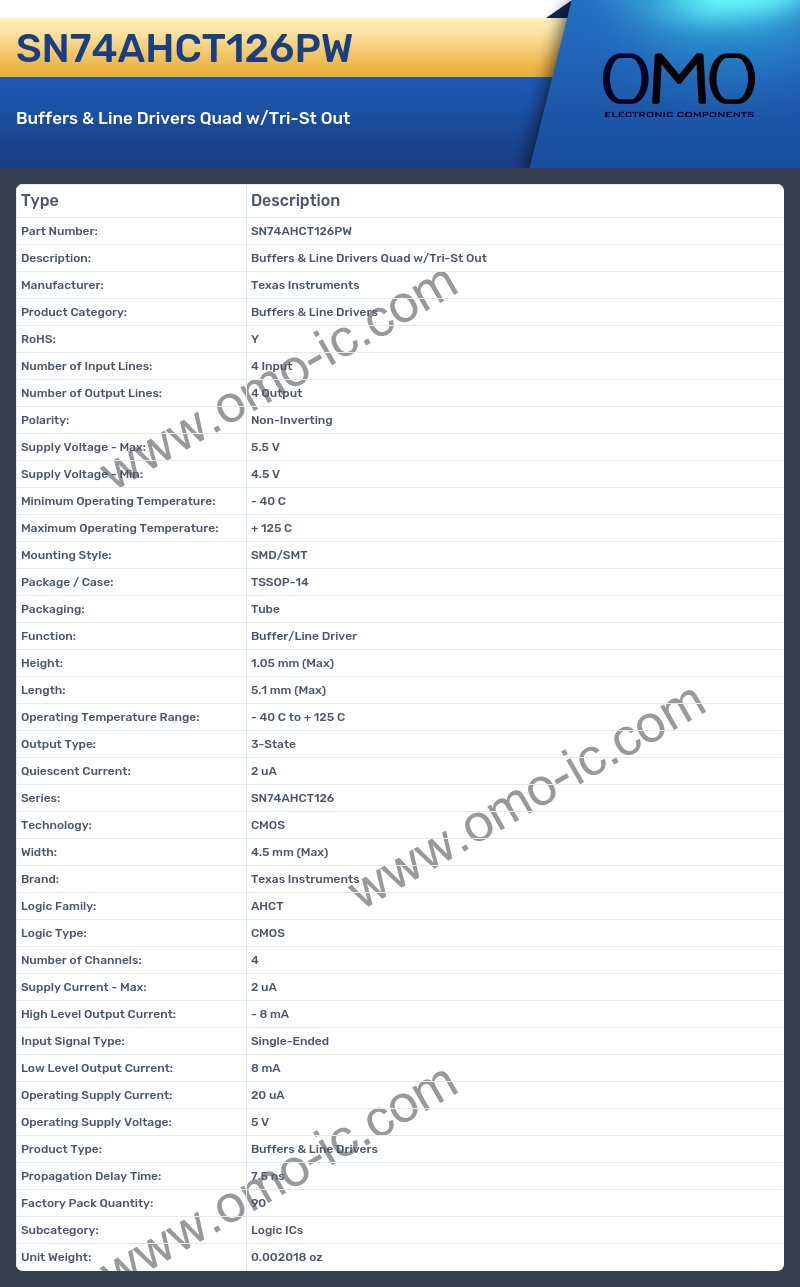

SN74AHCT126PW Image

SN74AHCT126PW Specifications

• Manufacturer: Texas Instruments
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 4 Input
• Number of Output Lines: 4 Output
• Polarity: Non-Inverting
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-14
• Packaging: Tube
• Function: Buffer/Line Driver
• Height: 1.05 mm (Max)
• Length: 5.1 mm (Max)
• Operating Temperature Range: - 40 C to + 125 C
• Output Type: 3-State
• Quiescent Current: 2 uA
• Series: SN74AHCT126
• Technology: CMOS
• Width: 4.5 mm (Max)
• Brand: Texas Instruments
• Logic Family: AHCT
• Logic Type: CMOS
• Number of Channels: 4
• Supply Current - Max: 2 uA
• High Level Output Current: - 8 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 8 mA
• Operating Supply Current: 20 uA
• Operating Supply Voltage: 5 V
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 7.5 ns
• Factory Pack Quantity: 90
• Subcategory: Logic ICs
• Unit Weight: 0.002018 oz
