SN74AS04N

SN74AS04N Overview

This product is manufactured by Texas Instruments. This product has 6 Circuit circuit. The product uses the AS logic family. Bipolar. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. PDIP-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Inverter TTL input type The output type is CMOS. Texas Instruments is a trusted brand for quality electronics This product has a - 2 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 20 mA 5 V operating supply voltage range Inverters product type The propagation delay time is 11 ns. 25 of 100 Logic ICs as subcategory 1. 0.032734 oz of Unit Weight

SN74AS04N Image

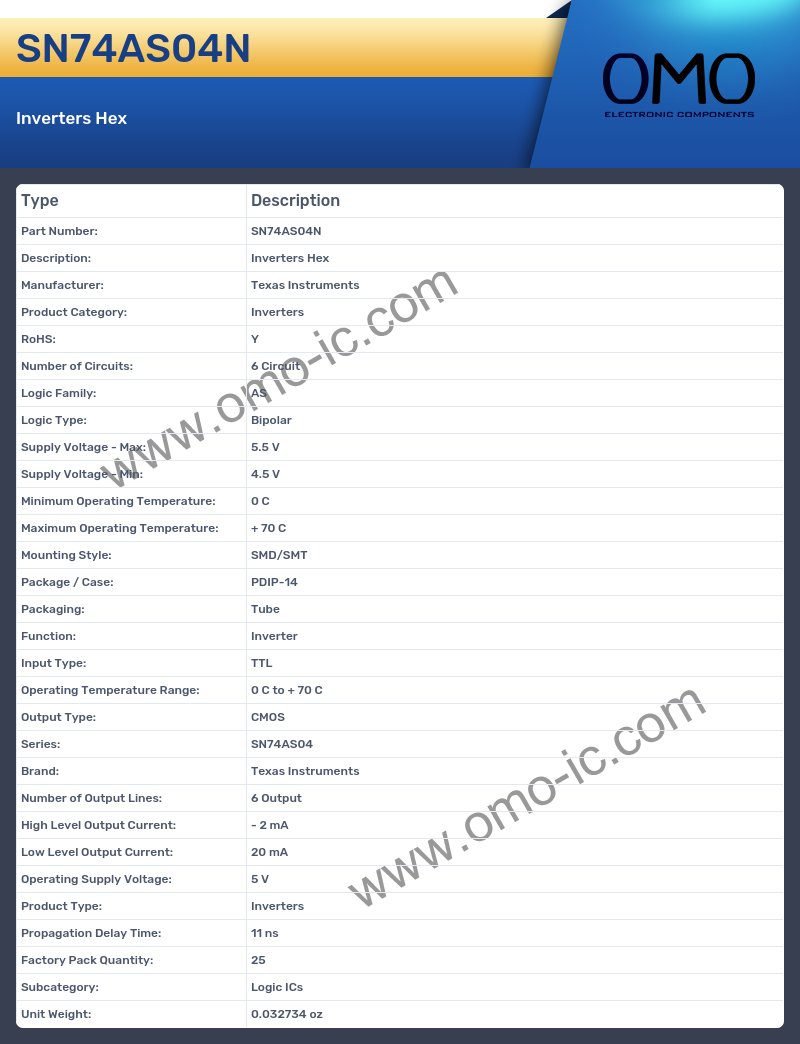

SN74AS04N Specifications

• Manufacturer: Texas Instruments
• Product Category: Inverters
• RoHS: Y
• Number of Circuits: 6 Circuit
• Logic Family: AS
• Logic Type: Bipolar
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: PDIP-14
• Packaging: Tube
• Function: Inverter
• Input Type: TTL
• Operating Temperature Range: 0 C to + 70 C
• Output Type: CMOS
• Series: SN74AS04
• Brand: Texas Instruments
• Number of Output Lines: 6 Output
• High Level Output Current: - 2 mA
• Low Level Output Current: 20 mA
• Operating Supply Voltage: 5 V
• Product Type: Inverters
• Propagation Delay Time: 11 ns
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.032734 oz
