SN74AS11DR

SN74AS11DR Overview

This product is manufactured by Texas Instruments. Single-Function Gate AND logic function The product uses the AS logic family. The product boasts a whopping 3 Gate gates for unparalleled processing power. This product has a - 2 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 20 mA The propagation delay time is 13 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Reel packaging for easy dispensing t's a AND The height of the product is 1.58 mm. TTL input type 8.65 mm long The output type is TTL. Texas Instruments is a trusted brand for quality electronics 3-Input AND. Number of bits: 3 bit 5 V operating supply voltage range Logic Gates product type 2500 of 100 Logic ICs as subcategory 1. 0.004564 oz of Unit Weight

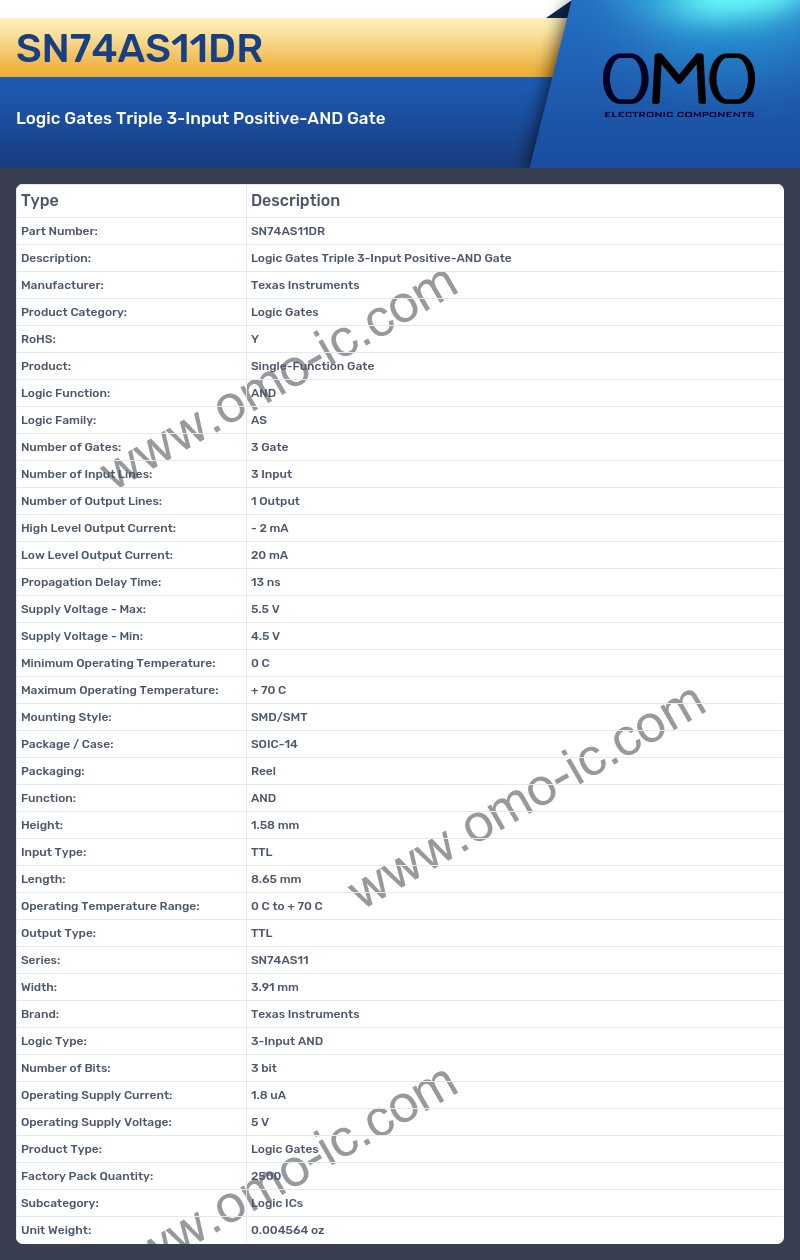

SN74AS11DR Image

SN74AS11DR Specifications

• Manufacturer: Texas Instruments
• Product Category: Logic Gates
• RoHS: Y
• Product: Single-Function Gate
• Logic Function: AND
• Logic Family: AS
• Number of Gates: 3 Gate
• Number of Input Lines: 3 Input
• Number of Output Lines: 1 Output
• High Level Output Current: - 2 mA
• Low Level Output Current: 20 mA
• Propagation Delay Time: 13 ns
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Packaging: Reel
• Function: AND
• Height: 1.58 mm
• Input Type: TTL
• Length: 8.65 mm
• Operating Temperature Range: 0 C to + 70 C
• Output Type: TTL
• Series: SN74AS11
• Width: 3.91 mm
• Brand: Texas Instruments
• Logic Type: 3-Input AND
• Number of Bits: 3 bit
• Operating Supply Current: 1.8 uA
• Operating Supply Voltage: 5 V
• Product Type: Logic Gates
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Unit Weight: 0.004564 oz
