SN74BCT2241N

SN74BCT2241N Overview

This product is manufactured by Texas Instruments. Polarity type: Non-Inverting Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of Through Hole. PDIP-20 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Buffer/Line Driver The height of the product is 4.57 mm. 24.33 mm long The output type is 3-State. Texas Instruments is a trusted brand for quality electronics The product uses the BCT logic family. Octal Buffer and Line/Mos Driver. This product is equipped with 8 for efficient performance. Maximum supply current: 76000 uA This product has a - 12 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 12 mA 4.5 V to 5.5 V operating supply voltage range Buffers & Line Drivers product type The propagation delay time is 6.6 ns at 5 V. 1 of 100 Logic ICs as subcategory 1. 0.079719 oz of Unit Weight

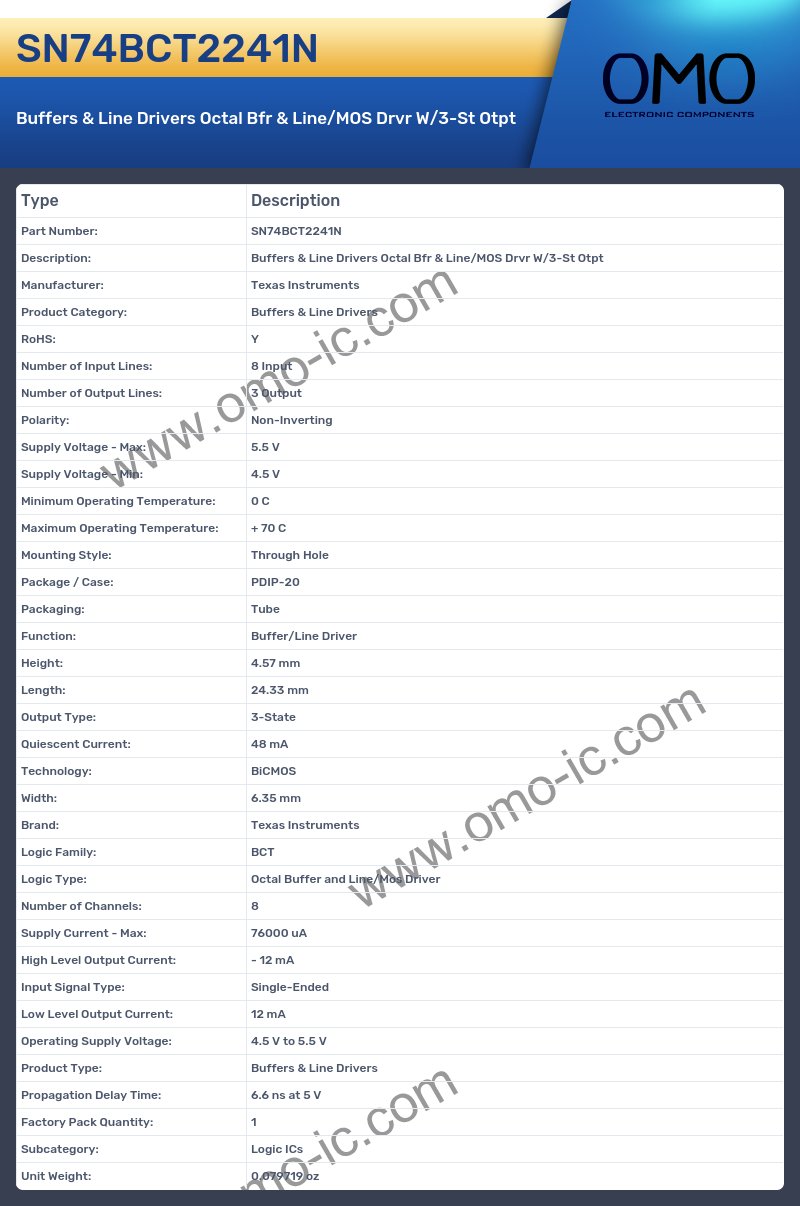

SN74BCT2241N Image

SN74BCT2241N Specifications

• Manufacturer: Texas Instruments
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 8 Input
• Number of Output Lines: 3 Output
• Polarity: Non-Inverting
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: Through Hole
• Package / Case: PDIP-20
• Packaging: Tube
• Function: Buffer/Line Driver
• Height: 4.57 mm
• Length: 24.33 mm
• Output Type: 3-State
• Quiescent Current: 48 mA
• Technology: BiCMOS
• Width: 6.35 mm
• Brand: Texas Instruments
• Logic Family: BCT
• Logic Type: Octal Buffer and Line/Mos Driver
• Number of Channels: 8
• Supply Current - Max: 76000 uA
• High Level Output Current: - 12 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 12 mA
• Operating Supply Voltage: 4.5 V to 5.5 V
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 6.6 ns at 5 V
• Factory Pack Quantity: 1
• Subcategory: Logic ICs
• Unit Weight: 0.079719 oz
