SN74HC258D

SN74HC258D Overview

This product is manufactured by Texas Instruments. Selectors / Multiplexers The product uses the HC logic family. Number of bits: 4 bit The propagation delay time is 29 ns. Supply Voltage - Min: 2 V Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Multiplexer The height of the product is 1.58 mm. 9.9 mm long This product has Quad circuit. Texas Instruments is a trusted brand for quality electronics Data Selectors/Multiplexers. This product has a - 7.8 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 7.8 mA The Maximum Clock Frequency of this product is 28 MHz. 2 V to 6 V operating supply voltage range Encoders, Decoders, Multiplexers & Demultiplexers product type 40 of 100 Logic ICs as subcategory 1. 0.004998 oz of Unit Weight

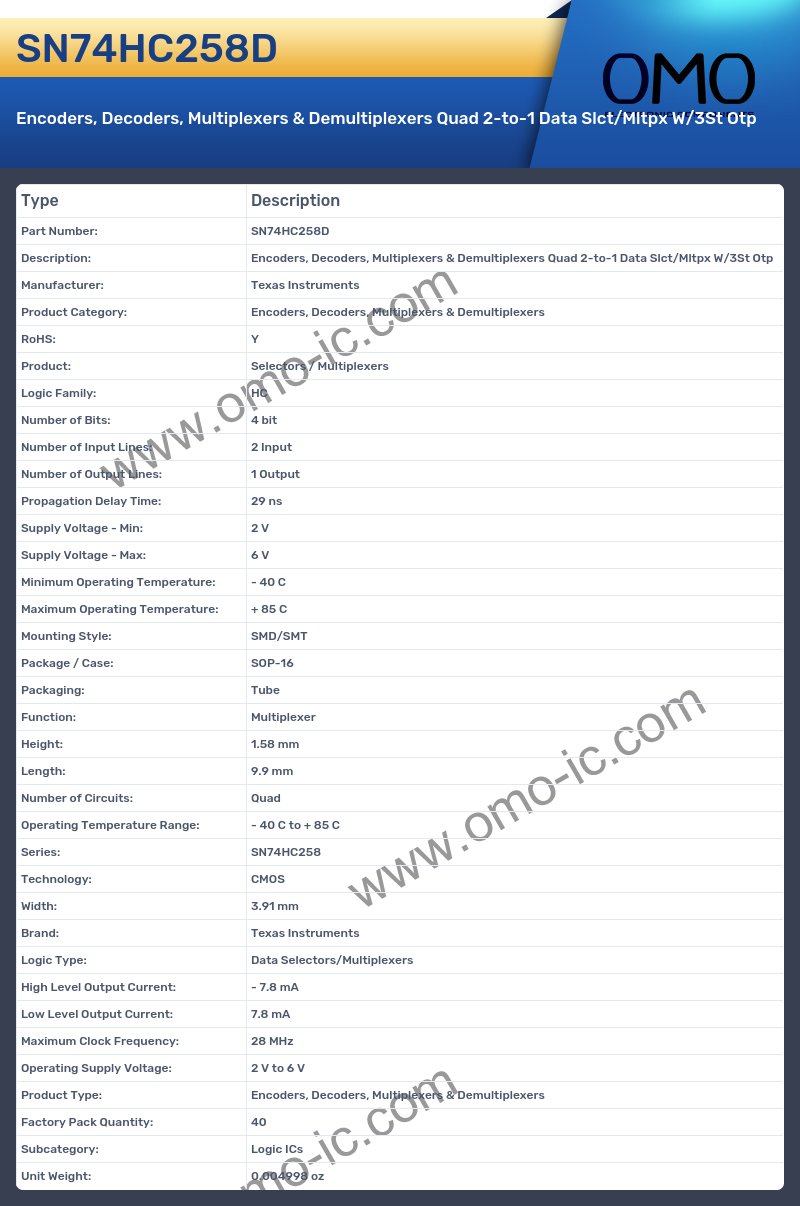

SN74HC258D Image

SN74HC258D Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Selectors / Multiplexers
• Logic Family: HC
• Number of Bits: 4 bit
• Number of Input Lines: 2 Input
• Number of Output Lines: 1 Output
• Propagation Delay Time: 29 ns
• Supply Voltage - Min: 2 V
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Packaging: Tube
• Function: Multiplexer
• Height: 1.58 mm
• Length: 9.9 mm
• Number of Circuits: Quad
• Operating Temperature Range: - 40 C to + 85 C
• Series: SN74HC258
• Technology: CMOS
• Width: 3.91 mm
• Brand: Texas Instruments
• Logic Type: Data Selectors/Multiplexers
• High Level Output Current: - 7.8 mA
• Low Level Output Current: 7.8 mA
• Maximum Clock Frequency: 28 MHz
• Operating Supply Voltage: 2 V to 6 V
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 40
• Subcategory: Logic ICs
• Unit Weight: 0.004998 oz
