SN74HC684N

SN74HC684N Overview

This product is manufactured by Texas Instruments. The comparator type of this product is Magnitude/Identity for versatile use. Number of bits: 8 bit A = B, A > B logic function The output type is Active Low. Supply Voltage - Max: 6 V Supply Voltage - Min: 2 V Maximum supply current: 8 uA The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The propagation delay time is 275 ns, 55 ns, 47 ns. The product can operate at a maximum temperature of Through Hole. PDIP-20 package/case type is utilized by this product. Tube packaging for easy dispensing Digital Comparators Texas Instruments is a trusted brand for quality electronics 2 V to 6 V operating supply voltage range Polarity type: Inverting Logic Comparators product type 20 of 100 Logic ICs as subcategory 1. 0.042297 oz of Unit Weight

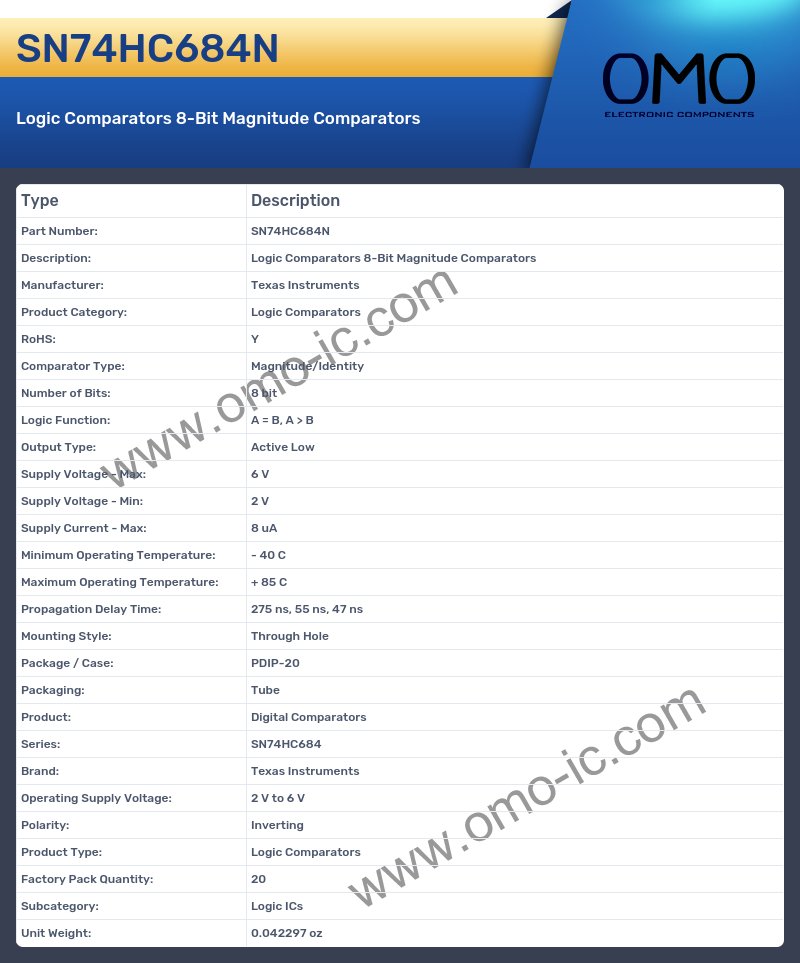

SN74HC684N Image

SN74HC684N Specifications

• Manufacturer: Texas Instruments
• Product Category: Logic Comparators
• RoHS: Y
• Comparator Type: Magnitude/Identity
• Number of Bits: 8 bit
• Logic Function: A = B, A > B
• Output Type: Active Low
• Supply Voltage - Max: 6 V
• Supply Voltage - Min: 2 V
• Supply Current - Max: 8 uA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Propagation Delay Time: 275 ns, 55 ns, 47 ns
• Mounting Style: Through Hole
• Package / Case: PDIP-20
• Packaging: Tube
• Product: Digital Comparators
• Series: SN74HC684
• Brand: Texas Instruments
• Operating Supply Voltage: 2 V to 6 V
• Polarity: Inverting
• Product Type: Logic Comparators
• Factory Pack Quantity: 20
• Subcategory: Logic ICs
• Unit Weight: 0.042297 oz
