SN74LS04NE4

SN74LS04NE4 Overview

This product is manufactured by Texas Instruments. This product has 6 Circuit circuit. The product uses the LS logic family. Bipolar. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of Through Hole. PDIP-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Inverter TTL input type The output type is CMOS. Texas Instruments is a trusted brand for quality electronics This product has a - 0.4 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 8 mA 5 V operating supply voltage range Inverters product type The propagation delay time is 22 ns. 25 of 100 Logic ICs as subcategory 1. 0.032734 oz of Unit Weight

SN74LS04NE4 Image

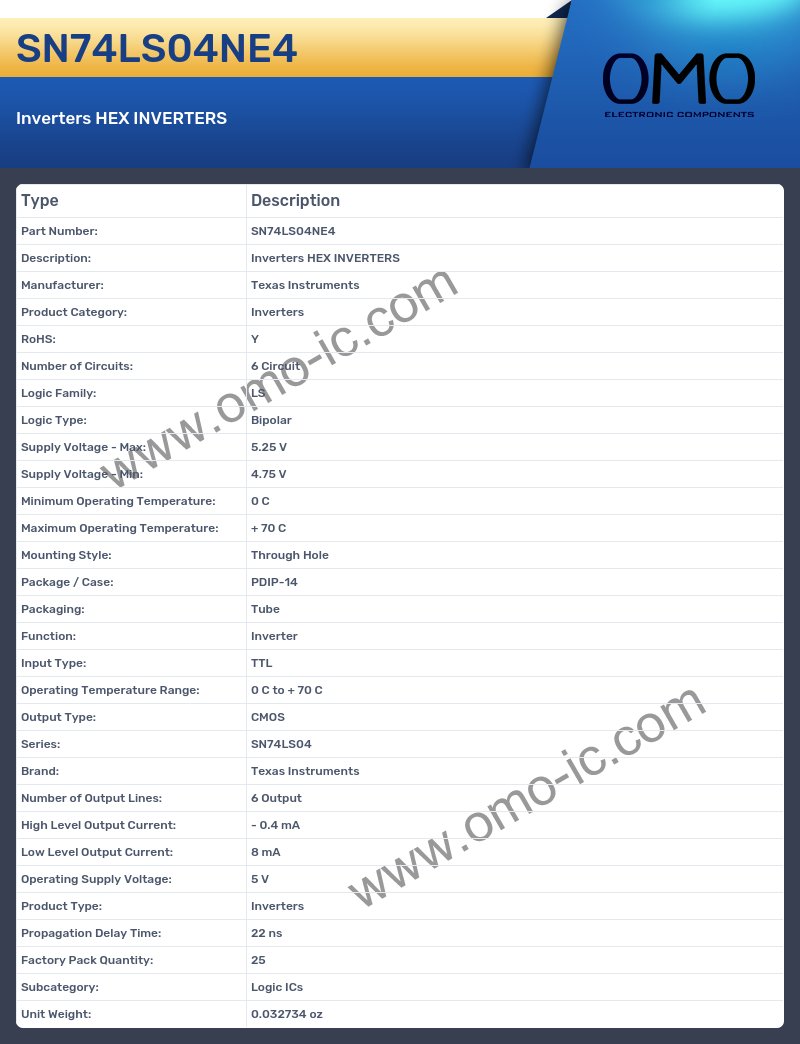

SN74LS04NE4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Inverters
• RoHS: Y
• Number of Circuits: 6 Circuit
• Logic Family: LS
• Logic Type: Bipolar
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: Through Hole
• Package / Case: PDIP-14
• Packaging: Tube
• Function: Inverter
• Input Type: TTL
• Operating Temperature Range: 0 C to + 70 C
• Output Type: CMOS
• Series: SN74LS04
• Brand: Texas Instruments
• Number of Output Lines: 6 Output
• High Level Output Current: - 0.4 mA
• Low Level Output Current: 8 mA
• Operating Supply Voltage: 5 V
• Product Type: Inverters
• Propagation Delay Time: 22 ns
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.032734 oz
